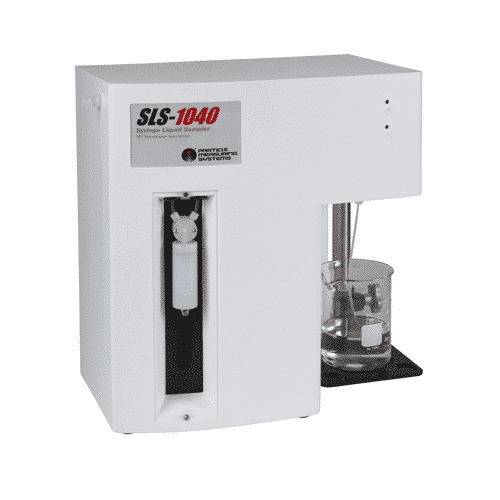

PMS SLS 1040 Syringe Liquid Particle Sampler



Features

  • Proven Particle Measuring Systems’ Chem20,  UltraChem or LiQuilaz particle counters
  • Menu-driven data collection – 1, 5, 10 and 25 ml
  • Wetted materials compatible with corrosive chemicals
  • Compact design with on-board particle sensor
SLS-1040 Spec

The PMS SLS 1040 Syringe Sampling System enables safe, accurate and efficient testing of particle levels in liquid laboratory samples and process chemicals. Precision is achieved through accurate control of a syringe and simple flow-path for delivering liquid samples from a sample vessel or chemical container directly to the particle sensor. The SLS 1040 features an on-board UltraChem 40 particle sensor, which uses PMS patented NanoVision Technology® to measure particles as small as 40 nm in a wide variety of process chemicals. It is ideal for applications where efficient sampling of chemicals or lab samples is required, with the sampler contributing zero contamination to the chemical sample. The system consists of a selectable syringe for either corrosive or non-corrosive liquids, a selectable particle sensor for different sizing sensitivities, and batch sampling software.

Syringe Liquid Particle Sampler: PMS SLS 1040

Features Syringe Liquid Particle Sampler: PMS SLS 1040

  • Proven Particle Measuring Systems’ Chem20,  UltraChem or LiQuilaz particle counters
  • Menu-driven data collection – 1, 5, 10 and 25 ml
  • Multiple syringe sizes—1, 5, 10 and 25 ml
  • Wetted materials compatible with corrosive chemicals
  • Compact design with on-board particle sensor

Benefits Syringe Liquid Particle Sampler: PMS SLS 1040

  • Precisely measures particles as small as 40 nm
  • Versatile system allows selection of various particle sensors and syringe sizes
  • Eliminates sample waste with a small sample volume
  • Cost-effective
  • Easily configurable

Specifications

Syringe size 1, 5, 10 (standard) 25 ml
Sampling mode Vacuum, batch
Minimum sample size 0.4 ml, 20 ml/min
Wetted surface materials Glass, Teflon® (all Teflon optional)
Power 100 – 240 V, 50 – 60Hz
Sample volume Adjustable using software interface
Maximum pressure 25 psi
Dimensions (l, w, h) 38.1 x 22.0 x 43.4 cm, including particle counter
Weight 19.1 kg  including particle counter
Environment Temperature 10 – 30 ºC
Humidity Non-condensing
Particle Sensor UltraChem 40
Particle Size Range 40 – 125 nm
Channels 40, 70, 125 nm
Flow rate 5 ml/min
Sampled % 40% Monitor mode; 20% Spectrometer mode and High-Scatter
Maximum concentration 2,500 particles/ml, Monitor mode and Spectrometer mode 15,000 particles /ml, High-Scatter mode
Zero count < 20 counts/l
Sample temperature 50 – 122 °F (10 – 50 ºC)
Calibration Materials used are traceable to US National Institute of Standards and Technology (NIST) and Japanese Institute of Standards (JIS).
Software SamplerSight

Applications

  • Diverse applications in semiconductor and process chemical manufacturing
  • Incoming quality measurement of process chemicals
  • Point-of process monitoring on process tools
  • Testing and qualification of chemical components
  • Outgoing chemical qualification testing
  • Mechanical parts cleanliness testing
