SLS Syringe Liquid Particle Sampler

SPECIFICATION

PMS SLS Syringe Liquid Particle Sampler

Particle Sampler Name	SLS-20	SLS-1040	SLS-1100	SLS-1200	SLS-1300	SLS-1500	SLS-2000
Particle Counter	Chem 20	UltraChem 40	UltraChem 100	LiQuilaz S02	LiQuilaz S03	LiQuilaz S05	LiQuilaz E15 or E20P
Minimum Particle Size	20 nm	40 nm	100 nm	0.2 μ	0.3 μ	0.5 μ	100 μm
Particle Size Range	20 to 100 nm	40 to 125 nm	100 to 500 nm	0.2 to 2.0 μm	0.3 to 3.0 μm	0.5 to 20 μm	1.5 to 125 μm (E15) 2.0 to 125 μm (E20P)
# Size Channels	4	4	4	15	15	15	15
Instrument Flow Rate	35 ml/min	5 ml/min	20 ml/min
Sample Flow Rate	0.45 ml/min	2 ml/min	6 ml/min	20 ml/min	20 ml/min	20 ml/min	20 ml/min

Introduction PMS SLS Syringe Liquid Particle Sampler

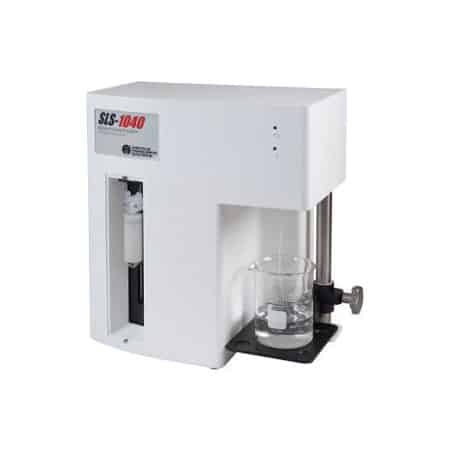

The SLS Syringe Liquid Particle Sampler from Particle Measuring Systems uses a precision syringe and simple flow-path for delivering chemical samples from a sample vessel or chemical container, directly to the particle sensor. It is ideal for applications where precise, small-volume particle batch sampling is required, where the sampler device cannot contribute contamination to the chemical sample.

The system consists of a selectable syringe for either corrosive or non-corrosive liquids, a selectable particle counter for different sizing sensitivities, and batch-sampling software.

Particle Measuring Systems (PMS) sets the standard for cleanroom contamination monitoring. With more than 60 patents, PMS create the technology that enables you to make fact-based decisions, improve process yield and comply with changing regulatory requirements.

Benefits

Cost-Effective

• Small sample volume minimizes waste of expensive product
• Automated system saves time and money
• Compatibility with both corrosive and non-corrosive liquids

Easy-to-Use

• Menu-driven data collection
• Recipes can be created and retrieved for repeatable system operation with different operators
• Password security maintains system integrity

Versatile

• Ability to support a wide range of applications
• Programmable particle size thresholds
• Extremely accurate measurements
