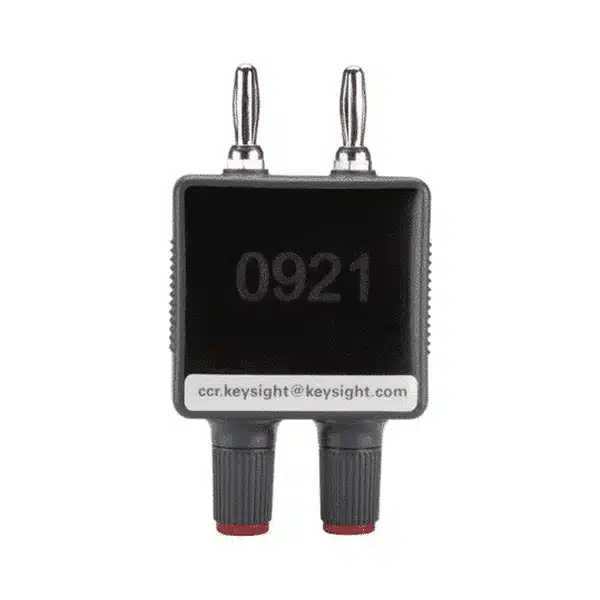

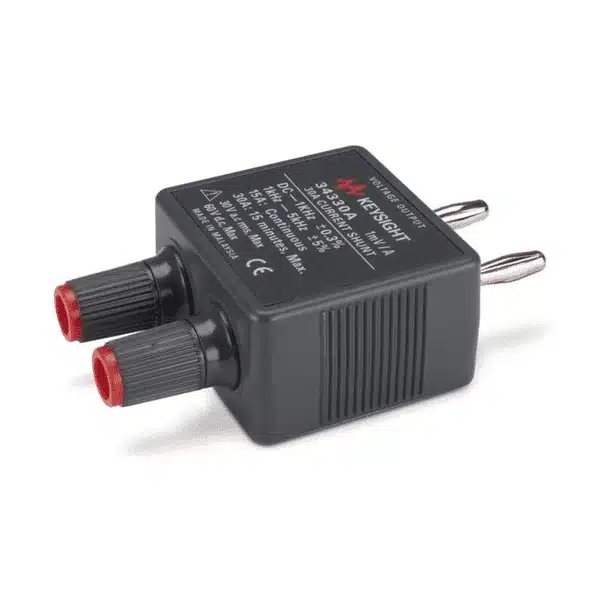

The Keysight 34330A Current Shunt is a precision 0.001 ohm resistor, encapsulated in a plastic case and surrounded by epoxy for safety and durability. It delivers an output of 1 mV per ampere, enabling safe and accurate current measurement when used with Keysight’s high-performance digital multimeters (DMMs).

Key Features

• Current range: 15 A continuous.

• Maximum current: 30 A for up to 15 minutes.

• Maximum voltage: 30 Vac / 60 Vdc.

• Accuracy: 0.3% from DC to 1 kHz, 5% from 1 kHz to 5 kHz at 10 A.

• Termination: Dual banana plugs for easy connection.

Highlights

• Compact and rugged design with epoxy insulation.

• Provides 1 mV output for every 1 A of current passing through.

• Ensures high accuracy for both DC and AC current measurements.

• Compatible with Keysight DMMs including 34460A, 34461A, 34401A, 34405A, 34410A, 34411A, L4411A, and 3458A.

Technical Specifications

• Resistance: 0.001 Ω.

• Current: 15 A continuous, 30 A maximum (15 minutes).

• Voltage limit: 30 Vac, 60 Vdc.

• Accuracy: 0.3% (DC – 1 kHz), 5% (1 kHz – 5 kHz at 10 A).

• Connection: Dual banana plugs.

Applications

• Safe and precise current measurement in electronic circuits.

• Ideal for laboratory testing, industrial applications, and performance monitoring.

• Supports R&D, manufacturing, and maintenance workflows.
