SPECIFICATIONS TWEEZERS CONTACTS TEST FIXTURE – KEYSIGHT 16334A
- Designed for impedance evaluation of Surface Mount Devices (SMDs).
- Adapted for SMDs with a minimum size of 1.6 mm (L) × 0.8 mm (W).
- Facilitates easy holding and precise measurement of small DUTs (Device Under Test).
General technical data |
|
| Terminal connector | 4-Terminal Pair, BNC |
| DUT connection | 2-Terminal |
| Cable length | Approximately 1 meter (BNC connectors to tweezers) |
| Weight | 290g |
| Frequency range | 5 Hz to 15 MHz |
| Maximum voltage | ±42 V peak (AC + DC) |
| Operating temperature | 0°C to 55°C |
| Maximum DUT size | Width up to 10 mm |
| Additional error (Impedance) | Proportional Error Formula: ±2 × (f/10)², where f is in MHz |
| Applicable instruments | E4980A/AL, E4981A, E4990A |
| Accessories included | Compensation Block: P/N 16334-60001 (Qty: 1)
Operating Note: P/N 16334-90000 (Qty: 1) |

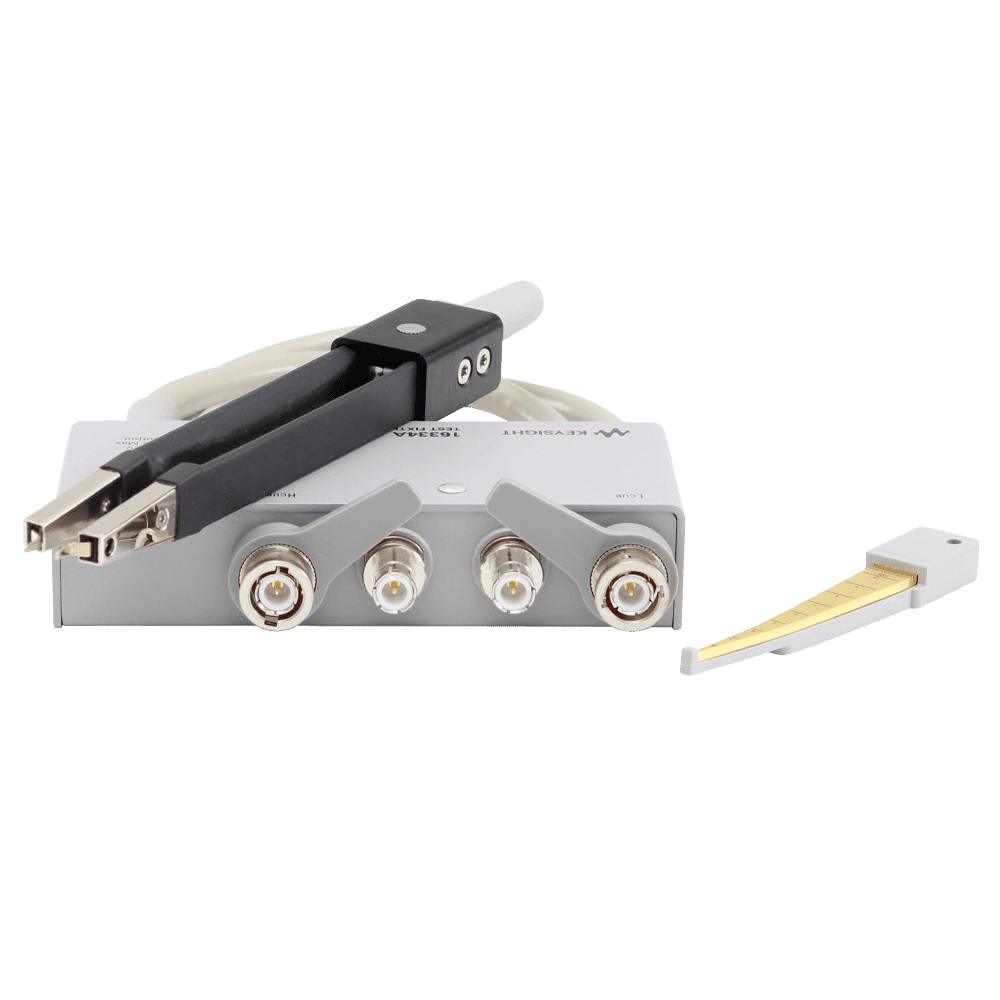

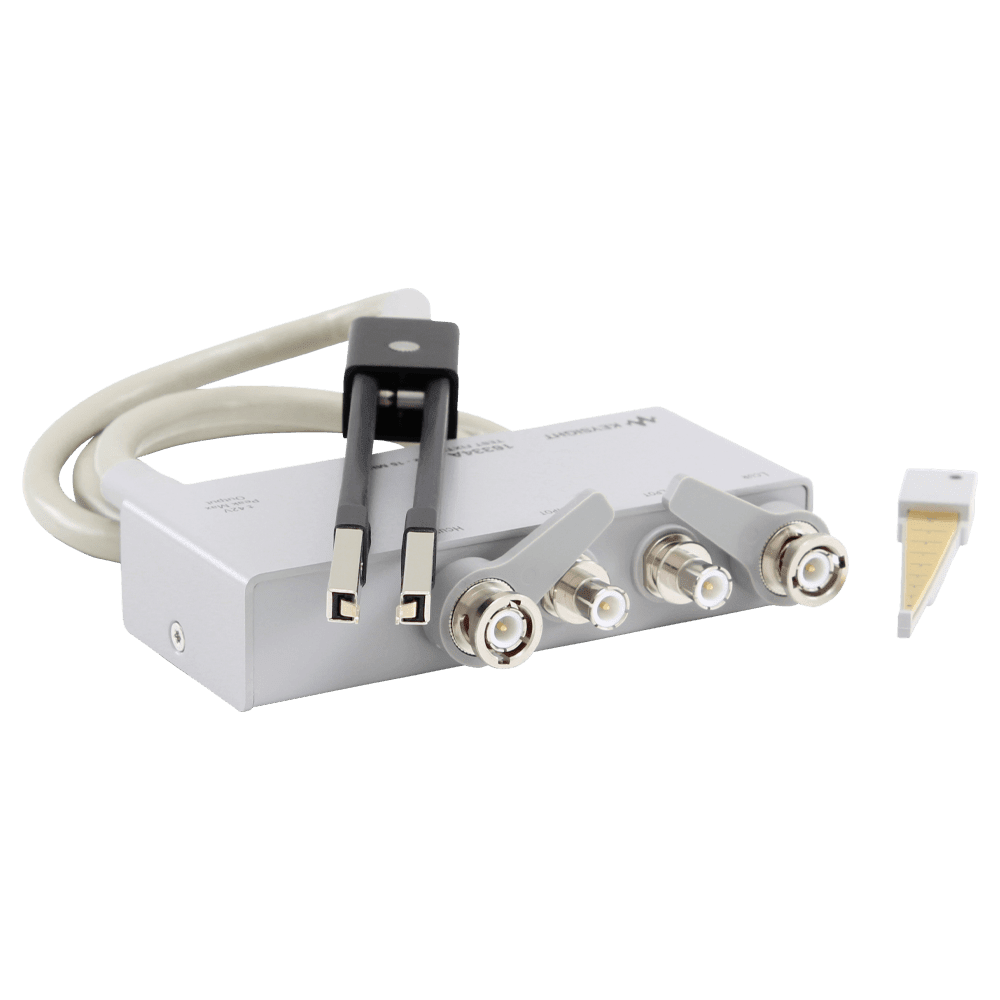

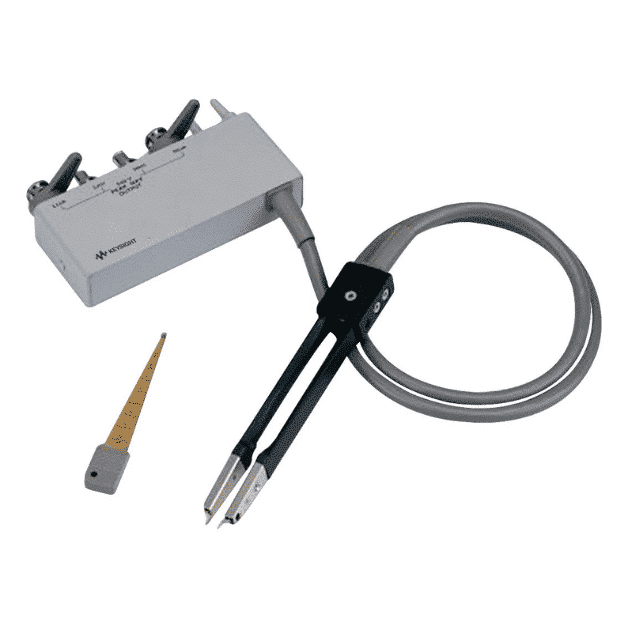

Keysight 16334A: Tweezers Contact Test Fixture
The Keysight 16334A is a specialized accessory designed for precise impedance measurements of Surface Mount Devices (SMDs). With a user-friendly design, this fixture is ideal for evaluating small components, such as resistors, capacitors, and inductors, in high-precision LCR meter applications.
Applications
What is the Keysight 16334A used for?
🔧
Genuine Keysight accessories
⚙️
Connection and installation
🏭
Laboratory and production use
Frequently asked questions
Keysight 16334A — frequently asked questions
Where can I buy a genuine Keysight 16334A in Vietnam?
Techmaster Electronics is an authorised Keysight Technologies distributor in Vietnam. We supply the Keysight 16334A — Tweezers Contacts Test Fixture as 100% genuine equipment with CO/CQ documents, engineering advice and full lifecycle support. Call +84 908 173 345 for a quote.
How much does the Keysight 16334A cost?
The 16334A is configured to order, so options and accessories change the price and Techmaster quotes each requirement individually. Send your requirement at https://techmaster.com.vn/en/contact/ or call +84 908 173 345 for a same-day quote.
Is the Keysight 16334A covered by warranty and calibration?
Yes. The Keysight 16334A — Tweezers Contacts Test Fixture carries the Keysight manufacturer warranty, and Techmaster provides ISO/IEC 17025 calibration, repair and scheduled maintenance in Vietnam.
Request a quote for the Keysight 16334A — Tweezers Contacts Test Fixture
Techmaster engineers advise on the configuration and quote the same day.
