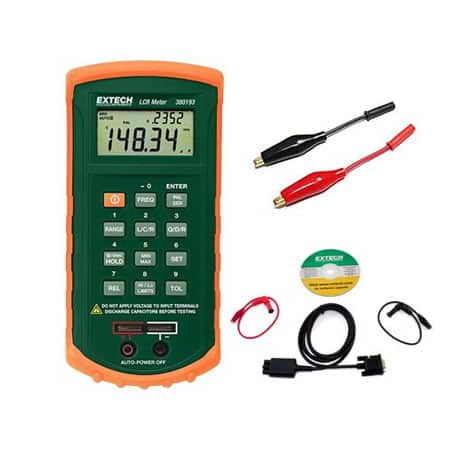

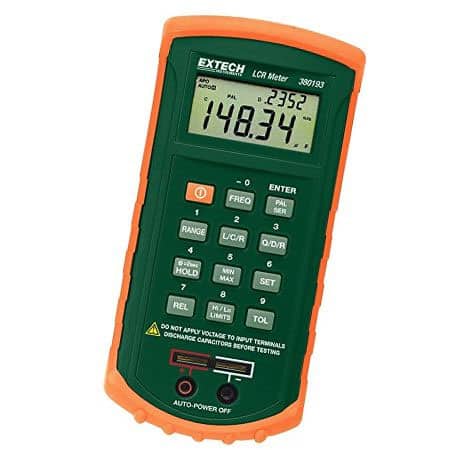

EXTECH 380193 PASSIVE COMPONET LCR METER

Features

– Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R)
– Secondary parameter of Q (quality), D (dissipation) or R (resistance)
– Set Hi/Lo limits using absolute values or percentage limits
– Parallel or Series equivalent circuit
– Automatic blown fuse indication

SPECIFICATIONS EXTECH 380193 PASSIVE COMPONET LCR METER

+ Inductance:

2000.0µH, 20.000mH, 200.00mH, 2000.0mH 20.000H, 200.00H, 2000.0H, 10000H

Basic Accuracy: ±(0.7%rdg)

+Capacitance:

2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2000.0µF

Basic Accuracy:  ±(0.7%rdg)

+ Resistance: 20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ

Basic Accuracy:  ±(0.5%rdg)

+ DF (with C): 0 to 0.9999

Basic Accuracy: ±(0.7%rdg)

+ Q: 0 to 9999

Basic Accuracy: ±(1.2%rdg)

+ Test Freq. : 120Hz and 1kHz

+ Dimensions/Weight: 7.56×3.58×2.1″ (19.2×9.1×5.25cm) / 12.87oz (365g)

Introduction Extech 380193 Passive Componet LCR Meter

The Extech 380193 Passive Component LCR meter is a favorite in manufacturing facilities for quality control and product testing, as well as for individual users that need to validate and sort a range of components in custom projects. Unlike the capacitance and resistance capabilities of a digital multi-meter, this affordable yet robust meter provides added accuracy and the advantage of inductance. For circuit testing, the LCR meter enables you to test a range of important parameters such as the quality factor, dissipation factor, and resistance of your components with both series and parallel modes.

Features

– Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R)
– Secondary parameter of Q (quality), D (dissipation) or R (resistance)
– Set Hi/Lo limits using absolute values or percentage limits
– Parallel or Series equivalent circuit
– Automatic blown fuse indication
– Built-in test fixture or use external test leads

Extech Brand

Extech Instruments was established in 1971, it has focused on Test and Measurement tools built for the professionals, tradesperson and DIY’ers. When it comes to tools that help prevent, identify and troubleshoot problems in a plethora of applications; whether it’s electrical, mechanical, maintenance, safety or environmental applications, Extech products are trusted by the professionals and are put to the test every day. With over 45 years, Extech is renowned as one of the largest manufacturers and suppliers of innovative, quality handheld test, measurement and inspection tools in the world. Sold in over 100 countries around the world, Extech’s success is supported by a far-reaching network of dedicated and knowledgeable distributors who introduce new users to Extech every day.
