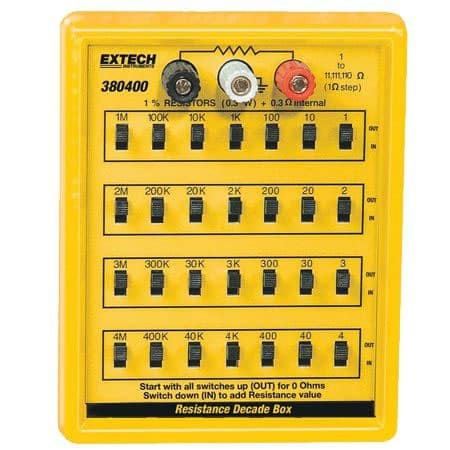

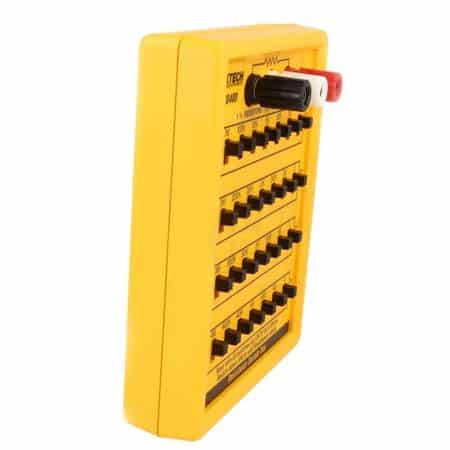

EXTECH 380400 RESISTANCE DECADE BOX

FEATURES

– Durable construction

– Case may be grounded separately

– 3 binding posts permit isolated substitutions

– 1% Resistance substitution from 1 to 11,111,110Ω

– Seven decade ranges of resistance



SPECIFICATIONS EXTECH 380400 RESISTANCE DECADE BOX

Resistance ranges: 1 to 11,111,110Ω in 1Ω steps
Internal Resistance: 0.3Ω
Power: 0.3W Resistors
Connection: Three (3) binding posts
Accuracy: 1%
Operating conditions: Temperature: 32 to 122°F (0 to 50°C) / Humidity: < 80%RH
Dimensions/Weight: 5.79 x 4.61 x 1.3″ (14.7 x 11.7 x 3.3cm) / Approx. 0.69 lbs. (312g)

Introduction Extech 380400 Resistance Decade Box

Resistance box with 7 decade ranges of resistance

The Extech 380400 Resistance Decade Box is very popular for product design testing and calibration because it can be substituted into a circuit and function in the place of any component with a standard value easily. Alternatively, it can be used to identify the best value for circuit operation then read that value from the switches. Then, a resistor of the size indicated by the decade box switches can be put into the circuit. Extech 380400 Resistance Decade Box

FEATURES Extech 380400

– Durable construction

– Case may be grounded separately

– 3 binding posts permit isolated substitutions

– 1% Resistance substitution from 1 to 11,111,110Ω

– Seven decade ranges of resistance

– Values can be set in 1Ω increments

Extech Brand

Extech Instruments was established in 1971, it has focused on Test and Measurement tools built for the professionals, tradesperson and DIY’ers. When it comes to tools that help prevent, identify and troubleshoot problems in a plethora of applications; whether it’s electrical, mechanical, maintenance, safety or environmental applications, Extech products are trusted by the professionals and are put to the test every day. With over 45 years, Extech is renowned as one of the largest manufacturers and suppliers of innovative, quality handheld test, measurement and inspection tools in the world. Sold in over 100 countries around the world, Extech’s success is supported by a far-reaching network of dedicated and knowledgeable distributors who introduce new users to Extech every day.
