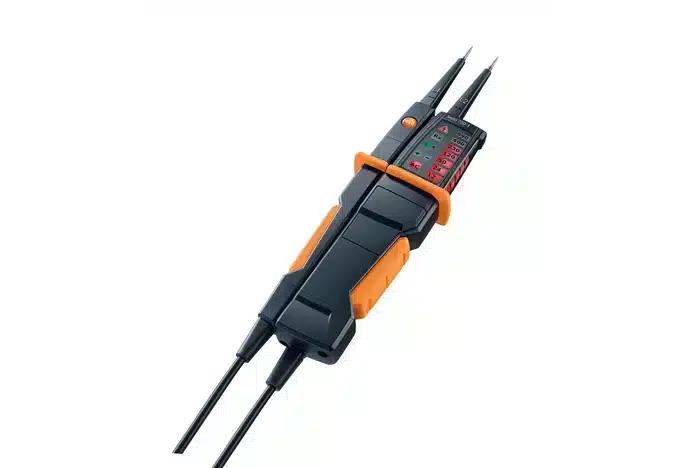

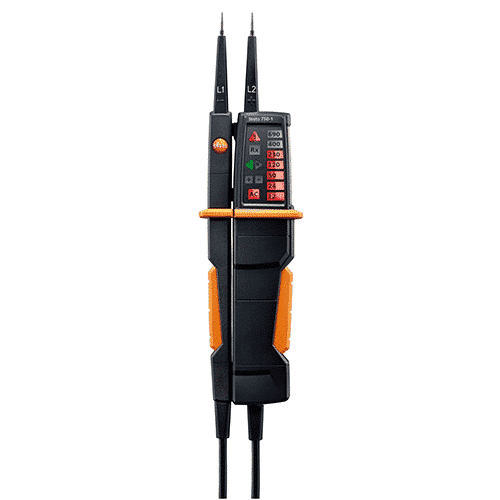

Testo 750-1 – Digital Voltage Tester

Call for Price

Features

  • Patented all-around viewable LED voltage bar indication
  • 0 to 690 V AC/DC voltage measurement
  • Polarity detection for VDC measurements
  • Phase sequence test for determining motor rotation

SPECIFICATIONS Testo 750-1 – Digital Voltage Tester

DC Voltage

Measuring range12 to 690 V
Accuracyaccording to DIN EN 61243-3:2011



AC Voltage

Measuring range12 to 690 V
Accuracyaccording to DIN EN 61243-3:2011



General Technical data

Operating humidity0 to 95 %rH
Weight8.11 oz. / 230 g
Dimensions10.6 x 2.6 x 1.4 in. / 270 x 65 x 35 mm
Operating temperature14.0° to 122.0 °F / -10 to +50 °C
Product colourBlack
Protection classIP64
StandardsEN 61243-3; EN 61326-1; EN 61010-1
Battery type2 AAA batteries
Storage temperature5.0° to 140.0 °F / -15 to +60 °C
Overvoltage CategoryCAT IV 600V; CAT III 1000V
AuthorizationsCSA; CE



Instrument Measurement Functions

Continuity testingYes
Display ligthingYes
Rotating magnetic field testingYes
Single pole phase testingNo
Measuring point illuminationNo

Introduction Testo 750-1 – Digital Voltage Tester

The Testo 750-1 Digital Voltage Tester is the first instruments to include all-around viewable LED voltage indication, ensuring visibility from any angle and making it easy to read measurements in various lighting conditions. The device is equipped with a bar LED voltage display, clearly indicated voltage levels for quick and accurate readings.

Designed for durability and reliability, the Testo 750-1 meets CAT III 1000 V CAT IV 600 V safety standards and can withstand tough working environments. Audible and visual alerts enhance safety and usability, making this voltage tester a versatile and reliable tool for professionals. It features vibration feedback when voltage is detected, adding an extra layer of safety and confirmation for the user.

Compliant with the latest safety standards, the Testo 750-1 – Digital Voltage Tester provides reliable protection against electrical hazards. This versatile tester is suitable for a wide range of electrical testing applications, from residential to industrial settings.
