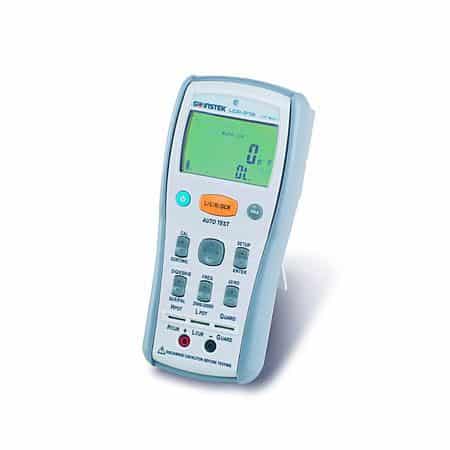

GW Instek LCR-915 HANDHELD LCR METER

FEATURES

– 20,000/2,000 Counts Dual Display
– Test Frequency : 100/120Hz/1/10/100kHz
– Auto LCR Mode for DUT Measurements
– 0.2% Basic Accuracy
– Measurement Parameters : L,C,R,D,Q,ESR,θ,DCR

SPECIFICATIONS GW Instek LCR-915 HANDHELD LCR METER

TEST FREQUENCY:

100Hz/120Hz/1kHz Selectable

FULL SCALE:

Main Display 20,000/2,000 counts selectable
Sub Display 2,000 counts

INDUCTANCE:

Range 20μH ~ 20kH depends on the selected test frequency
Best Accuracy +(0.2% rdg + 2 digits)
Resolution 0.001μH ~ 0.001kH depends on selected range

CAPACITANCE:

Range 20pF ~ 20mF depends on the selected test frequency
Best Accuracy +(0.2% rdg + 2 digits)
Resolution 0.001pF ~ 0.001mF depends on selected range

RESISTANCE:

Range 20Ω ~ 200MΩ depends on the selected test frequency
Best Accuracy +(0.2% rdg+ 2 digits)
Resolution 0.001Ω ~ 0.01MΩ depends on selected range

DC RESISTANCE:

Range 200Ω ~ 200MΩ
Best Accuracy +(0.2% rdg+ 2 digits)
Resolution 0.01Ω ~ 0.01MΩ depends on selected range

QUALITY FACTOR (Q):

Range 0.000 ~ 999
Accuracy 2 x (main parameter accuracy)
Best Resolution 0.001

DISSIPATION FACTOR (D):

Range 0.000 ~ 999
Accuracy 2 x (main parameter accuracy)
Best Resolution 0.001

PHASE ANGLE (θ):

Range -90° ~ 90°
Accuracy +(0.2% rdg+ 5 digits)
Resolution 0.1°

MEASUREMENT CIRCUIT:

Parallel or Series selectable

AUTO LCR MODE:

Automatically identifies and measures the DUT when the meter is switch on

SORTING MODE:

+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable

OTHER FUNCTIONS:

Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar

DISPLAY:

LCD mono display

INTERFACE:

USB

POWER SOURCE:

AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)

DIMENSIONS & WEIGHT:

95(W) × 207(H) × 52(D) mm, Approx. 630g

Introduction GW Instek LCR-915 HANDHELD LCR METER

The LCR-916/915/914 (GW Instek LCR-915) are smart, convenient and fully-functional dual display handheld LCR meters. The test frequency extends as high as 100 kHz/10kHz, providing greater flexibility to test a wider range of components.The LCR-916/915/914 use a dual 20,000 /2,000 count display. The 20,000 count display is used for displaying the primary parameters such as capacitance, inductance and resistance as well as DC resistance measurement, and a 2,000 count display is for secondary parameters such as Q, D, ESR and RP measurement. Secondary measurements can also be combined with the primary measurement while the primary measurement is still being taken.

The LCR-916/915/914 provide two measurement methods, 2 wire and 5 wire measurement. The LCR-916/915/914 also come with a host of various standard or optional accessories to assist the testing a number of different component types. The meters also include handy functions such as data hold, tolerance sorting, zero mode and Min/Max (for LCR-916 only).

The meter’s USB interface can be used to log data to a PC using the LCR900 software and the DC 5V is provided to power the meter.
With the LCR-916/915/914, you can perform quick and basic LCR measurements with precision at an affordable price.

FEATURES

– 20,000/2,000 Counts Dual Display
– Test Frequency : 100/120Hz/1/10/100kHz
– Auto LCR Mode for DUT Measurements
– 0.2% Basic Accuracy
– Measurement Parameters : L,C,R,D,Q,ESR,θ,DCR
– Parallel/Series Testing Mode
– Sorting Mode for Quality Control
– 2Wire or 5Wire Measurement Available
– Data Hold and Zero Mode Supported
– Max/Min
– Auto Range, Auto Backlit
