Digital Multimeter – Keysight 34460A

Call for Price

More features

Histogram and bar chart on 4.3-inch color graphical display ease monitoring and speed up statistical analysis
Measure with confidence, with 75 ppm basic DCV accuracy
Test low power devices with low DC current measurement range from 100 µA to 3 A

Description
Additional information

SPECIFICATIONS DIGITAL MULTIMETER – KEYSIGHT 34460A

General technical data
DC Voltage	Range: 100 mV to 1,000 V Accuracy: ± (0.0040% + 0.0060% of reading)
AC Voltage (True RMS)	Range: 100 mV to 750 V Frequency Range: 3 Hz to 300 kHz Accuracy: ± (1.00% + 0.02% of reading) for low frequencies (3 Hz–5 Hz)
DC Current	Range: 100 µA to 3 A Accuracy: ± (0.010% + 0.02% of reading)
AC Current (True RMS)	Range: 100 µA to 3 A Frequency Range: 3 Hz to 5 kHz Accuracy: ± (0.10% + 0.04% of reading)
Resistance	Range: 100 Ω to 100 MΩ Accuracy: ± (0.0040% + 0.0060% of reading) Supports 2-wire and 4-wire measurements
Frequency/Period	Frequency Range: 3 Hz to 300 kHz Accuracy: ± (0.03% of reading)
Capacitance	Range: 1 nF to 100 µF Accuracy: ± (0.50% + 0.50% of reading)
Continuity	Continuity: Audible alert for resistance < threshold (typically 1 kΩ)
Diode Testing	Diode: Test voltage up to 5 V
Display and Features	Color Graphical Display: Includes histogram, bar meter, and traditional numeric views for easy data interpretation. Resolution: 6½ digits (22-bit equivalent), ensuring highly detailed readings. Data Logging: Memory for up to 1,000 readings, ideal for trend analysis or long-term monitoring.
Connectivity	Standard: USB for quick data transfer and PC connectivity. Optional: LAN/LXI Core for network integration; GPIB for integration with legacy systems.

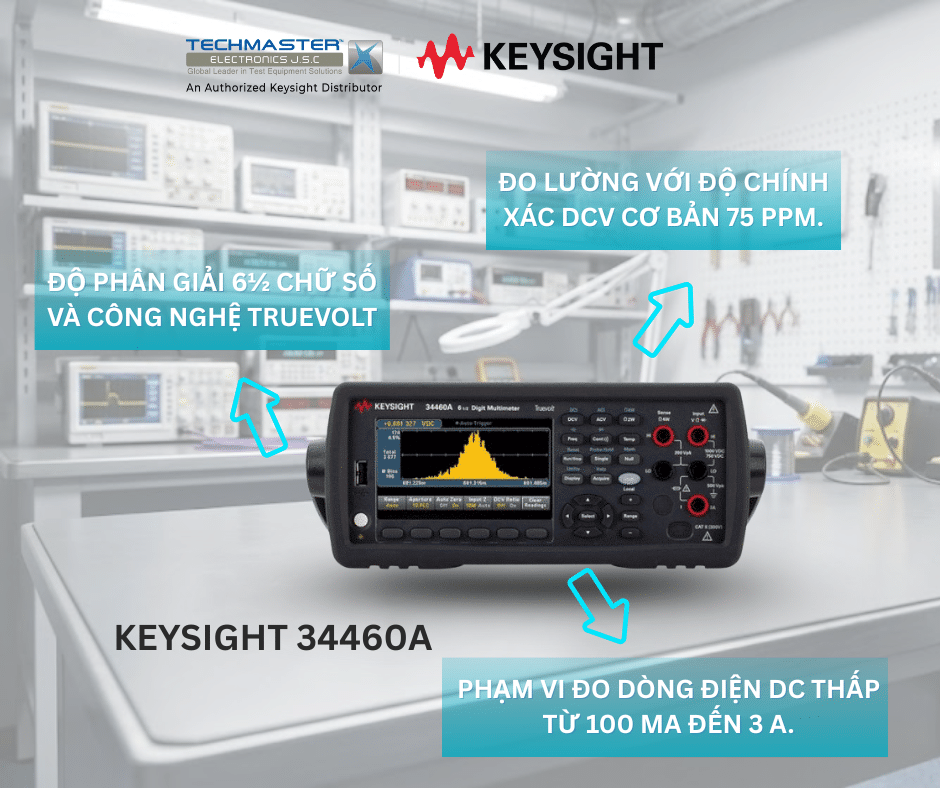

Keysight 34460A: High-Performance Digital Multimeter

The Keysight 34460A Digital Multimeter is a versatile, high-precision instrument designed to deliver reliable measurements for a wide range of applications in electronics testing and development. Featuring a 6½-digit resolution and Truevolt technology, it provides exceptional accuracy and confidence in results by compensating for real-world signal noise and error sources. Its measurement capabilities include DC/AC voltage, DC/AC current, resistance (2- and 4-wire), frequency, capacitance, continuity, and diode testing. With a basic DC voltage accuracy of 75 ppm and a wide range of supported input signals, the Keysight – 34460A is well-suited for demanding test scenarios.

Digital Multimeter - KEYSIGHT 34460A — Digital Multimeter – KEYSIGHT 34460A

Frequently asked questions

Keysight 34460A — frequently asked questions

Where can I buy a genuine Keysight 34460A in Vietnam?

Techmaster Electronics is an authorised Keysight Technologies distributor in Vietnam. We supply the Digital Multimeter – Keysight 34460A as 100% genuine equipment with CO/CQ documents, engineering advice and full lifecycle support. Call +84 908 173 345 for a quote.

How much does the Keysight 34460A cost?

The 34460A is configured to order, so options and accessories change the price and Techmaster quotes each requirement individually. Send your requirement at https://techmaster.com.vn/en/contact/ or call +84 908 173 345 for a same-day quote.

Is the Keysight 34460A covered by warranty and calibration?

Yes. The Digital Multimeter – Keysight 34460A carries the Keysight manufacturer warranty, and Techmaster provides ISO/IEC 17025 calibration, repair and scheduled maintenance in Vietnam.
