ANRITSU AM-8001K Compact Thermologger

SPECIFICATIONS ANRITSU AM-8001K COMPACT THERMOLOGGER

Channel: 6ch : ANP connector (Miniature Plug)

Input Type: Thermocouple Input : Type E, K (typeJ,T,R(option))

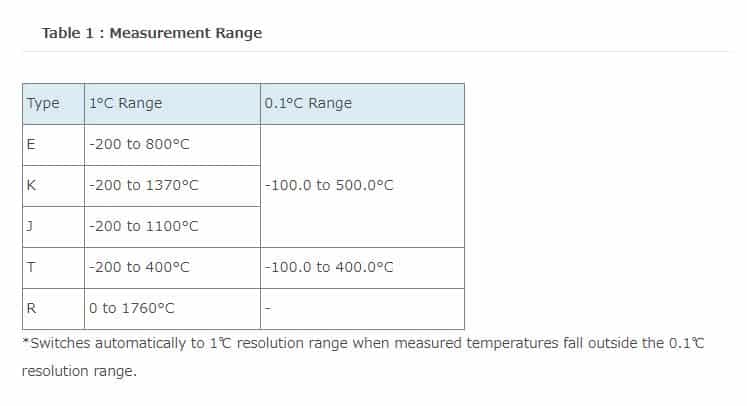

Measurement Range: (Table 1)

Resolution: 0.1°C/ 1°C (fixed)

Measurement Accuracy: (Table 2)

Memory capacity: 60,000 data

High-speed interval: 0.1 second

Interface: USB1.1 MINI-B

Dimensions / Weight: 92(W) × 155(H) × 36(D) mm [Protruded parts excluded] / approx.380g [Including dry batteries]

Reference junction compensation accuracy: ±0.3°C at 25°C ± 10°C

Temperature coefficient: ±(0.01% / °C) of measurement range except 25°C ± 10°C

Time interval:

Standard model : 1 second to 99 minutes 59 seconds

High-speed mode (6ch.model) : 0.10 seconds to 0.99 seconds

Signal source resistance:

Temperature

standard mode : 500Ω or less

high-speed mode : 100Ω or less

Safe excitation voltage:

Between input pins on same channels : ±10V DC (temperature), ±30V DC (voltage)

Between input pins on adjacent channels : ±60V AC

Llinearlizer: Digtal Linearlizer method (compliant with IEC 60584-1 (2013))

Display: Graphic liquid crystal display, 128×64 dots (55×27mm)

Environment operational/Environment storage:

0 to 40°C, 20 to 80%RH (Without Dew)

-10 to 50°C, 10 to 90%RH (Without Dew)

Power supply: 4 AA Alkaline batteries or AC adapter (Option accessories)

Supplied accessories: 4 AA Alkaline batteries, Test report, Manual, Softcase, Communications cable (USB)

Compatible standards: CE Marking, RoHS

Introdcution ANRITSU AM-8001K Compact Thermologger

Model AM – 8000 series thermometers are compact handheld units that store measurement data in memory. Data held in memory can then be transferred to a PC via dedicated software for later analysis or other use. Anritsu AM-8001K of model AM – 8000 series thermometers. It has Interface is USE or RS-232C. Memory capacity of Anritsu AM-8001K is 60000 data for the 6ch model. It is measurement equipment has high accuracy.

Features

– Interface is USE or RS-232C

– Memory capacity: 60000 data for the 6ch model

– High accuracy

– Easy to read measured value by LCD display

– Simultaneous display of measured value

– Easy operation by 12 keys

Optional accessories

– Special data analysis software AMS-850

– AC adapter: AD-115-500-HR-R (for AC115V) / AD-220-500-HR-R (for AC220V)

– Carrying case AM-CC2

– Heat-resistant box for 6ch model TB-6002
