Mitutoyo Portable Surface Roughness Measurement – Surftest SJ-500/SV-2100 Series

SURFTEST SJ-500/SV-2100, a surface roughness tester that offers benchtop or portable operation and the choice of data analysis by PC or an easy-to-use dedicated processor.

Features

Easy-to-operate joystick. Fine positioning of the stylus required for small-hole measurements can be easily performed using the manual fine-adjustment knobs.
Supports 43 types of analysis parameters, complying with surface roughness standards such as ISO 1997 and JIS 2001. Also capable of various fine-contour analyses.
A ceramic guideway, inherently free from wear and deterioration with age, is employed to maintain the traversing straightness of the drive unit (X-axis) indefinitely. Maintenance-free design, since anti-corrosion treatment is not required for ceramic.

Description
Additional information

Mitutoyo Portable Surface Roughness Measurement – Surftest SJ-500/SV-2100 Series

Product Information

Manufacturer: Mitutoyo

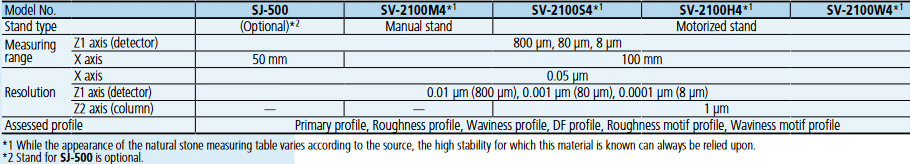

Model: SJ-500, SV-2100M4, SV-2100H4, SV-2100S4, SV-2100W4

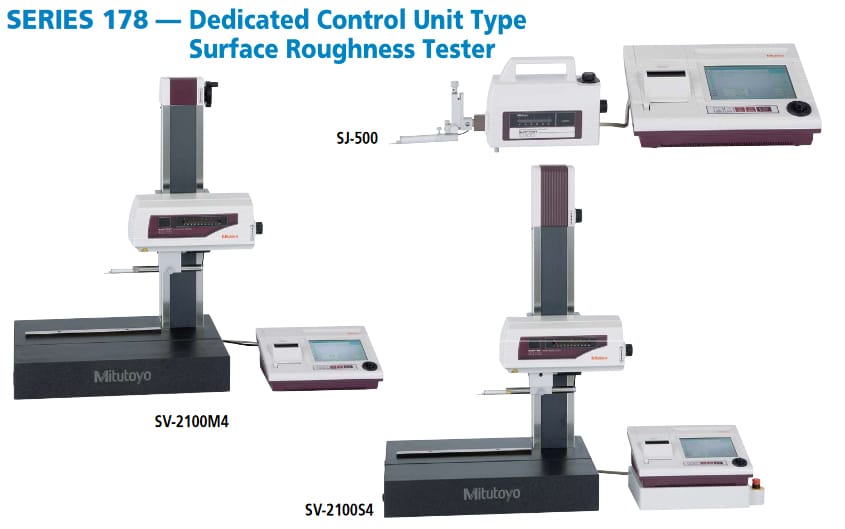

High precision and high-performance type surface roughness tester with a dedicated control unit, offering a user-friendly display and simple operation.

Product Description

Equipped with a 7.5-inch, color TFT LCD, large color icons, and touch panel controls, the display unit is easy to read and simple to operate.
A built-in joystick on the control unit allows quick and easy positioning. The manual adjustment knob allows fine positioning of a small stylus for measuring small holes.
In addition to the roughness parameters compliant with ISO/JIS/ANSI/VDA surface roughness standards, contour analysis is also available.
