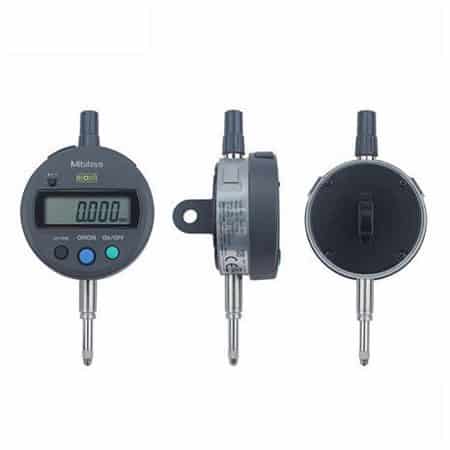

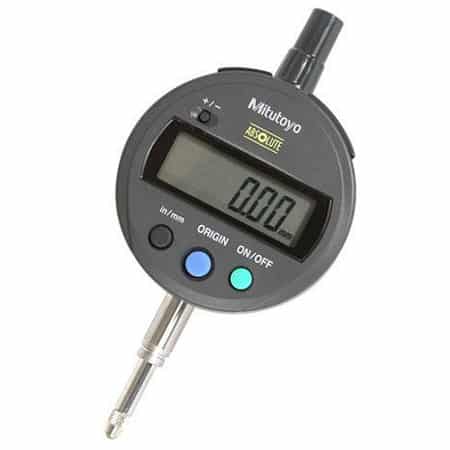

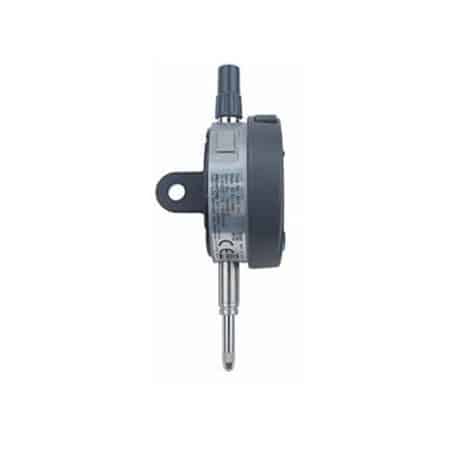

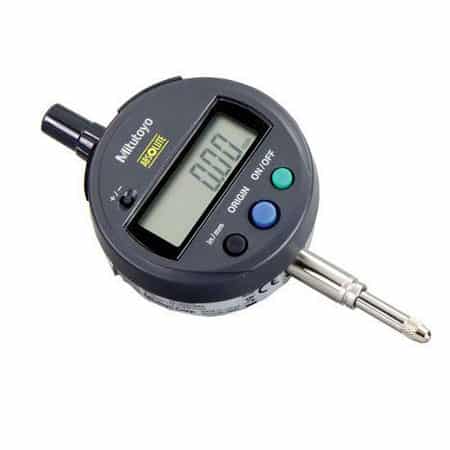

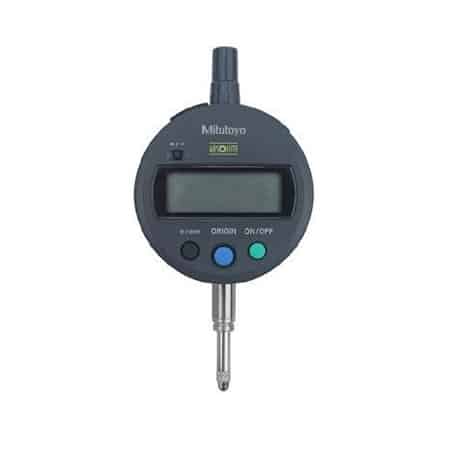

Digital Indicator ID-S Inch/Metric, 0,5″, 0,0005″, Lug Back 543-782

The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
You can access all functions by using the large, user-friendly
buttons on the front of the indicator.
Large character height of 9 mm provides good readability.
Exceptional battery life.

Brand	Insize

Review Digital Indicator ID-S Inch/Metric, 0,5″, 0,0005″, Lug Back 543-782

5 0% | 0 review

4 0% | 0 review

3 0% | 0 review

2 0% | 0 review

1 0% | 0 review

Write a review

Review Digital Indicator ID-S Inch/Metric, 0,5″, 0,0005″, Lug Back 543-782

There are no reviews yet.

No comments yet

Range:	0.5″/12.7 mm
Digital step:	0,0005″/0,01 mm
Repeatability:	0,0005″/0,01 mm
Inch-Metric:	Inch/Metric
Range:	0,5″ Inch
Max. Permissible Error (Total Range):	0,001″/0,02 mm
Hysteresis:	0,001″/0,02 mm
Data output:	Yes
H MPE (Hysteresis):	0,001″/0,02 mm
Type:	EN ISO Standard
Mass:	150 g
Measuring force:	≤ 1,5 N
Scale:	Capacitance type, ABSOLUTE linear encoder
Max. response speed:	Unlimited
Stem Ø:	9,52 mm
Contact point:	Carbide ball, thread M 2.5 x 0.45 mm
Alarm:	Low voltage, counting value composition error
Power supply:	1 battery SR-44
Battery life:	approx. 18000 hours (0.001 mm type), approx. 20000 hours (0.01 mm type)
Display:	LCD, character height 9 mm
Protection:	IP42
Max. response speed:	Unlimited
Delivered:	Including 1 battery
Counting direction switchable:	Yes
Low voltage alarm:	Yes
ORIGIN (ABS-Zero):	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Digital/Analog:	Digital
