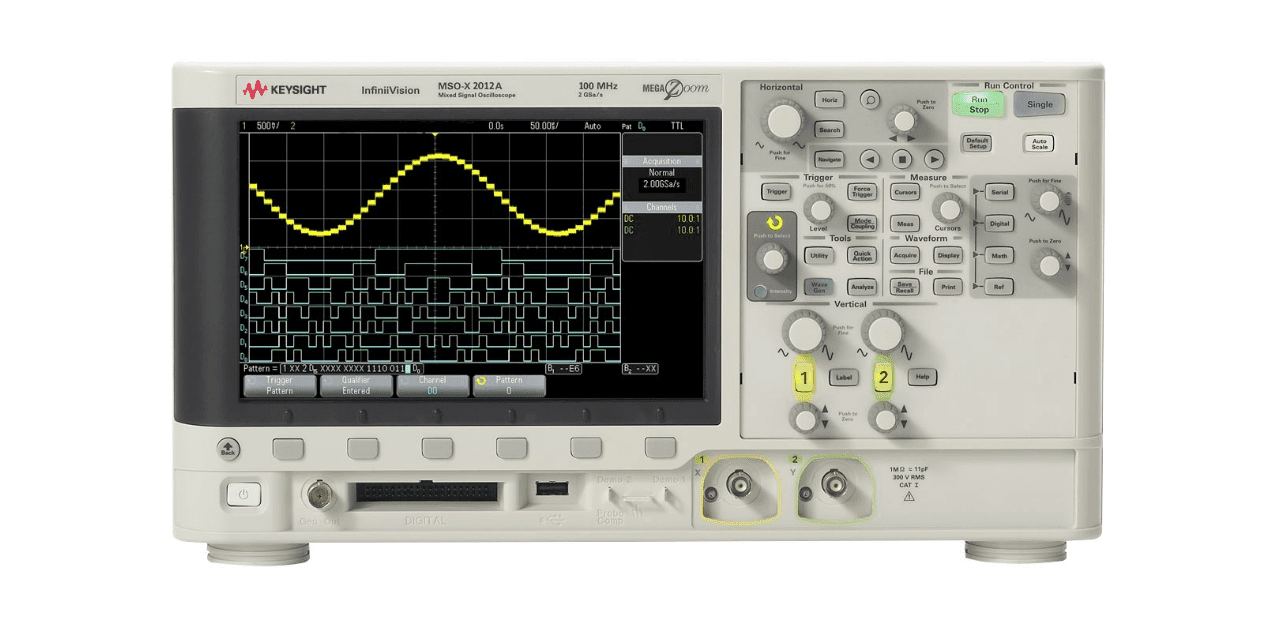

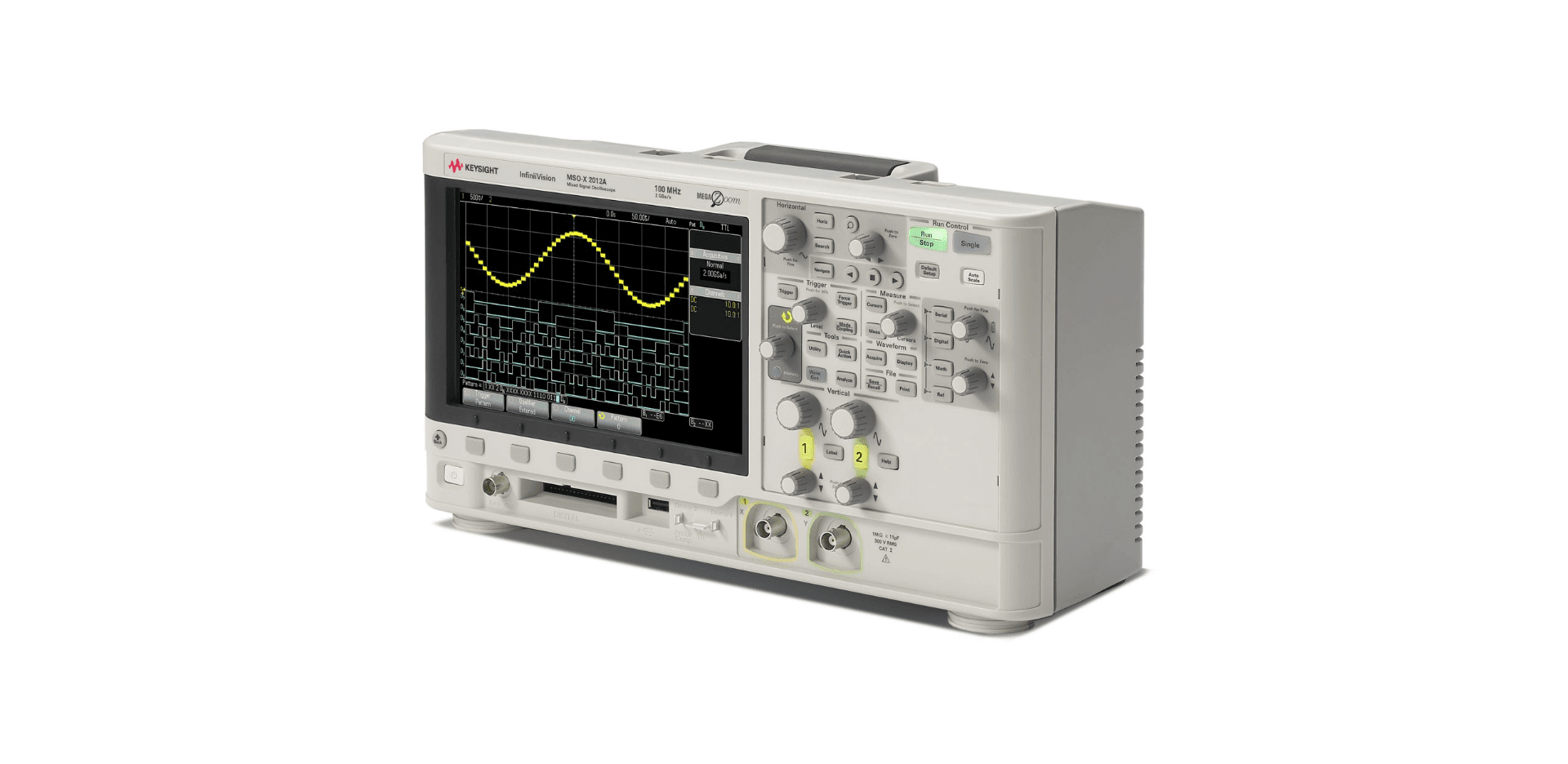

SPECIFICATIONS MSOX2012A Keysight Oscilloscope
General technical data: |
|
| Bandwidth: | 100 MHz |
| Calculated rise time (10 to 90%): | ≤ 3.5 ns |
| Maximum sample rate: | 2 + 8 |
| Maximum sample rate: | 2 GSa/s half-channel interleaved, 1 GSa/s per channel |
| Maximum memory depth: | 1M points per channel (standard) |
| Display size and type: | 8.5-inch WVGA with 64 levels of intensity grading |
| Waveform update rate: | 200,000 waveforms per second |
| WaveGen: | License for built-in 20 MHz function generator |
| LAN/VGA module: | Plug-in module to support LAN and VGA connectivity |
| GPIB module: | Plug-in module to support GPIB connectivity |
| Embedded software package: | I2C, SPI, and UART (RS232/422/485) serial trigger & decode, plus Mask Limit Testing |
| Automotive software package: | CAN, LIN serial trigger & decode, plus Mask Limit Testing (CAN mask files available to download) |
| Ultimate bundle software package: | I2C, SPI, and UART, CAN, and LIN serial trigger & decode, plus Mask Limit Testing |
Vertical system analog channels: |
|
| Input coupling: | AC, DC |
| Input sensitivity range: | 1 mV/div to 5 V/div |
| Input impedance: | 1 MΩ ± 2% (11 pF) |
| Vertical resolution: | 8 bits (measurement resolution is 12 bits with averaging) |
| Dynamic range: | ± 8 đơn vị từ trung tâm màn hình |
| Maximum input voltage: | 135 Vrms; 190 Vpk |
Horizontal system analog channels: |
|
| Time base range: | 5 ns/div to 50 s/div |
| Time base accuracy: | 25 ppm ± 5 ppm per year (aging) |
| Time base delay time range: | Pre-trigger: Greater of 1 screen width or 200 μs (400 μs in interleaving mode) Post-trigger: 1 s to 500 s |
| Channel-to-channel deskew range: | ± 100 ns |
Acquisition modes: |
|
| Normal | |
| Peak detect: | Capture glitch as narrow as 500 ps at all timebase settings |
| Averaging: | Select from 2, 4, 8, 16, 64… to 65,536 |
| High resolution mode: | 12 bits of resolution when ≥ 20 µs/div |
| Segmented: | Re-arm time= 19 µs (minimum time between trigger events) |
WaveGen – built-in function generator (Specifications are typical): |
|
| Waveforms: | Sine, square, pulse, triangle, ramp, noise, DC |
| Sine: | Frequency range: 0.1 Hz to 20 MHz |
| Square wave/pulse: | Frequency range: 0.1 Hz to 10 MHz |
| Ramp/triangle wave: | Frequency range: 0.1 Hz to 100 kHz |
| Noise: | Bandwidth: 20 MHz (typical) |
| Frequency: | Sine wave and ramp accuracy: 130 ppm (frequency < 10 kHz); 50 ppm (frequency > 10 kHz) Square wave and pulse accuracy: [50+frequency/200] ppm (frequency < 25 kHz); 50 ppm (frequency ≥ 25 kHz) Resolution: 0.1 Hz or 4 digits, whichever is larger |
| DC offset: | Range: ± 2.5 V into Hi-Z; ± 1.25 V into 50 ohms Resolution: 100 μV or 3 digits, whichever is larger Accuracy: ± 1.5% of offset setting ± 1.5% of amplitude ± 1 mV |
| Trigger output: | Trigger output available on Trig out BNC |
Waveform math: |
|
| Operators: | Add, subtract, multiply, divide, FFT, Ax + B, Square, Absolute, Common Log, Natural Log, Exponential, Base 10 Exponential, LP Filter, HP Filter, Magnify, Measurement Trend, Chart Logic Bus (Timing or State) |
| FFT: | Windows: Hanning, flat top, rectangular Blackman-Harris – up to 64 kpts resolution |
The Keysight MSOX2012A oscilloscope offers a 100 MHz bandwidth, a sampling rate of 2 GSa/s, and extended memory up to 1 Mpts. With powerful analysis tools, a user-friendly interface, and fast waveform update rates, this device is ideal for electronics, telecommunications, and automation applications. The MSOX2012A meets the needs of both students and professionals with its signal decoding capabilities and various connectivity options.
Measurement Functions of the Keysight MSOX2012A Oscilloscope
The Keysight MSOX2012A oscilloscope stands out with its sampling rate of up to 2 GSa/s and memory of 1 Mpts per channel. This enables you to capture and analyze complex signals with high accuracy and detail.
User-Friendly and Intuitive Design:
Equipped with a large color touchscreen, the Keysight DSOX2012A simplifies operation and waveform monitoring. Features like Auto Scale and Zone Trigger further minimize setup time and optimize measurement processes. The intuitive interface, with recognizable icons, allows users to quickly learn and efficiently use the device.
Powerful Analysis Tools:
The DSOX2012A oscilloscope offers a variety of powerful analysis tools, including automatic measurements, FFT analysis, and digital signal decoding capabilities. With the ability to save and analyze data directly on the device, you can easily check and assess signal quality, identify faults, and optimize circuit designs. The capability to export data and waveform images also makes it convenient for reporting and sharing measurement results.
Equipped with WaveGen Functionality on the Oscilloscope:
The Keysight DSOX2012A oscilloscope is equipped with the WaveGen functionality. This feature provides the ability to generate and customize a wide range of waveforms, meeting the testing and analysis needs across various fields. WaveGen allows users to create and modify waveforms, from basic types like sine, square, and triangle to more complex forms. This capability aids in simulating real-world signals and analyzing system responses to different signal types.
The WaveGen feature is directly integrated into the interface of the DSOX2012A oscilloscope, making waveform creation and usage simple and convenient. Users can quickly access and adjust parameters right on the touchscreen, streamlining the process of generating and working with waveforms.
