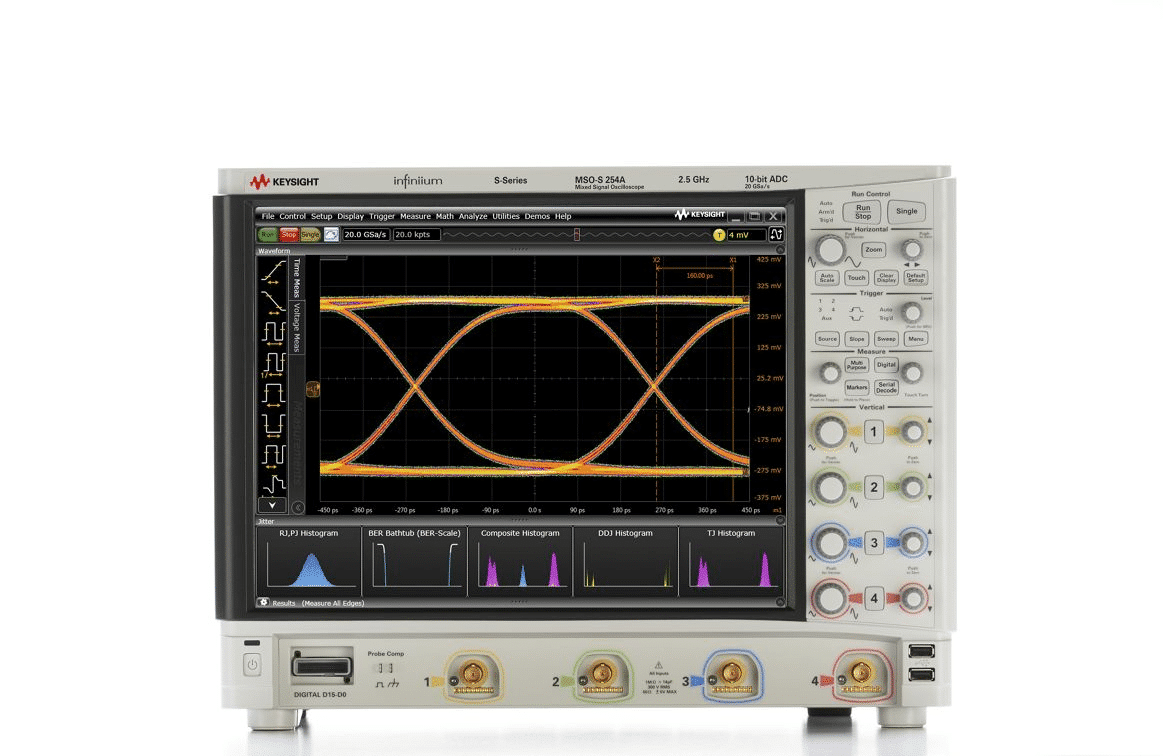

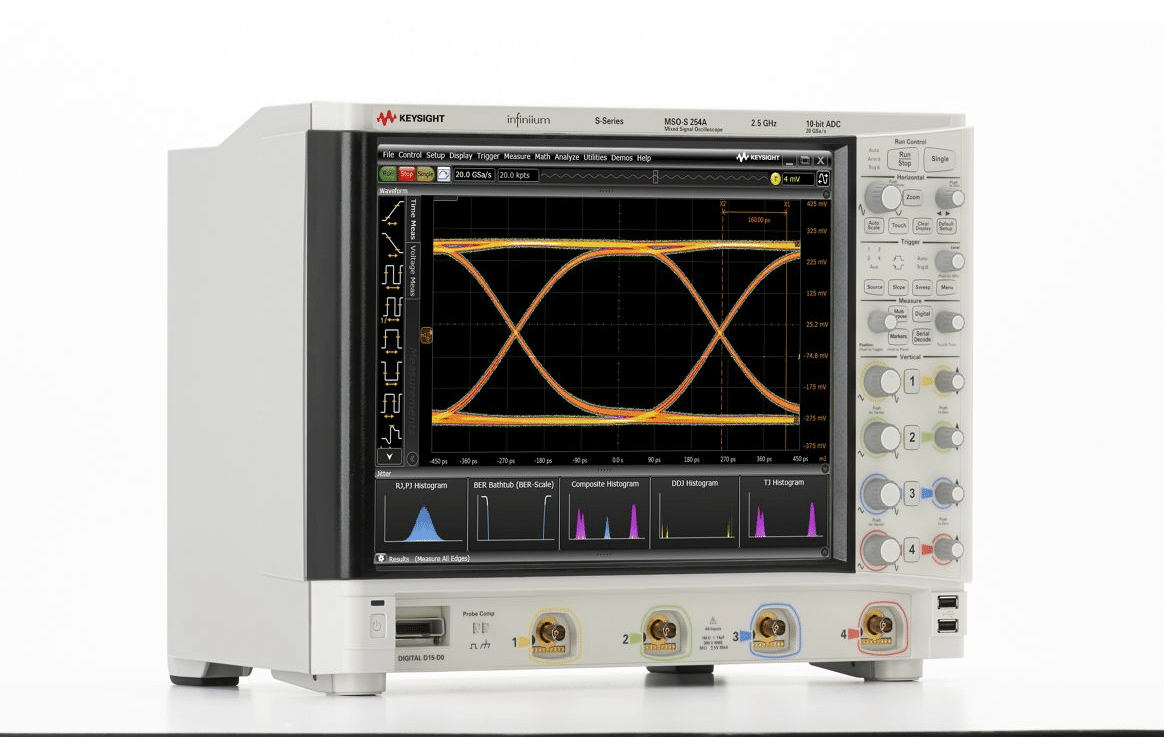

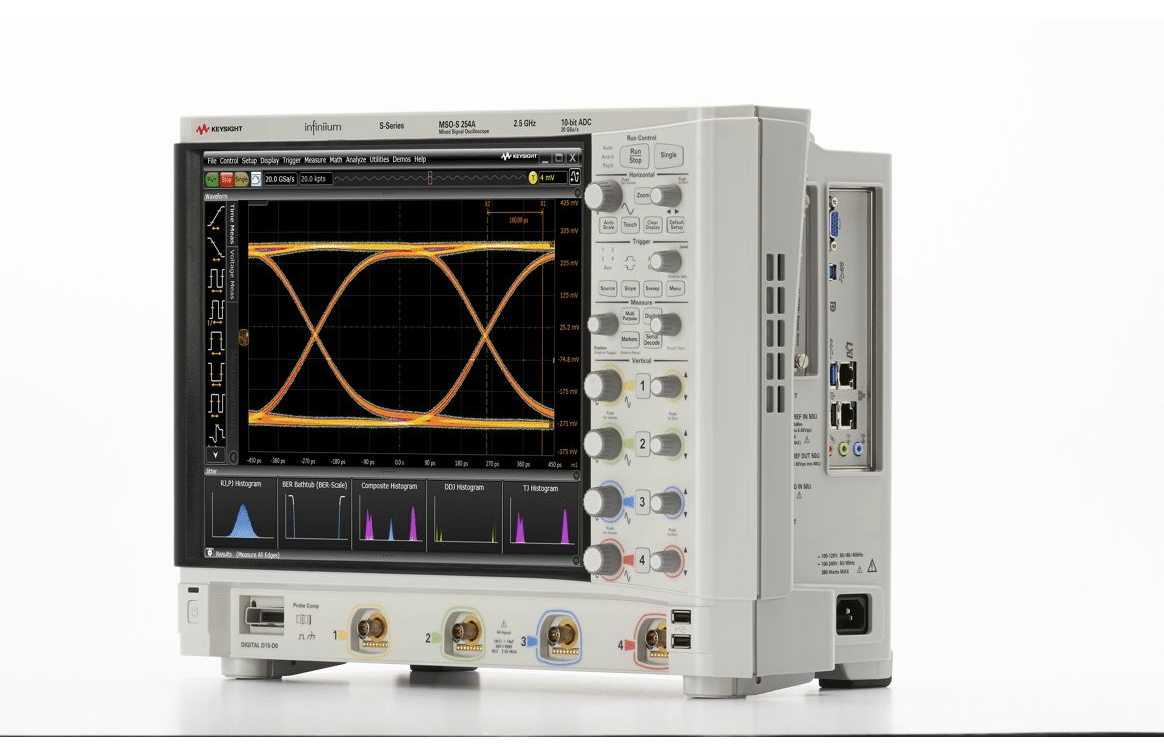

Keysight MSOS254A High-Definition Oscilloscope

Keysight MSOS254A High-Definition Oscilloscope – 2.5 GHz, 4 Analog + 16 Digital Channels

Precision, Performance, and Touchscreen Usability

The Keysight MSOS254A is a high-resolution oscilloscope in the S-Series lineup, offering 2.5 GHz bandwidth, 4 analog and 16 digital (MSO) channels, and industry-leading signal integrity. Featuring a 15-inch capacitive multi-touch display and a 10-bit ADC, this scope delivers deep insights into complex high-speed signals with ease and accuracy.

Highlights:

• 2.5 GHz bandwidth (upgradeable)

• 4 analog + 16 digital MSO channels

• Achieve up to 16-bit vertical resolution with advanced system architecture

• Capture long records with 20 GSa/s sampling rate and 100 Mpts/channel standard memory

• Excellent signal integrity with 8.1-bit average ENOB at full bandwidth

• 15″ capacitive touchscreen for intuitive control; SSD ensures fast boot and reliable operation

• Enhanced analysis with protocol decoding, compliance testing, and deep signal analysis software

What’s Included:

• 4 × N2873A 500 MHz passive probes

• Probe accessory pouch

• Keysight I/O Libraries Suite

• Localized power cord, front panel cover

• 8 GHz BNC calibration cable

• Keyboard and mouse

• User guide and programmer’s guide on oscilloscope drive

• 16-channel flying lead logic probe, MSO cable, MSO calibration fixture
