Insize 6801-1201 Magnetic V Blocks

Features

  • Hold cylindrical workpieces for inspection and machining
  • Not hardened
  • V groove on the top for large shafts
  • V groove on the bottom for small shaft
  • Not suitable for steel or iron surfaces, otherwise the magnetic force will be reduced

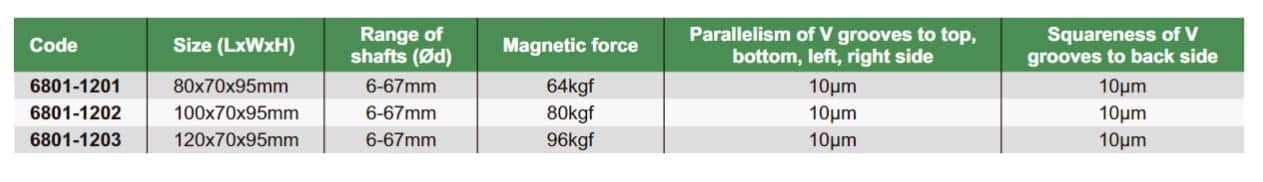

SPECIFICATIONS MITUTOYO 6801-1201 MAGNETIC V-BLOCKS

Spec đế từ khối V Insize 6801-1201

Introduction Insize 6801-1201 Magnetic V-Blocks

V-blocks are used in layout, positioning, and inspection applications to securely position cylindrical workpieces. Magnetic v-blocks have always-on or on/off magnets. The Insize 6801-1201 Magnetic V-Block can clamp cylindrical workpieces for precision inspection and machining, can be mounted vertical or horizontal. With a singular V-groove you have a clamping range up to 67mm. Powerful magnet in a precision-ground mild steel case. The on/off switch toggles both vees simultaneously.

Insize 6801-1201 Magnetic V-Blocks supplied in single piece. It isn’t hardened. It isn’t suitable for steel or iron surfaces, otherwise the magnetic force will be reduced. V blocks in many situations are supported but the clamp for extra security and the operator safety.

Features Insize 6801-1201 Magnetic V-Blocks

  • Hold cylindrical workpieces for inspection and machining
  • Supplied in single piece
  • Not hardened
  • V groove on the top for large shafts
  • V groove on the bottom for small shaft
  • Not suitable for steel or iron surfaces, otherwise the magnetic force will be reduced
  • Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
  • Squareness of V-groove to back side 0.01mm.

Insize Brand

Founded in 1995, Insize® is a dedicated supplier of measuring instruments to distributors. Insize provides measurement solutions for the Aerospace, Automotive, Defense, Electronics, Energy, General Manufacturing, Medical, Plastics and Rubber industries.To enable Insize to serve the world-wide market, Insize are setting up an Insize distribution network on a global basis. Insize ensure that wherever you are, Insize products have service and support that are within hands reach. Insize dedication to Quality, Innovation, Service and Value has created a worldwide demand for the INSIZE products.

Insize has the quality products made to international standards with full guarantee. Innovation by continually striving to improve and develop new products. Service and support to ensure you have trouble-free use of our products. High performance products at a good price.
