GW INSTEK AFG-3051 ARBITRARY FUNCTION GENERATOR

specificatiONS gw instek AFG-3051 Arbitrary Function Generator

– Waveforms

Sine, Square, Ramp, Pulse, Noise, DC, Sin(x)/x, Exponential Rise, Exponential Fall, Negative Ramp

– Arbitrary Waveforms

ARB Function: Built in

Sample Rate: 200 MSa/s

Repetition Rate: 100MHz

Waveform Length: 1M points

Amplitude Resolution: 16 bits

Non-Volatile Memory: Ten 1M waveforms(1)

User define Output Section: Any section from 2 to 1M points

User define Mark Output: Any section from 2 to 1M points

– Frequency Characteristics

Range: Sine, Square: 50MHz; Triangle, Ramp: 1MHz

– Resolution: 1uHz

Accuracy: Stability: ±1 ppm 0 to 50℃; ±0.3 ppm 18 to 28℃. Aging: ±1 ppm, per 1 year. Tolerance: ≦ 1 uHz

– Output Characteristics(2)

+ Amplitude

Range: 10 mVpp to 10 Vpp( into 50Ω); 20 mVpp to 20 Vpp(open-circuit)

Accuracy: ± 1% of setting ±1 mVpp (at 1 kHz,>10 mVpp)

Resolution: 0.1 mV or 4 digits

Flatness: ± 1% (0.1dB) <10 MHz; ± 2% (0.2 dB) 10 MHz to 50 MHz; ± 10% (0.9 dB) 50 MHz to 70 MHz; ± 20% (1.9 dB) 70 MHz to 80 MHz (sinewave relative to 1 kHz)

Units: Vpp, Vrms, dBm,

+ Offset

Range: ±5 Vpk ac +dc (into 50Ω); ±10Vpk ac +dc (Open circuit)

Accuracy: 1% of setting + 2 mV+ 0.5% of amplitude

+ Waveform Output

Impedance: 50Ω typical (fixed); > 10MΩ (output disabled)

Protection: Short-circuit protected; Overload relay automatically disables the main output

+ SYNC Output

Level: TTL-compatible into>1kΩ

Impedance: 50Ω nominal

– Sinewave Characteristics GW Instek AFG-3051

Harmonic Distortion(5): –60 dBc  DC～1 MHz, Ampl＜3 Vpp; –55 dBc  DC～1 MHz, Ampl＞3 Vpp; –45 dBc  1MHz～5 MHz, Ampl＞3 Vpp; –30 dBc  5MHz～80 MHz, Ampl＞3 Vpp

Total Harmonic Distortion: < 0.2%+0.1mVrms; DC to 20 kHz

Spurious (non-harmonic)(5): –60 dBc DC～1 MHz; –50 dBc 1MHz～20MHz; –50 dBc+ 6 dBc/octave 1MHz～80MHz

Phase Noise: ＜-65dBc typical 10MHz, 30 kHz band; ＜-47dBc typical 80MHz, 30 kHz band

– Square wave Characteristics

Rise/Fall Time: <8 nS(3)

Overshoot: < 5%

Asymmetry: 1% of period+1 ns

Variable Duty Cycle: 20.0% to 80.0% ≦ 25 MHz; 40.0% to 60.0% 25～50MHz; 50.0%(Fixed)  50～80MHz

Jitter: 0.01%+525ps ＜ 2 MHz; 0.1%+75ps ＞ 2 MHz

– Ramp Characteristics

Linearity: ＜ 0.1% of peak output

Variable Symmetry: 0% to 100%

– Pulse Characteristics

Period: 20ns～ 2000s

Pulse Width: 8ns～ 1999.9s

Minimum Pulse Width: 8nS when FREQ≦50MHz; 5% of setting period when FREQ≦6.5MHz

Resolution: 1nS when FREQ≦50MHz; 1% of setting period when FREQ≦6.5MHz

Overshoot: <5%

Jitter: 100 ppm +50 ps

– AM Modulation

Carrier Waveforms: Sine, Square, Triangle, Ramp, Pulse, Arb

Modulating Waveforms: Sine, Square, Triangle, Up/Dn Ramp

Modulating Frequency: 2 MHz to 20 kHz

Depth: 0% to 120.0%

Source: Internal / External

– FM Modulation

Carrier Waveforms: Sine, Square, Triangle, Ramp

Modulating Waveforms: Sine, Square, Triangle, Up/Dn Ramp

Modulating Frequency: 2 MHz to 20 kHz

Peak Deviation: DC to 50 MHz

Source: Internal / External

– PWM GW Instek AFG-3051

Carrier Waveforms: Square

Modulating Waveforms: Sine, Square, Triangle, Up/Dn Ramp

Modulating Frequency: 2 MHz to 20 kHz

Deviation: 0% ～ 100.0% of pulse width

Source: Internal / External

– FSK

Carrier Waveforms: Sine, Square, Triangle, Ramp, Pulse

Modulating Waveforms: 50% duty cycle square

Internal Rate: 2 MHz to 100 kHz

Frequency Range: DC to 50 MHz

Source: Internal / External

– SWEEP

Waveforms: Sine, Square, Triangle, Arb

Type: Linear or Logarithmic

Direction: Up or Down

Start F / Stop FREQ: 100 uHz to 50 MHz

Sweep Time: 1 ms to 500 s

Trigger: Single, External, Internal

Marker: Falling edge of Mark signal (Programmable frequency)

Source: Internal / External

– BURST GW Instek AFG-3051

Waveforms: Sine, Square, Triangle, Ramp

Frequency: 1 uHz to 50 MHz(4)

Burst Count: 1 to 1000000 cycles or Infinite

Start / Stop Phase: -360.0∘to +360.0∘

Internal Period: 1 ms to 500 s

Gate Source: External Trigger

Trigger Source: Single, External, or Internal Rate

Trigger Delay: N-Cycle, Infinite: 0s to 85 s

– External Modulation Input

Type: for AM, FM, Sweep, PWM

Voltage Range: ± 5V full scale

Input Impedance: 10kΩ

Frequency: DC to 20 kHz

– External Trigger Input

Type: for FSK, Burst, Sweep

Input Level: TTL Compatible

Slope: Rising or falling(selectable)

Pulse Width: > 100 ns

Input Impedance: 10kΩ,DC-coupled

Latency: Sweep: < 10 us (typical). Burst: < 100 ns (typical)

Jitter: Sweep: 2.5 us. Burst: 1 ns; except pulse,300 ps

– Modulation Output

Type: for AM, FM, Sweep, PWM

Amplitude: Range: ≧1Vpp. Impedance: > 10kΩ typical (fixed)

– Trigger Output

Type: for Burst, Sweep

Level: TTL Compatible into 50Ω

Pulse Width: > 450 ns

Maximum Rate: 1 MHz

Fan-out: ≧4 TTL load

Impedance: 50Ω typical

– Marker Output

Type: for ARB, Sweep

Level: TTL Compatible into 50Ω

Fan-out: ≧4 TTL load

Impedance: 50Ω typical

Store/Recall: 10 Groups of Setting Memories

Interface: GPIB, RS232, USB

Display: 4.3 inch TFT LCD; 480 × 3 (RGB) × 272

– System Characteristics GW Instek AFG-3051

+ Configuration Times (typical):

Function Change: Standard—->102ms; Pulse——-->660ms; Built-In Arb- >240ms

Frequency Change: 24ms

Amplitude Change: 50ms

Offset Change: 50ms

Select User Arb: < 2s for 1M points

Modulation Change: < 200ms

+ Arb Download Times (typical): Binary Code

GPIB / RS-232 (115 Kbps) : 1M points: 189 Sec; 512K points: 95 Sec; 256K points: 49 Sec; 64K points: 16 Sec; 16K points: 7 Sec; 8K points: 6 Sec; 4K points: 6 Sec; 2K points: 5 Sec

USB(Device):1M points: 34 Sec; 512K points: 18Sec; 256K points: 9 Sec; 64K points: 3 Sec; 16K points: 830mS; 8K points: 490mS; 4K points: 365mS; 2K points: 300mS

– General Specifications

Power Source: AC100～240V , 50～60Hz

Power Consumption: 65 VA

+ Operating Environment

Temperature to satisfy the specification: 18 ~ 28∘C

Operating temperature: 0 ~ 40∘C

Relative Humidity: ≤ 80%, 0 ~ 40°C; ≤ 70%, 35 ~ 40°C

Installation category： CAT Ⅱ

Operating Altitude: 2000 meters

Pollution Degree: IEC 61010 Degree 2, Indoor Use

Storage Temperature: -10 ~ 70∘C, Humidity: ≤70%

Dimensions (WxHxD): Bench Top : 265 (W) x 107 (H) x 374 (D)

Weight: Approx. 4kg

Safety Designed to EN61010-1

EMC Tested to EN 55011, IEC-61326-1

Accessories: GTL-110× 1; Instruction Manual×1; Power cord×1

(1). A total of ten waveforms can be stored. (Every waveform can be composed of 1M points maximum.)

(2). Add 1/10th of output amplitude and offset specification per ∘C for operation outside of 0∘C to 28∘C range (1-year specification).

(3). Edge time decreased at a higher frequency.

(4). Sine and square waveforms above 25 MHz are allowed only with an “Infinite” count.

(5). Harmonic distortion and Spurious noise at low amplitudes are limited by a -70 dBm floor.

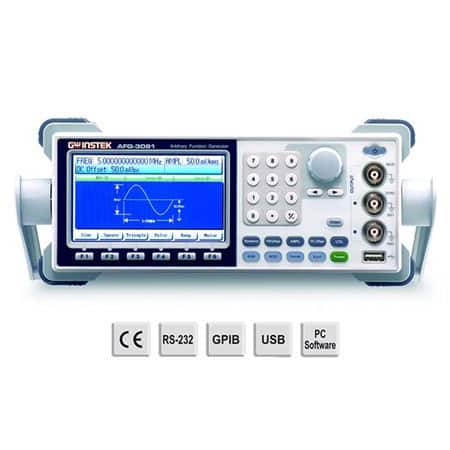

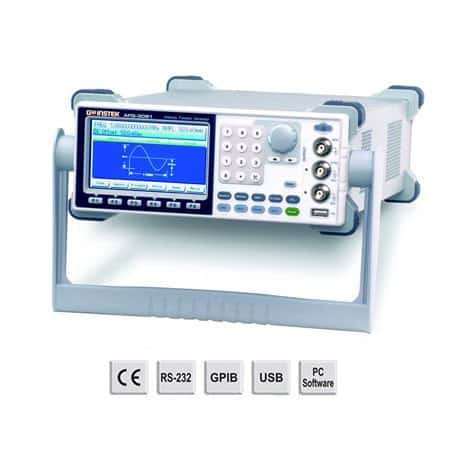

Introduce GW Instek AFG-3051

The AFG-3000 Series is an arbitrary waveform generator designed for industrial, scientific research, and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users’ diversified needs.

The AFG-3000 Series also provides a high 16-bit resolution, 200MSa/s sample rate, and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 Series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency.

In addition, the AFG-3000 Series has switchable 50 Ohm and Hi-Z Impedances, built-in On-Screen Help for operation conveniently. Complete parameter settings and waveform can be displayed through a 4.3-inch high-resolution TFT LCD. Through USB, RS-232, and GPIB, users can use dedicated PC software or IEEE488.2 commands to edit waveforms.

Features

– Wide frequency range from 1uHz to 80/50MHz
– High 200MSa/s sampling rate
– 16-bit Amplitude Resolution
– Output from any section of the 1M-point-long waveform
– 4.3″ high-resolution LCD display/on-screen help/Impedance switch
– Four ways to generate arbitrary waveform: Front Panel Operation
– CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary
– Waveform Editing PC Software
– USB, RS-232, GPIB interface support
