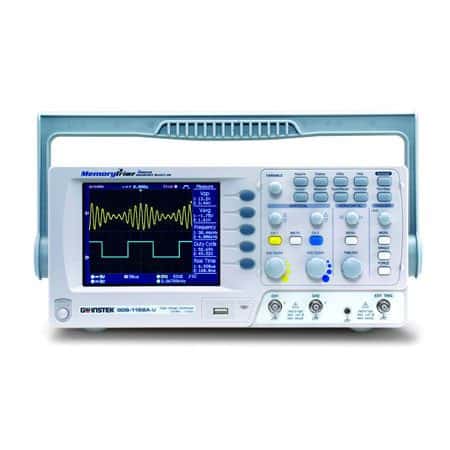

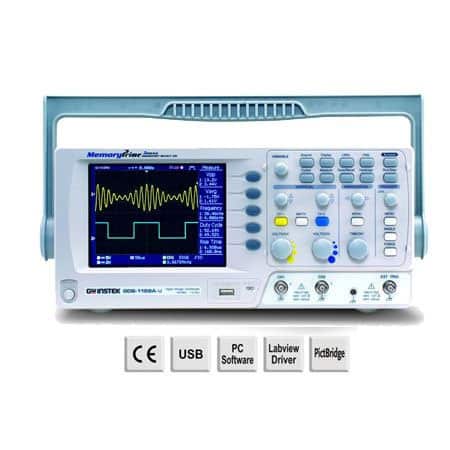

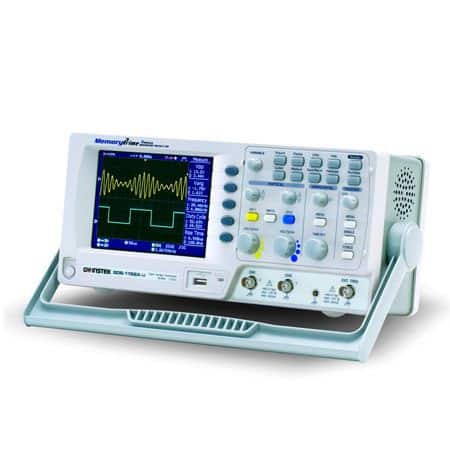

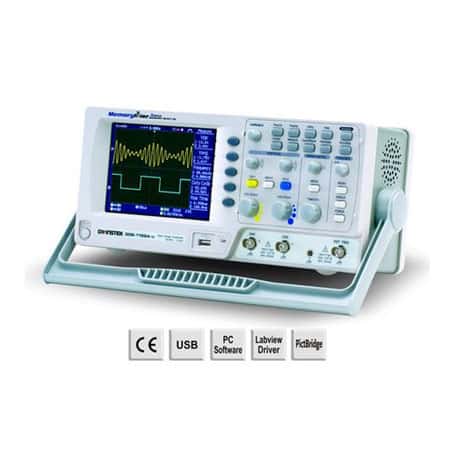

GW Instek GDS-1102A-U (CE) DIGITAL STORAGE OSCILLOSCOPES

Key Features

  • 150/100/70MHz Bandwidths
  • 1GSa/s Real-Time Sampling rate Maximum, 25GSa/s Equivalent-Time
  • 2Mega Points Record Length
  • 2mV~10V Vertical Scale
  • 1ns~50s Horizontal Range

SPECIFICATIONS GW INSTEK GDS-1102A-U (CE) DIGITAL STORAGE OSCILLOSCOPES

  • Model‐specific specifications

Bandwidth (–3dB):DC coupling: DC ~ 100MHz; AC coupling: 10Hz ~ 100MHz

Bandwidth Limit: 20MHz (−3dB)

Trigger Sensitivity: 0.5div or 5mV (DC ~ 25MHz); 1.5div or 15mV (25MHz~100MHz)

External Trigger Sensitivity:

~ 50mV (DC~25MHz)
~ 100mV (25MHz~100MHz)

Rise Time: < 3.5ns approx.

  • Common specifications

Vertical

Sensitivity: 2mV/div~10V/Div (1‐2‐5 increments)

Accuracy: ± (3% x |Readout|+0.1div + 1mV)

Bandwidth: See model‐specific specifications

Rise Time: See model‐specific specifications

Input Coupling: AC, DC, Ground

Input Impedance: 1MΩ±2%, ~15pF

Polarity: Normal, Invert

Maximum Input: 300V (DC+AC peak), CAT II

Math Operation: +, –, ×, FFT, FFT rms

Offset Range: 2mV/div~50mV/div: ±0.4V; 100mV/div~500mV/div: ±4V; 1V/div~5V/div: ±40V; 10V/div : ±300V

Trigger GW Instek GDS-1102A-U

Sources: CH1, CH2, Line, EXT

Modes: Auto, Normal, Single, TV, Edge, Pulse

Coupling: AC, DC, LF rej, HF rej, Noise rej

Sensitivity: See model‐specific specifications

Holdoff: 40ns ~ 2.5s

External trigger

Range:

DC: ±15V, AC: ±2V

Sensitivity: See model‐specific specifications

Input Impedance: 1MΩ±2%, ~15pF

Maximum Input: 300V (DC+AC peak), CATII

Horizontal

Range: 1ns/div~50s/div, 1‐2.5‐5 increment; Roll: 50ms/div – 50s/div

Modes: Main, Window, Window Zoom, Roll, X‐Y

Accuracy: ±0.01%

Pre‐Trigger: 10 div maximum

Post-Trigger: 1000 div

X‐Y Mode

X‐Axis Input: Channel 1

Y‐Axis Input: Channel 2

Phase Shift: ±3° at 100kHz

Signal Acquisition

Real‐Time: 1G Sa/s maximum

Equivalent: 25G Sa/s maximum

Vertical Resolution: 8 bits

Record Length: Maximum; 2M points (1 channel), 1M points (2 channels)

Acquisition: Normal, Peak Detect, Average

Peak Detection: 10ns (500ns/div ~ 50s/div)

Average: 2, 4, 8, 16, 32, 64, 128, 256

Cursors and Measurement

Voltage: Vpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/ Overshoot, Fall Preshoot/ Overshoot

Time: Freq, Period, Rise Time, Fall Time, + Width, – Width, Duty Cycle

Delay: FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF

Cursors: Voltage difference (ΔV) and; Time difference (ΔT) between cursors

Auto Counter:

Resolution: 6 digits, Accuracy: ±2%; Signal source: All available trigger source except the Video trigger

Control Panel Function

Autoset: Automatically adjust Vertical Volt/div, Horizontal Time/div, and Trigger level

Save/Recall: Up to 15 sets of measurement conditions and waveforms

Display GW Instek GDS-1102A-U

LCD: 5.7 inch, TFT, brightness adjustable

Resolution (dots): 234 (Vertical) x 320 (Horizontal)

Graticule: 8 x 10 divisions

Display Contrast: Adjustable

Interface

USB Slave Connector: USB 2.0 full speed (CDC ACM)

USB Host connector: Image (BMP) and waveform data (CSV)

Probe Compensation Signal

Frequency range: 1kHz ~ 100kHz adjustable, 1kHz step

Duty cycle: 5% ~ 95% adjustable, 5% step

Amplitude: 2Vpp±3%

Power Source

Line Voltage: 100V ~240V AC; 47Hz ~63Hz

Power Consumption: 18W, 40VA maximum

Fuse Rating: 1A slow, 250V

Operation Environment

Ambient temperature 0 ~ 50°C
Relative humidity ≤ 80%, 40°C or below

≤ 45%, 41°C~50°C

Storage Environment

Storage Temperature: ‐10°C~60°C, no condensation‐ Relative humidity 93% @ 40°C

65% @ 41°C~60°C

Dimensions: 310(W) x 142(H) x 140(D) mm

Weight: Approx. 2.5kg

Introduction GW Instek GDS-1102A-U

The GDS-1000A-U series provides a unique solution. The GDS-1000A-U lineup includes GDS-1152A-U, GDS-1102A-U and GDS-1072A-U three models. Operating at 150, 100 or 70 MHz with a real-time sampling rate of 1GSa/s, the GDS-1000A-U employs MemoryPrime technology . Using MemoryPrime technology, the GDS-1000A-U is able to overcome the problems associated with memory constraints. High sample rates, rarely found in traditional DSOs, can be maintained over longer periods of time, without effecting performance.

User-friendly interface USB device and host port coupled with the high resolution 5.7” color TFT display make the GDS-1000A-U series feature-rich. Furthermore, the GDS-1000A-U series provides a lifetime warranty program!

Features

– 150/100/70MHz Bandwidths
– 1GSa/s Real-Time Sampling rate Maximum, 25GSa/s Equivalent-Time
– 2Mega Points Record Length
– 2mV~10V Vertical Scale
– 1ns~50s Horizontal Range
– Up to 27 Automatic Measurements
– 5.7″ TFT LCD Display
– USB Host and Device Interface Supported
– Go/NoGo Function
– Data Logger
– Limited Lifetime Warranty
