EXTECH PQ3450 3-PHASE POWER ANALYZER/DATALOGGER

Key Features

  • Large dot-matrix sun-readable numerical backlit LCD with easy-to-use onscreen menu
  • Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
  • Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)

SPECIFICATIONS EXTECH PQ3450 3-PHASE POWER ANALYZER/DATALOGGER

AC Voltage (True rms)
Range: 600.0V
Basic Accuracy: ±(0.5%rdg)
AC Current
Range:3000A
Basic Accuracy: ±(0.5%rdg)
Active Power (MW)
Range: 9.999MW
Basic Accuracy: ±(1.0%rdg)
Apparent Power (MVA)
Range: 9.999MVA
Basic Accuracy: ±(1.0%rdg)
Reactive Power (MVAR)
Range: 9.999MVAR
Basic Accuracy: ±(1.0%rdg)
Power Factor
Range: 0.00 to 1.00
Basic Accuracy: ±0.04
Frequency Range
Range: 45Hz to 65Hz
Basic Accuracy: ±0.1Hz
Phase
Range: -180° to +180.0°
Basic Accuracy: ±1°
Current Clamp input
+ Range: 200mV, 300mV, 500mV
Basic Accuracy: ±(0.5%rdg)
+ Range: 1V, 2V, 3V; user-selectable
Active Power Energy (MWH)
Range: 0.0kWh to 9.999MWH
Basic Accuracy: ±(2.0%rdg)
Apparent Power Energy (MVAH)
Range: 0.0KVAh to 9.999MVAH
Basic Accuracy: ±(2.0%rdg)
Reactive Power Energy (MVARH)
Range: 0.0kVARh to 9.999MVARH
Basic Accuracy: ±(2.0%rdg)
Datalogging: 30,000 readings (2GB SD memory Card)
Dimensions: 8.86 x 4.92 x 2.52″ (225 x 125 x 64mm)
Weight: Meter: 2.2lbs (1010g)

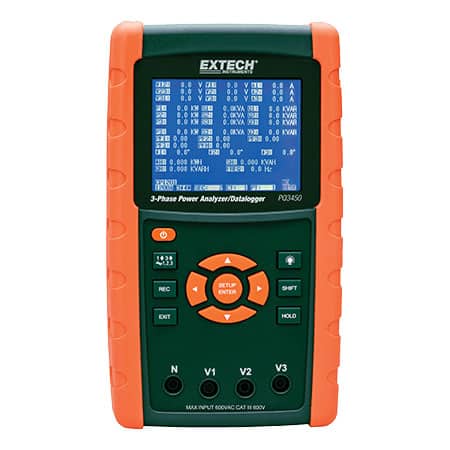

Introduction Extech PQ3450

The PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy-to-hold with a rugged over molded housing and features a built-in clock and calendar, 35 parameters and a CAT III 600V safety rating. Complete with a year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.

Thiết bị đo phân tích công suất Extech PQ3450 (8)

Features

– Large dot-matrix sun-readable numerical backlit LCD with easy-to-use onscreen menu (Extech PQ3450)
– Full system analysis with up to 35 parameters:

    • V (phase-to-phase) V (phase-to-ground)
    • A (phase-to-ground)
    • KW / KVA / KVAR / PF (phase)
    • KW / KVA / KVAR / PF (system)
    • KWH / KVAH / KVARH / PFH (system)
    • Phase angle

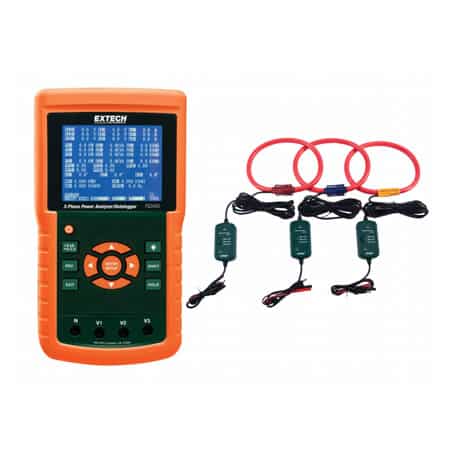

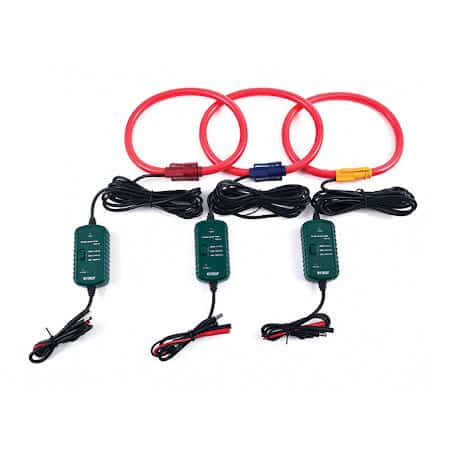

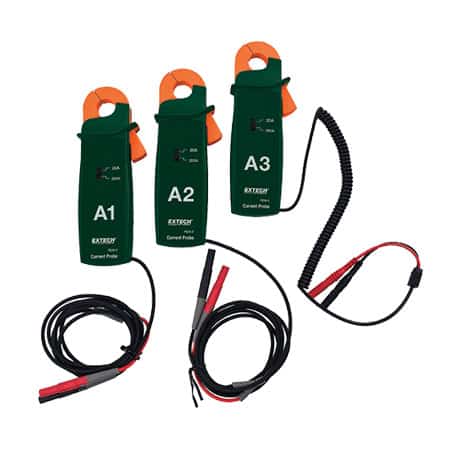

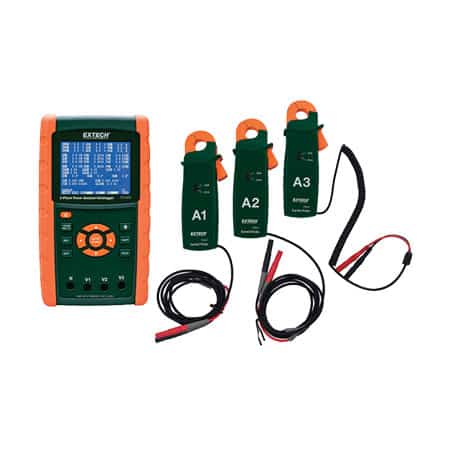

– Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
– Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
– Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
– Wide sampling rate range (2 seconds to 2 hours)
– Built-in Clock and Calendar
– Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor and case. Clamp probes sold separately.
