Cần Siết Lực CDI Micrometer Adjustable Dual Scale – 501MRMH

501MRMH

⇩ Xem thêm Cần Siết Lực CDI Micrometer Adjustable – Dual Scale

1501MRMH: 1∕4″, 20-150 in.lb / 2.8-15.3 Nm
1502MRMH: 3∕8″, 20-150 in. lb /  2.8 – 15.3 Nm
2002MRMH: 3∕8″, 30-200 in. lb / 4.0 – 22.0 Nm
2502MRMH: 3∕8″ 30-250 in. lb / 4.0 – 27.7 Nm
7502MRMH: 3∕8″, 100-750 in. lb / 14.1 – 81.9 Nm
10002MRMH: 150-1000 in. lb / 19.8 – 110.2 Nm
25003MRMH: 1∕2″, 300-2500 in. lb /  39.6 – 276.9 Nm
752MFRMH: 3∕8″, 5-75 ft. lb / 10.2 – 98.3 Nm
1002MFRMH: 3∕8″, 10-100 ft. lb / 16.9 – 132.2 Nm
1503MFRMH: 1∕2″, 20-150 ft. lb / 34 – 194 Nm
2503MFRMH: 1∕2″, 30-250 ft. lb / 47 – 332 Nm
4004MFRMH: 3∕4″, 80-400 ft. lb / 85 – 491 Nm
6004MFRMH: 3∕4″, 100-500 ft. lb / 169 – 779 Nm
10005MFRMH: 1″, 200-1000 ft. lb / 305 – 1322 Nm

thông số kỹ thuật cần siết lực CDI Micrometer Adjustable Dual Scale – 501MRMH

Drive Size: 1/4 Inch

English Range for this wrench: 10-50 In Lbs

Metric Range for this wrench: 1.4-5.4 Nm

Length: 10.15″

Weight Lbs: 1

Accuracy: ± 3%

Scale:: In Lbs to 50

Scale: Nm to 5.4

Mô tả Cần Siết Lực CDI 501MRMH

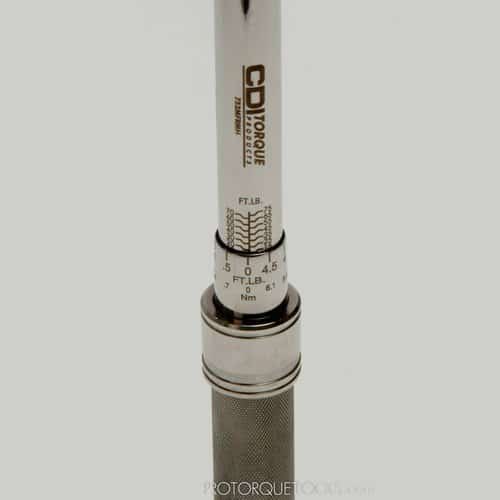

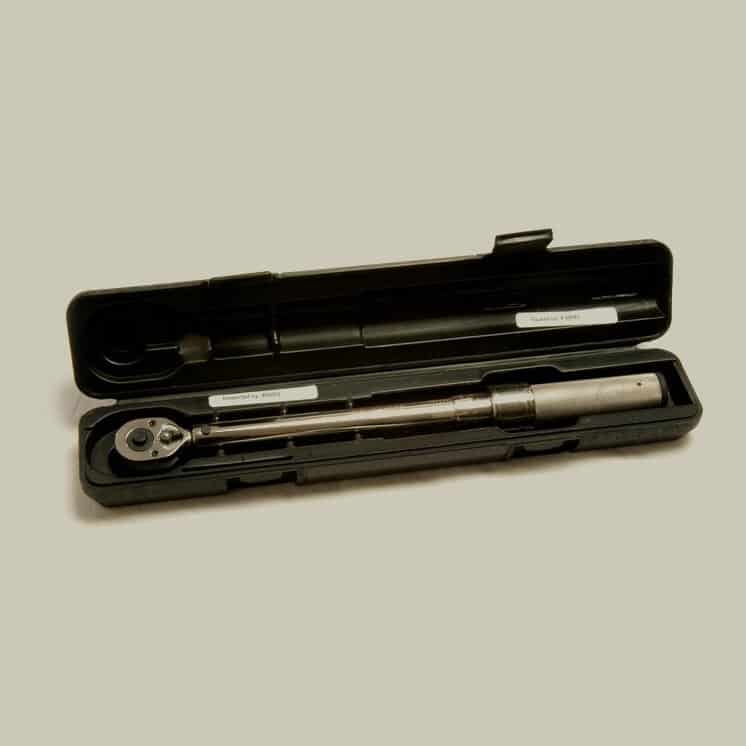

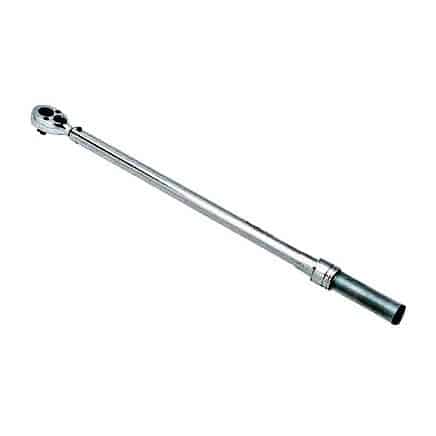

The CDI 501MRMH Micrometer Adjustable Torque Wrench Dual Scale has a 1/4″ Drive and an English range of 10-50 In Lbs and a Metric range of 1.4-5.4 Nm.  The metal handle series offers the user a rugged, industrial-strength torque wrench able to withstand the rigors of professional use, and all of CDI’s click torque wrenches are calibrated for use in both directions. If you require a tool with a slightly larger scale capacity, take a look at the CDI 1501MRMH dual-scale torque wrench.

Chức năng

1/4 Drive Adjustable Torque Wrench Features:

– Handles are lightly knurled for a tough, non-slip grip.
– Dual scale, calibrated dual direction
– Positive lock with spring-loaded pull-down lock ring
– Fast, accurate, and easy to set
– Easy-to-read laser-marked scales
– Most feature quick-release buttons which provide good socket retention as well as easy socket removal
– Accuracy: ± 3% clockwise ± 4% CCW of indicated value, CW, from 20% to 100% of full scale
– Meets or exceeds ASME B107.14-2004, ISO 6789 standards
– Individually serialized with matching certificate of calibration traceable to N.I.S.T.

CDI Micro Adjustable Torque Wrench

– Drive: 1/4″
– English Range: 10-50 in.lb
– English Range Increments: 1
– Nm Range: 1.4-5.4
– Nm Increments: 0.06
– A In.: 10.15
– B In.: 1.06
– C In.: 0.93
– D In.: 1.06
– Wt. Lbs: .85
