Fluke T6-1000 PRO Electrical Tester
Product overview: Fluke T6-1000 PRO Electrical Tester
Voltage and current on one screen

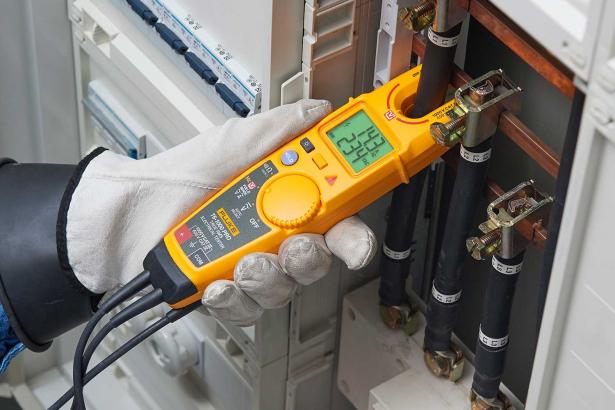

The T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork and see both voltage and current at the same time. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A and 1000 V ac. Even with gloves on. It will change how you do your job.
Key functions
- Simultaneous voltage and current display–save time by seeing voltage and current measurements at the same time when trouble shooting motors, pumps or other equipment
- Visual Continuity™–When checking continuity, the screen automatically turns green while the beeper is on. Perfect for those times when it’s too loud to hear the beeper, when you’re wearing ear protection or when it’s too dark to easily read the screen. Visual Continuity takes the guesswork out of checking continuity.
- True-rms – Accurate voltage and current measurements, even when measuring complex signals.
- FieldSense™ technology for ac voltage, current and frequency measurement without making electrical contact to live voltage
Other capabilities
- 1 to 1000 V ac or dc
- 0.1 to 200 A ac
- Resistance 1 Ω to 100 kΩ
- Frequency measurement 45 Hz to 66 Hz through open fork
- Works with most wire up to AWG 4/0 (17.8 mm/0.7” jaw opening)
- HOLD button temporarily freezes the screen for easy viewing
- Easy to read display with backlight
- Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
- Standard two-year warranty; extendable to 4 years through product registration within 45 days of purchase *
What’s in the box:
- T6-1000 PRO Electrical Tester
- Attached test leads with removable 4 mm probe caps
- Black AC285 SureGrip™ alligator clip
- H-T6 holster
- User documentation
Specifications: Fluke T6-1000 PRO Electrical Tester
| Function | ||
| FieldSense ac voltage | Requires test leads | No |
| Range | 1000 V | |
| Resolution | 1 V | |
| Accuracy | ±(3 % + 3 counts) 45 Hz – 66 Hz[1] [2] | |
| FieldSense ac current | Requires test leads | No |
| Range | 200.0 A | |
| Resolution | 0.1 A | |
| Accuracy | ±(3 % + 3 counts) 45 Hz – 66 Hz | |
| FieldSense frequency (Hz) | Requires test leads | No |
| Range | 45 Hz – 66 Hz | |
| Resolution | 1 Hz | |
| Accuracy | ±(1 % + 2 counts) | |
| Volts ac | Requires test leads | Yes |
| Range | 1000 V | |
| Resolution | 1 V | |
| Accuracy | ±(1.5 % + 2 counts) 45 Hz – 66 Hz | |
| Volts dc | Requires test leads | Yes |
| Range | 1000 V | |
| Resolution | 1 V | |
| Accuracy | ±(1 % + 2 counts) | |
| Resistance | Requires test leads (all ranges) | Yes |
| Range | 2000 Ω | |
| Resolution | 1 Ω | |
| Range | 20.00 kΩ | |
| Resolution | 0.01 kΩ | |
| Range | 100.0 kΩ | |
| Resolution | 0.1 kΩ | |
| Accuracy (all ranges) | ±(1 % + 2 counts) | |
Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC conversions are ac-coupled, RMS responding.Accuracy[2]: FieldSense specified from 16V to 1000V.
| General Specifications | |
| Calibration | 1-year calibration cycle |
| Dimensions | 61 mm x 259 mm x 43 mm |
| Weight | 0.35 kg (0.78 lb) |
| Fork opening | 17.8 mm (0.7”) |
| Temperature
Operating: Storage: |
-10 °C to +50 °C (14 °F to 122 °F)
-30 °C to +60 °C (-22 °F to +140 °F) |
| Altitude
Operating: Storage: |
2,000 m (6,562 feet)
10,000 m (32,808 feet) |
| Relative Humidity | 0 % to 90 %, 5 °C to 30 °C (41 °F to 86 °F)
0 % to 75 %, 30°C to 40 °C (86 °F to 104 °F) 0 % to 45 %, 40°C to 50 °C (104 °F to 122 °F) |
| Battery
Type: Life: |
2x AA (IEC LR6)
360 hour continuous, typical is 200 hour using the FieldSense function |
| Temperature coefficient | 0.1 x (specified accuracy) / °C for <18°C or >28 °C (< 64.4 °F or > 82.4 °F) |
| Safety
General: Measurement T6-1000 PRO: |
IEC 61010-1: Pollution Degree 2IEC 61010-2-032: CAT IV 600 V / CAT III 1000 V |
| Electromagnetic Compatibility | IEC/EN 61326-1: Portable |
Models: Fluke T6-1000 PRO Electrical Tester
Fluke T6-1000 PRO Electrical Tester
Includes:
- Attached test leads with removable 4 mm probe caps
- Black AC285 SureGrip™ alligator clip
- H-T6 holster
- User documentation
