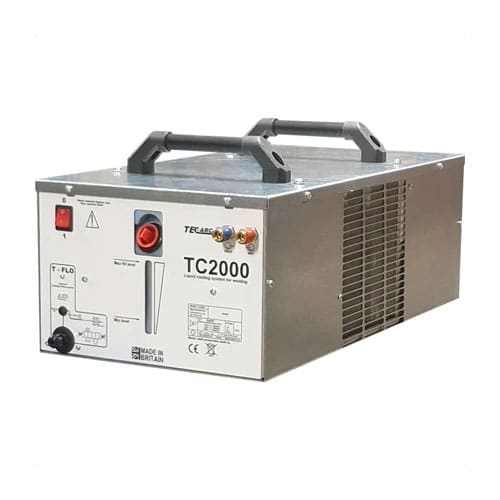

Technical ARC Water cooler TC2000

Short Description

TECARC TC2000 water cooler units – doubled cooled for the highest performance.

Suitable for really heavy duty applications & cooling multiple torches.

Available in 3 voltage options, all with same performance.

TC2000-110/115V,

TC2000-230V,

TC2000-400V,

Description
Additional information

SPECIFICATIONS TECHNICAL ARC WATER COOLER TC2000

Flow rate	Max 10l/min (typical 1-3l/min through torch)
Pressure	4 bar max
Cooling capacity	2000W = 20˚C rise, 4000W = 40˚C rise
MIG capability	All applications
TIG capability	Max 700A
Res / spot welding	Max 80kva
110/115V model	Input 2.0A
230V model	Input 1A
400V model	Input 0.6A

All models are AC volts input +/- 10%, Freq. 50/60Hz.

Approx. size – 620 Length, 320mm Width, 225mm Height.

Introduction Technical ARC Water cooler TC2000

The TC2000 universal water cooler is our top-tier cooling unit, designed for heavy-duty welding applications with a focus on toughness and reliability. Equipped with twin heat exchangers and an extra powerful fan, these models excel in cooling efficiency.

Versatility is a key feature, allowing standalone use or easy mounting onto our universal trolley. The TC2000 comes in three voltage options (110V, 230V, and 400V) and features a self-resetting protection device, preventing motor burnout due to stalls.

Built with Simaco rotary pumps, the leading European manufacturer used by industry giants, the TC2000 ensures efficient, long-lasting, and self-priming performance. Constructed in galvanized steel, it combines durability with a sleek appearance, featuring M6 fixing points for convenient mounting.

The TC2000, with a 5L tank and a cooling capacity of 4000W, is ideal for heavy production welding, automation, and situations requiring the coolest welding torch operation. It can cool up to 2 torches at 400A on a 60% duty cycle or 3 torches with slightly lower power, connected in series.

The optional T-FLO control enhances these models, offering intelligent cooling with pump-on-demand for energy savings, reduced pump wear, and minimized noise. T-Flo monitors fluid flow with a 3/4-way fault warning system and can be easily switched off for continuous operation. The NC relay contact, rated at 5A, provides additional protection by wiring to shut down your welding machine.

For those preferring an alternative, a basic internal flow switch can be fitted instead of T-Flo. Optional top handles offer enhanced portability as needed. In summary, the TC2000 delivers top-notch cooling performance with versatile features for various welding applications.
