Mitutoyo CNC Vision Measuring System QV Apex Pro

Features

All the QUICK VISION Pro models are equipped with a strobe light, and the newly developed vision measuring function “StrobeSnap” delivers measurements with both high throughput and high accuracy. Regardless of the continuity of measuring positions, measuring time can be shortened by about 35 to 45% for most measurement samples. The excellent compatibility with part programs allows a part program to be created for high-speed measurement with ease.
The image auto focus of QUICK VISION Pro can measure the height of mirror-finished surfaces through to rough surfaces, such as machined surfaces and plastic molded parts, with high accuracy and at high speed under any conditions. Image auto focus speed has been improved by about 30% compared with conventional models.
Height change in a workpiece can be tracked in the Z-axis direction quickly by laser with the Tracking Auto Focus (TAF) function. StrobeSnap and STREAM allow it to perform effectively, resulting in a significant increase in measurement throughput.
The Point From Focus (PFF) function enables the 3D measurement with multi-cross-section images. Scanning the object by auto-focusing the objective lens can capture multiple cross-section images (image contrasts) at different heights. Thus obtaining 3D shape data from such images.

Mitutoyo CNC Vision Measuring System QV Apex Pro

Product Information

Manufacturer: Mitutoyo

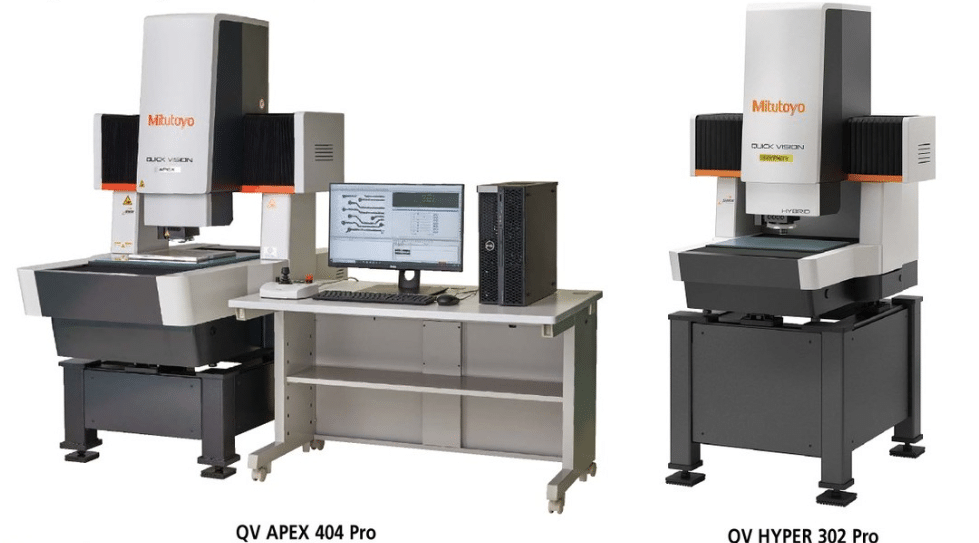

QV Apex Pro is a CNC Vision Measuring System. This is a superior model of QUICK VISION, which is equipped with the StrobeSnap function as standard, enabling high-speed measurement.

Features of QV Apex Pro

All the QUICK VISION Pro models are equipped with a strobe light, and the newly developed vision measuring function “StrobeSnap” delivers measurements with both high throughput and high accuracy. Regardless of the continuity of measuring positions, measuring time can be shortened by about 35 to 45% for most measurement samples. The excellent compatibility with part programs allows a part program to be created for high-speed measurement with ease.
The image autofocus of QUICK VISION Pro can measure the height of mirror-finished surfaces through to rough surfaces, such as machined surfaces and plastic molded parts, with high accuracy and at high speed under any conditions. Image autofocus speed has been improved by about 30% compared with conventional models.
Height change in a workpiece can be tracked in the Z-axis direction quickly by laser with the Tracking Auto Focus (TAF) function. StrobeSnap and STREAM allow it to perform effectively, resulting in a significant increase of measurement throughput.
The Point From Focus (PFF) function enables the 3D measurement with multi cross-section images. Scanning the object by auto focusing the objective lens can capture multiple cross-section images (image contrasts) at different heights. Thus obtaining 3D shape data from such images.
