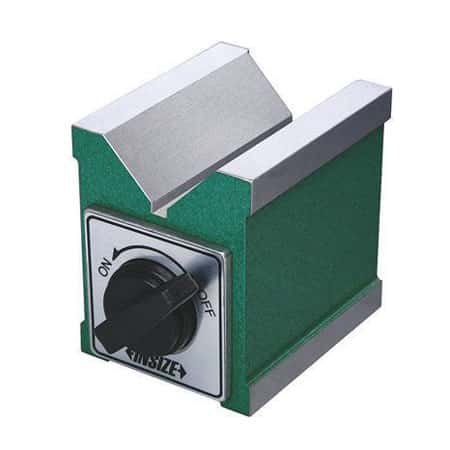

INSIZE 6890-702: Magnetic V-block

Key Features

Range of shafts : ø6~ø44mm
Magnetic force : 56kgf
Parallelism of V groove to top, bottom, left and right sides : 10µm
Squareness of V groove to back side : 10µm.
Not hardened

Description
Additional information

specifications INSIZE 6890-702: Magnetic V-block

Size (LxWxH) : 70x60x73mm

Range of shafts : ø6~ø44mm

Magnetic force : 56kgf

Parallelism of V groove to top, bottom, left and right sides : 10µm

Squareness of V groove to back side : 10µm.

Not hardened

Not suitable for steel or iron surface

Introduction Insize 6890-702

The Insize 6890-702 Magnetic V-block with contact cross-section with diameter ø6-44mm and magnetic force up to 56kgf. As a supporting tool in the mechanical industry, manufacturing… The V-Insize 6890-702 Magnetic V-block is convenient fast and accurate. This is the best device for measuring, checking and clamping work pieces.

Features

– Hold cylindrical work pieces for inspection and machining
– Supplied in single piece
– Not hardened
– Not suitable for steel or iron surface, otherwise the magnetic force will be reduced

If you need to find a product that has a larger magnetic force, you can refer to the product Insize 6201-60 Magnetic Stand with magnetic force up to 60kgf

Insize Brand

Founded in 1995, Insize® is a dedicated supplier of measuring instruments to distributors. To enable Insize to serve the worldwide market, Insize is setting up an Insize distribution network on a global basis. Insize ensure that wherever you are, Insize products have service and support that are within hand reach. Insize dedication to Quality, Innovation, Service and Value has created a worldwide demand for the INSIZE products.

Insize has quality products made to international standards with a full guarantee. Innovation by continually striving to improve and develop new products. Service and support to ensure you have trouble-free use of our products. High-performance products at a good price.
