Specification
| Measuring range ( X x Y x Z) | 250 x 150 x 200mm |
| Stage size | 450x280mm |
| Stage glass size | 306x196mm |
| Resolution of X/Y/Z axis | 0.5µm 20kg |
| Accuracy of X/Y/ axis | ≤(2.5+L/100mm)µm (L is the measuring length in mm) |
| Repeatability of X/Y axis | 2µm |

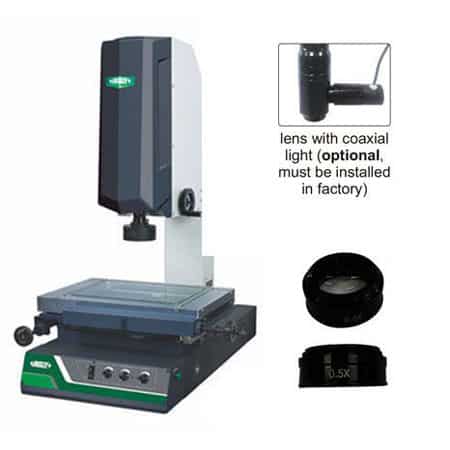

| Objective | 0.7X~4.5X ( zoom) |
| Working distance | 92mm |
| Magnification | 33X~195X ( on 19 |
| Camera | 1/3 |
| Illumination | surface and contour with adjustable LED |
| Max height of workpiece | 160mm |
| Max weight of workpiece | 20kg |
| Operation system | Windows 7 |
| Power supply | 110/220V,50/60Hz |
| Dimension (LxWxH) | 760X600X900mm |

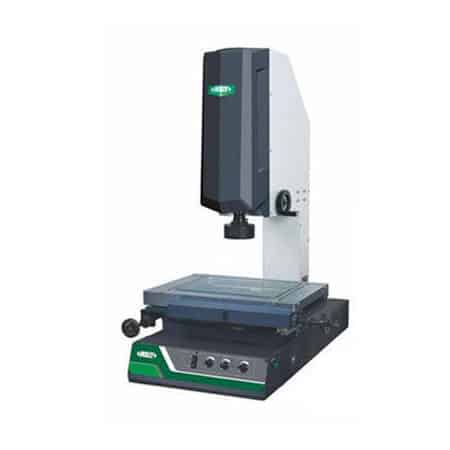

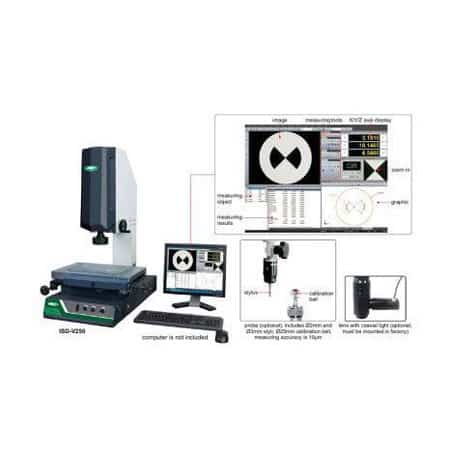

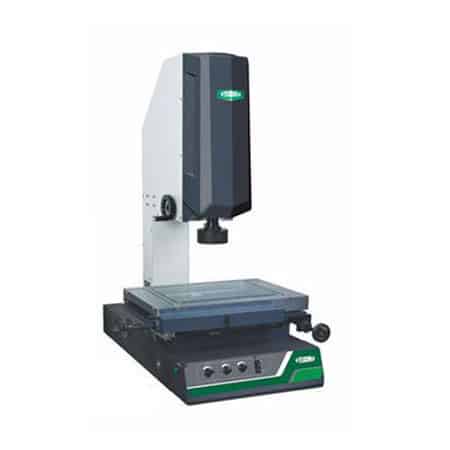

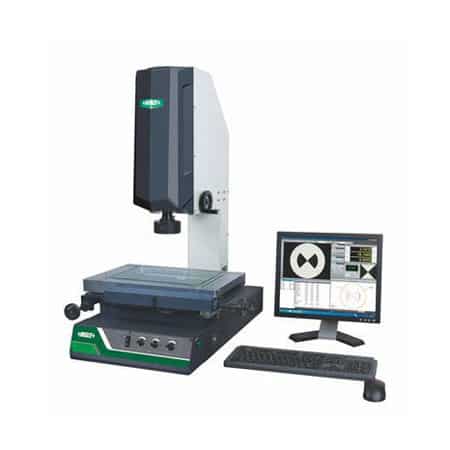

Review INSIZE ISD-V250 Vision Measuring System
