SPECIFICATIONS GW INSTEK MDO-2302AG MIXED-DOMAIN OSCILLOSCOPES
Channels: 2CH+ EXT.
Bandwidth(‐3dB): DC~300MHz
Rise time: 1.17ns
Bandwidth Limit: 20M/100M/200MHz
– Vertical Sensitivity
Resolution: 8 bit; 1mV~10V/div
Input Coupling: AC, DC, GND
Input Impedance: 1MΩ// 16pF approx.
DC Gain Accuracy: ±(3%)when 2mV/div or greater is selected; ±(5%)when 1mV/div is selected;
Polarity: Normal & Invert
Maximum Input Voltage: 300Vrms, CAT I
Offset Position Range: 1mV/div ~ 20mV/div : ±0.5V; 50mV/div ~ 200mV/div : ±5V; 500mV/div ~ 2V/div : ±25V; 5V~10V/div : ±250V
Waveform Signal Process: +, ‐, ×, ÷, FFT, User Defined Expression.
FFT: 1Mpts
FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman.
– Trigger
Source: CH1, CH2 Line, EXT
Trigger Mode: Auto (supports Roll Mode for 100ms/div or slower), Normal, Single Sequence
Trigger Type: Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate, Time out, Event‐Delay(1~65535 events), Time‐Delay(Duration,4nS~10S), Bus
Holdoff range: 4ns~10s
Coupling: AC, DC, LF rej., HF rej. , Noise rej.
Sensitivity: 1div
– External Trigger GW Instek MDO-2302AG
Range: ±15V
Sensitivity: DC ~ 100MHz Approx.100mV; 100MHz ~ 200MHz Approx. 150mV; 200MHz ~ 300MHz Approx. 150mV
Input Impedance: 1MΩ±3%~16pF
– Horizontal
Time base Range: 1ns/div ~ 100s/div (1‐2‐5 increments); ROLL: 100ms/div ~ 100s/div
Pre‐trigger: 10 div maximum
Post‐trigger: 2,000,000 div maximum.
Timebase Accuracy: ±50 ppm over any ≥ 1ms time interval
Real-Time Sample Rate: Max.:2GSa/s
Record Length: Per Channel 20M pts
Acquisition Mode: Normal, Average, Peak Detect, Single
Peak Detection: 2ns (typical)
Average: selectable from 2 to 256
– X‐Y Mode
X‐Axis Input: Channel 1
Y‐Axis Input: Channel 2
Phase Shift: ±3° at 100kHz
– Cursors and Measurement
Cursors: Amplitude, Time, Gating available unit: Seconds(s), Hz(1/s) ,Phase(degree) ,Ration(%)
Automatic Measurement:
38 sets: Pk‐Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, ‐Width, Duty Cycle, +Pulses, ‐Pulses, +Edges, ‐Edges, %Flicker, Flicker Idx, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase
– Control Panel Function
Auto counter: 6 digits, range from 2Hz minimum to the rated bandwidth
Autoset: Single‐button, automatic setup of all channels for vertical, horizontal, and trigger systems, with undo Autoset
Save Setup: 20 sets
Save Waveform: 24 sets
– Display GW Instek MDO-2302AG
TFT LCD Type: 8″ TFT LCD WVGA color display
Display Resolution: 800 horizontal × 480 vertical pixels (WVGA)
Interpolation: Sin(x)/x
Waveform Display: Dots, vectors, variable persistence (16ms~4s), infinite persistence
Waveform Update Rate: 120,000 waveforms per second, maximum
Display Graticule: 8 x 10 divisions
Display mode: YT; XY
– Interface
USB Port: USB 2.0 High‐speed host port X1, USB 2.0 High‐speed device port X1
Ethernet(LAN) port: RJ‐45 connector, 10/100Mbps with HP Auto‐MDIX
Go‐NoGo BNC: 5V Max/10mA TTL open collector output
Kensington Style Lock: Rear‐panel security slot connects to a standard Kensington‐style lock.
– Spectrum Analyzer Specifications
Frequency range: DC~1GHz (Max. , Max.bandwidth~1GHz uncalibrated)
Span: 1kHz~1GHz(Max.)
Resolution bandwidth: 1Hz ~ 1MHz(Max.)
Reference level: ‐50 dBm to +40dBm in steps of 5dBm
Vertical units: dBV RMS; Linear RMS; dBm
Vertical position: ‐12divs to +12divs
Vertical scale: 1dB/div to 20dB/div in a 1‐2‐5 Sequence
Display average noise level: 1V/div < ‐50dBm, Avg : 16; 100mV/div < ‐70dBm, Avg : 16; 10mV/div < ‐90dBm, Avg : 16
Spurious response: 2nd harmonic distortion< 40dBc; 3rd harmonic distortion< 45dBc
Frequency domain trace types: Normal ; Max Hold ; Min Hold ; Average (2 ~ 256)
Detection methods: Sample ; +Peak ; ‐Peak ; Average
FFT Windows: FFT Factor :
Hanning 1.44; Rectangular 0.89; Hamming 1.30; Blackman 1.68

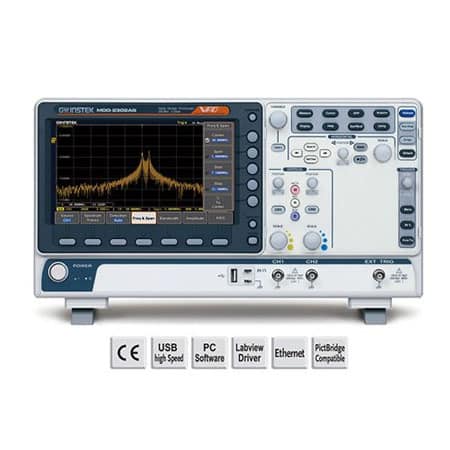

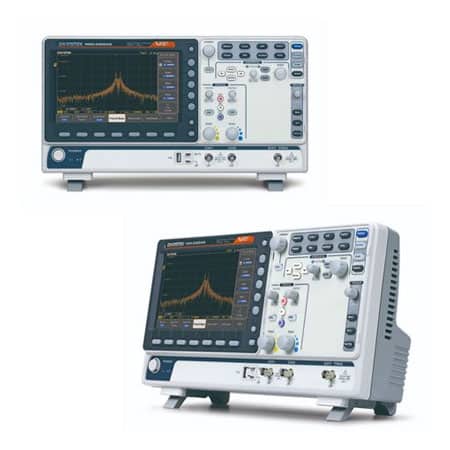

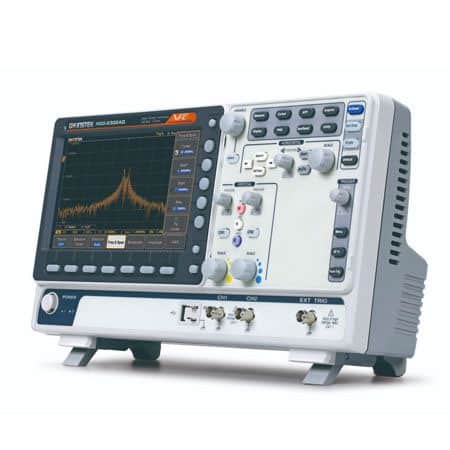

Introduction GW Instek MDO-2302AG
MDO-2000A is an advanced version of MDO-2000E. The selectable bandwidth range is upgraded to 300MHz. The full bandwidth ranges include 300MHz, 200MHz, and 100MHz. The sampling rate has upgraded to Max. 2GSa/s and the memory depth has also been upgraded to 20M/CH. Hence, the three major specifications of oscilloscopes have been improved. The new models of the series feature 2 channels including MDO-2000A and MDO-2000AG. The entire series offers the functions of an oscilloscope and spectrum analyzer. On top of that, MDO-2000AG features a dual-channel 25MHz arbitrary waveform generator. The new generation MDO-2000A series provides a better sampling rate and memory depth for users to obtain more realistic signal integrity, and higher bandwidth selections meet the measurement requirements of higher frequencies.
Features
– 300/200/100MHz bandwidth selections;2 channels
– Real-time sampling rate is 2GSa/s max.
– Per Channel 20M memory depth and VPO waveform display technology
– Waveform update rate up to 120,000 wfms/s
– 8 “ WVGA TFT LCD display
– Maximum 1M FFT provides higher frequency domain resolution measurements
– High, low, and bandpass filter functions
– 29,000 segmented memories and waveform search functions
– I2C/UART/CAN/LIN serial bus trigger and decoding function
– The datalog function is able to track signal changes up to 1000 hours
– Network storage function
– Mask test function
