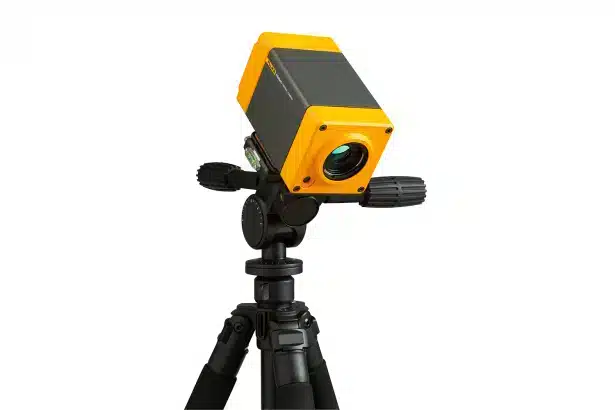

Fluke RSE600 Mounted Infrared Camera
Product Overview
Introducing the first-ever fully-radiometric, mounted Fluke infrared cameras.
Equipped with advanced features and software plug-ins to MATLAB® and LabVIEW®, these tools are ideal for continuously streaming and analyzing infrared data.
Designed for your research, science and engineering needs, enhance your testing and quality assurance procedures by mounting the RSE600 to your workstation. Continuously stream up to 60 frames of data per second directly to your computer to monitor minute temperature differences, and analyze videos frame-by-frame remotely from SmartView® desktop software. Enhance your viewing experience with optional add-on lenses to target different applications (analyzing from a distance, or getting the close-up details).
Don’t just see the heat. Stream, measure and analyze it too.
With plug-ins to MATLAB® and LabVIEW®, the RSE Infrared Cameras are ideal for testing and development
What’s in the box: Fluke RSE600 Mounted Infrared Camera
- Infrared camera with standard infrared lens
- 640 x 480 image resolution
- AC power supply
- Ethernet cable
- Lens Cover
- Carrying Case
Specifications: Fluke RSE600 Mounted Infrared Camera
| Key Features | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad |
| Detector resolution | 640 x 480 (307,200 pixels) |
| Field of view | 34 °H x 25.5 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| Camera focus options | Focus is adjusted in SmartView® R&D desktop software |
| IR-Fusion® technology | Yes, in SmartView® R&D desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image |
| Thermal sensitivity (NETD) | ≤ 0.040 °C at 30 °C target temp (40 mK)* |
| Filter mode (NETD improvement) | Yes |
| Level and span | Smooth auto and manual scaling, in SmartView® R&D desktop software |
| Fast auto toggle between manual and auto modes | Yes, in SmartView® R&D desktop software |
| Fast auto-rescale in manual mode | Yes, in SmartView® R&D desktop software |
| Minimum span (in manual mode) | 0.1 °C (0.18 °F), in SmartView® R&D desktop software |
| Minimum span (in auto mode) | <1.0 °C (<1.8 °F), in SmartView® R&D desktop software |
| Built-in digital camera (visible light) | 5 megapixel industrial performance |
| Frame rate | 60 Hz or 9 Hz versions |
| Digital zoom | Variable up to 16x in SmartView® R&D desktop software |
| *Best possible | |
| Image capture | |
| Memory options | Connect to SmartView® desktop software for storage to device or upload to Fluke Cloud™ for permanent storage Capture, save and analyze images in SmartView® desktop software |
| Image capture, review, save mechanism Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Software | Smartview R&D desktop software – streaming image capture and analysis Smartview Classic software – image analysis and reporting Compatible with MATLAB and LabView software |
| Export file formats with SmartView® desktop software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | Yes |
| Text annotation | Yes |
| Video recording | Yes |
| File formats video | Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3) |
| Remote display viewing | Yes, see the live stream of the camera display on your PC via Smartview R&D desktop software |
| Remote control operation | Yes, through Smartview R&D desktop software |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -10 °C to +1200 °C (14 °F to +2192 °F) |
| Accuracy | ± 2 °C or ± 2 %, whichever is greater |
| Reflected background temperature compensation | Yes |
| Transmission correction | Yes |
| Live line marker | Yes |
| Color Palettes | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General specifications | |
| Color alarms (temperature alarms) | Yes, high temperature, low temperature, and isotherms (within range) |
| Infrared spectral band | 8 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10 % to 95 % non-condensing |
| Center-Point temperature measurement | Yes |
| Spot temperature | Yes, hot and cold spot markers |
| User-definable spot markers | Unlimited user-definable spot markers, in software |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Electromagnetic compatibility | EN 61326-1:2013 IEC 61326-1:2013; (Industrial) |
| US FCC | CFR 47, Part 15 Subpart B Class A |
| Vibration | IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis |
| Shock | IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis |
| Size (H x W x L) | 8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in) |
| Weight (battery not included) | 1 kg (2.2 lb) |
| Enclosure rating | IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
