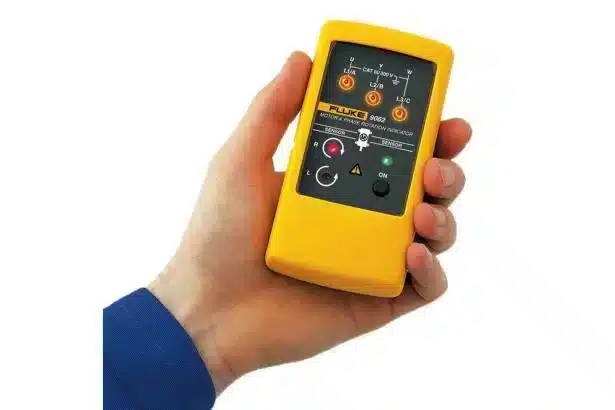

Fluke 9062 Motor and Phase Rotation Indicator

Key features

3 phase indication
Indication of phase rotation
Indication of motor rotation direction
Contact free determination of the rotation direction of running motors

Description
Additional information

Fluke 9062 Motor and Phase Rotation Indicator

Product overview

Unique phase rotation indicator with motor rotation ability

The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Specifications

Technical specifications
Voltage range	Up to 400 V
Phase display	120-400 V AC
Frequency range	2-400 Hz
Operating timer	Continuous
Environmental specifications
Operating temperature	0 °C to 40 °C
Operating altitude	Up to 2000m
Humidity (without condensation)	15% to 80%
Dust/water resistance	IP 40
Safety specifications
Electrical safety	EN 61010,
Electrical safety	EN 61557-7
Overvoltage category	CAT III, 300 V
Mechanical and general specifications
Size	124 x 61 x 27 mm
Weight	1 x 9 V
Batteries	1 x 9 V
Warranty	2 years
