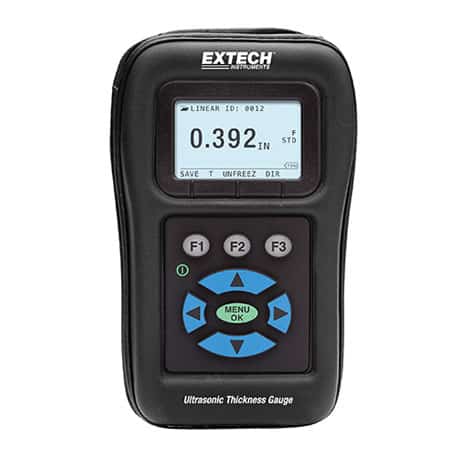

Extech TKG150 Digital Ultrasonic Thickness Gauge

Introduction Extech TKG150 Digital Ultrasonic Thickness Gauge

Compact rugged meter for non-destructive thickness measurements

Extech offers Thickness Gauges ( Extech TKG150 Digital Ultrasonic Thickness Gauge) designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Complete with 2oz bottle of coolant, 2 AA batteries, 5MHz Transducer and hard carrying case.

Applications:
– Boiler Tubes
– Pressure Vessels
– Storage Tanks
– Ship Hulls
– Containers
– Home Oil Tanks
– Pipes
– Steam Lines
– Compressors
– Shafts
– Bridge Pins
– Bond Inspection

Features Extech TKG150

• Wide measurement range:

– 5MHz probe: 0.040″ to 20″ of stee

– 10MHz probe: 0.030″ to 2″ of steel (optional)

• Sunlight readable dot-matrix display with backlight
• Multiple transducer options for high temperature  and difficult to measure materials
• Fast minimum feature to capture minimum thicknesses
• On screen display of 8 languages
• Splash-proof (IP54), high impact, compact housing
• Echo to Echo option to reduce coating errors
• 100K internal datalogger with export to Excel
•  B-scan (visual cross section of test piece)
•  Vibrate on alarm
