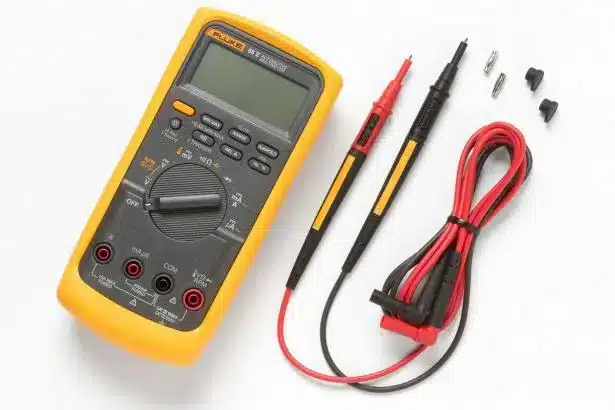

Fluke 88V Deluxe Automotive Multimeter

Key features

Pulse width, duty cycle, Min/Max/Avg recording
10 meg ohm input impedance won’t damage computer circuits
Large display and bright backlight for increased visibility

Description
Additional information

Fluke 88V Deluxe Automotive Multimeter

Product overview

The Fluke 88V has improved measurement functions, trouble-shooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is the most powerful automotive multimeter ever offered by Fluke. In addition to having all standard multimeter features like the ability to measure voltage, current, continuity, and resistance, the 88V can perform diode test and pulse width measurements.

This meter can take current measurements up to 20 A for 30 seconds and 10 A continuously. The optional magnetic hanger lets you attach the meter to most steel surfaces for easy set-up and viewing. The 88V is designed to be used in high energy environments like those found on hybrid vehicles.

Measures

Resistance, continuity and diode test
Millisecond pulse width measurements for fuel injectors
Frequency to 200 kHz and % duty cycle
Measure up to 1000 V AC and DC
Measure current up to 10 A, 20 A for up to 30 seconds
4 ½ digits for precise measurements
RPM measurements with included inductive pickup
Temperature measurements with optional temperature probe

Specifications Fluke 88V Deluxe Automotive Multimeter

Technical Specifications
DCV	Maximum voltage	1000 V
	Accuracy	±(0.1% + 1)
	Best resolution	0.01 mV
ACV	Maximum voltage	1000 V
	Accuracy	±(0.5% + 2)
	AC bandwidth	5 kHz
	Best resolution	0.01 mV
DC current	Maximum amps	10 A
	Amps accuracy	±(0.4 % + 2)
	Best resolution	0.001 mA
AC current	Maximum amps	10 A
	Amps accuracy	±(1.2% + 2)
	Best resolution	0.001 mA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.4% + 1)
	Best resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	Accuracy	±(1% + 2)
	Best resolution	0.01 nF
Frequency	Maximum frequency	200 KHz
	Accuracy	±(0.005% + 1)
	Best resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	within 2% per KHz + 0.1%
	Best resolution	0.1%
Temperature measurement	-200.0°C – 1090°C -328.0°F – 1994.0°F, 1.0% excluding probe
80 BK temperature probe	-40 °C – 260°C -40 °F – 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Operating range	Operating temperature	-20°C – 55°C
Operating range	Storage temperature	-40°C – 60°C
Physical	5.2 x 9.8x 20.1 cm (2.06 x 3.86 x 7.93 in) 624 g (22 oz.)
