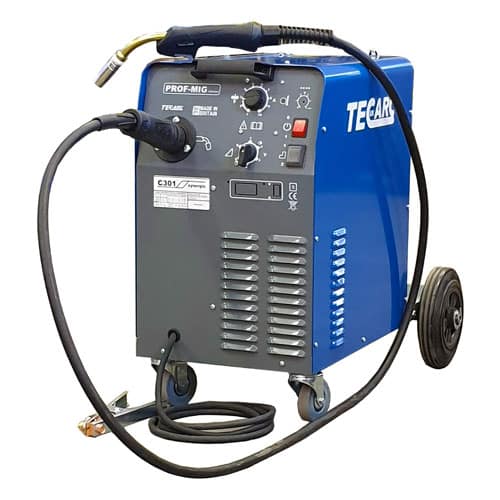

Technical ARC PROF-MIG Universal 180A-300A – view more
SPECIFICATIONS Technical ARC PROF-MIG Universal 180A-300A
+ PROF-MIG C181
| Amps range | 20-180 |
| Volts steps | 8 |
| Amps @60% duty cycle | 90A |
| Amps @35% duty cycle | 120A |
| Input fuse for up to 90% weld power | 13A |
| Input fuse for full weld power (slow) | 16A |
| Recommended min generator size (¾ output) | 3.5kva |
| Welding wire size range | 0.6, 0.8mm |
| Welding wire spool sizes | 15kg & 5kg |
| Approx weight | 44kg |
+ PROF-MIG C211
| Amps range | 20-210 |
| Volts steps | 12 |
| Amps @60% duty cycle | 120A |
| Amps @35% duty cycle | 155A |
| Input fuse for ¾ power (slow) | 13A |
| Input fuse for full power (slow) | 16/20A |
| Recommended min generator size (¾ output) | 4.5kva |
| Welding wire size range | 0.6 – 1.0mm |
| Welding wire spool sizes | 15kg & 5kg |
| Approx weight | 51kg |
+ PROF-MIG C221
| Amps range | 20-220 |
| Volts steps | 12 |
| Amps @60% duty cycle | 130A |
| Amps @35% duty cycle | 170A |
| Input fuse for ¾ power (slow) | 13A |
| Input fuse for full power (slow) | 16/20A |
| Recommended min generator size (¾ output) | 5kva |
| Welding wire size range | 0.6 – 1.0mm |
| Welding wire spool sizes | 15kg & 5kg |
| Approx weight | 52kg |
+ PROF-MIG C251
| Amps range | 20-250 |
| Volts steps | 12 |
| Amps @60% duty cycle | 150A |
| Amps @35% duty cycle | 195A |
| Input fuse for up to 70% weld power (slow) | 16A |
| Input fuse for full power (slow) | 25/32A |
| Recommended min generator size (¾ output) | 6kva |
| Welding wire size range | 0.6 – 1.0mm |
| Welding wire spool sizes | 15kg & 5kg |
| Approx weight | 55kg |
+ PROF-MIG C301
| Amps range | 20-300 |
| Volts steps | 12 |
| Amps @60% duty cycle | 190A |
| Amps @35% duty cycle | 245A |
| Input fuse for up to 60% weld power (slow) | 16A |
| Input fuse for full power (slow) | 25/32A |
| Recommended min generator size (¾ output) | 7.5kva |
| Welding wire size range | 0.6 – 1.2mm |
| Welding wire spool sizes | 15kg & 5kg |
| Approx weight | 60kg |
Introduction
Our market leading PROF-MIG range has been updated & improved even further.
These are all 100% designed & manufactured in the UK. We have been making this range for over 15 years with over 12,000 units produced to date. We have had a few small updates along the way to keep the range up to date & modern, our latest update adds more features & functions making these even more attractive.
If you want a small MIG machine that will weld superbly & last for 25+ years then our PROF-MIG Universal range has to be the best option on the market today.
Environmentally friendly too! Made with less than 1% plastic materials + very long product lifespan + over 90% energy efficiency.
Features
- Synergic control with full manual adjustment of wire speed.
- ‘Reverse polarity feature’ for MIG welding with gas or without.
- 12 volt steps (8 on C181) for very fine adjustment of power.
- Ultra low 20amps min output to weld from 0.5mm upwards.
- Unique reactive choke for a super smooth weld on all models.
- Smoothing caps fitted to models C221, C251, C301 to optimise weld at higher outputs.
- 100% copper wound transformer with 5 year warranty.
- High efficiency design = more weld power for lower input power.
- Only 40W power consumption on standby.
- Built in electronic burn back optimised for all settings.
- Industry standard Euro torch connection.
- Wire size 0.6, 0.8, 1.0 (or 1.2mm on C301) on 15kg or 5 kg spools sizes.
- Quality European wire drive & feed system, better than some 4 roll machines.
- More than 80% of supply chain value is of British origin.
- Low noise high airflow fan cooling standard.
- Strong steel case with galvanised chassis & tough powder coated panels.
- Takes all size gas cylinders including full height.
- Higher duty cycle than most competitors machines.
- Volt switches have metal shafts not plastic like competitors.
- All in all a virtually unbeatable MIG package!
Option
400 volt version of 250A & 300A models (C253 & C303), spot timer option, digital meter option, Other functions and specs are available on request.
Size approx. 600mmH x 330mmW+rear wheels x 740mmL.
All models comply with BS EN60974-1, WEE/HD0071UZ
We guarantee to fully support these machines with spares & service for a minimum of 20 years, the best long term back up in the industry.
‘Invest in the best’ quality made British welding equipment
