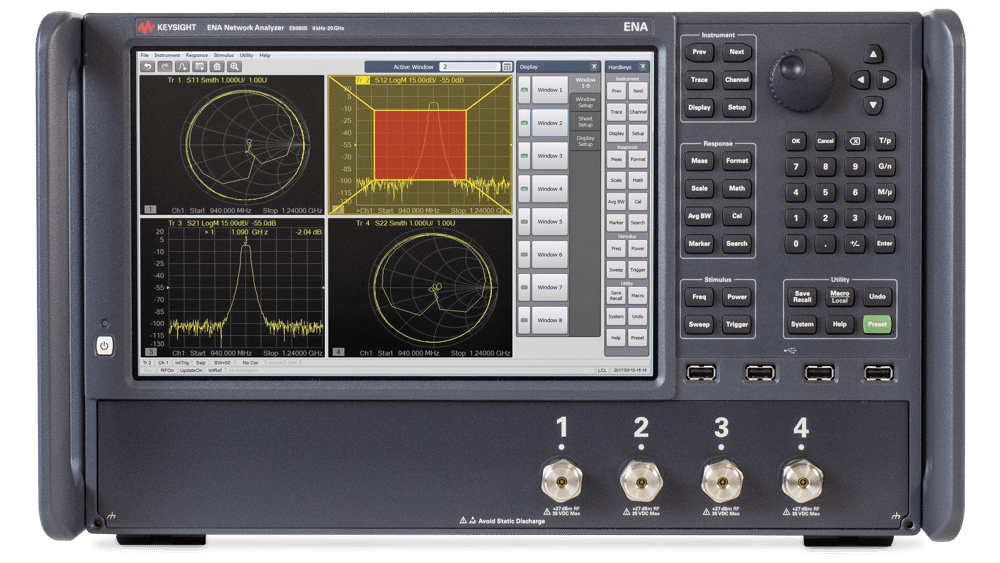

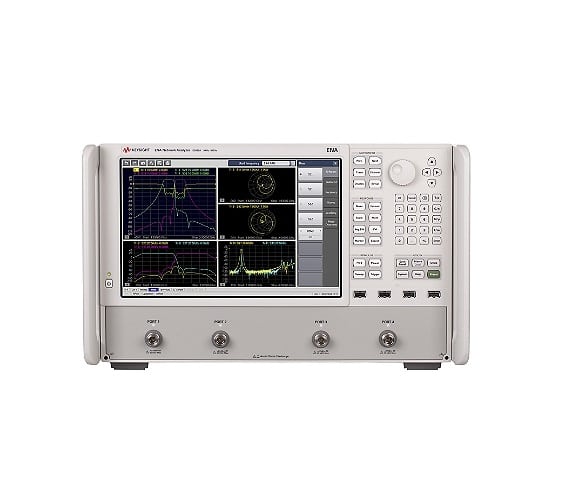

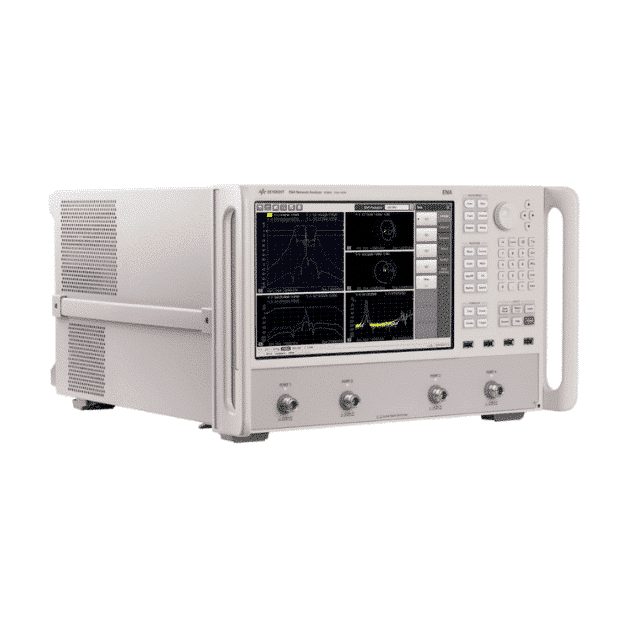

ENA Vector Network Analyzer - Keysight E5080A

ENA Vector Network Analyzer – Keysight E5080A

Call for Price

More features

Covers frequency ranges of 9 kHz to 4.5 GHz, 6.5 GHz, or 9 GHz, depending on the selected option.
Offers up to 135 dB dynamic range, enabling precise measurements even in challenging RF environments.
Available in 2-port and 4-port configurations with built-in bias tees for added flexibility.
Supports both mechanical calibration kits (e.g., 85033E) and electronic calibration (ECal) modules for quick and accurate system setup.
Includes frequency, power, and segment sweeps, as well as advanced features for comprehensive testing scenarios.
Equipped with a 12.1-inch touchscreen, providing an easy-to-navigate interface for setup, control, and real-time visualization of measurements.
Features LAN, USB, and optional GPIB interfaces, enabling seamless integration into automated test setups and networks.

SPECIFICATIONS ENA VECTOR NETWORK ANALYZER – KEYSIGHT E5080A

General technical data
Frequency range	9 kHz to 4.5 GHz (Option 245, 445) 9 kHz to 6.5 GHz (Option 265, 465) 9 kHz to 9 GHz (Option 295, 495)
Dynamic range	135 dB (spec, 10 Hz IFBW) 152 dB (typical, 3 Hz IFBW)
Test port	2 or 4-port, 50 Ω
Trace noise	0.0015 dBrms (spec, 10 kHz IFBW) 0.0005 dBrms (typical, 10 kHz IFBW)
Measurement speed (401 pts, 200 MHz span, uncorrected)	3 ms
Source power	– 90 to +15 dBm (spec) – 110 to +17 dBm (typical)

Channels	200
Sweep modes	Frequency sweep: Linear/logarithmic Power sweep: Variable power levels for S-parameters
Markers	15/trace
Measurement parameters	S-parameters (single-ended, mixed-mode), Absolute power
Software capabilities	Automatic fixture removal, time-domain analysis, frequency offset mode, scalar and vector mixer/ converter measurement, gain compression measurements, measurement wizard assistant. Fixture simulator, Equation editor, PMAR (power meter as receiver)
Automation	Remote control with SCPI commands, 8753/E5071C code emulation, BenchVue
Multiport test set	E5092A
Display	12.1 inch Box height: 6U
Other major hardware capabilities	High stability oven (option), Bias tees, DC input ports
Calibration kits	Mechanical Calibration Kits: Keysight 85032F, 85033E, 85092C,… Electronic Calibration Modules (ECal): N4433A, N4435A, N4436A,… (which simplify calibration processes).

Keysight E5080A: High-Performance Network Analyzer

The Keysight E5080A is a versatile and high-performance instrument designed for accurate RF and microwave network analysis. It is ideal for applications such as component characterization, design validation, and manufacturing testing. Offering precision measurements, it combines advanced technology with ease of use to deliver superior results in various frequency ranges.

The E5080A is a reliable tool for engineers and researchers who demand accurate, flexible, and efficient RF and microwave measurements. It is highly adaptable to various testing requirements, providing a robust platform for modern network analysis.
