Thiết bị pha loãng khí dung ATI TDA-D (AEROSOL DILUTER)

ATI TDA 100 Diluter

Features

Compatible with any 1 cfm particle counter
Can be plumbed in series for alternate dilution configurations
Applications: Pharmaceutical manufacturers & Medical facilities and cleanrooms
Available in 10:1 and 100:1 dilution ratio configurations
Works with any type of aerosol challenge, including PSL, PAO, DOP, and NaCl

Description
Additional information

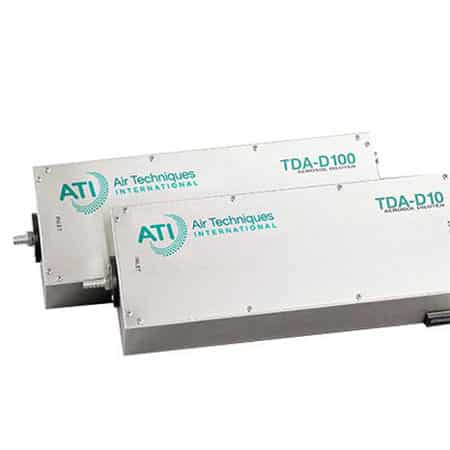

ATI TDA-D SERIES AEROSOL DILUTERS

Designed for the specialized needs of the high efficiency particulate (HEPA) filter testing industry, the ATI TDA-D Series aerosol diluters enhance the effectiveness of optical particle counters by diluting the upstream concentration of aerosol to measurable levels.

Placed between the aerosol source and a particle counter, these diluters minimize pressure drop and aerosol loss while preventing saturation of the particle counter.

Versatile technology The ATI TDA-D series aerosol diluters are compatible with any 1cfm particle counter. They are available in 10:1 and 100:1 versions and work with any type of aerosol challenge, including PSL, PAO, DOP and NaCl. Each and every TDA-D Series Diluter is configured to customer specific requirements.
Product Configuration TDA-D Series Diluters are available in 10:1 and 100:1 dilution options and can be plumbed in series to achieve additional dilution configurations.
