Thông số kỹ thuật Cần Siết Lực TechAngle®Torque Wrench
Range, ft-lb:
1-20 | ATECH1FS240 |
12.5–250 | ATECH3FR250B |
Range, in-lb:
12–240 | ATECH1FS240 |
150–3,000 | ATECH3FR250B |
Gear Action:
5° | ATECH1FS240 |
4.5° | ATECH3FR250B |
Color:
Chrome | ATECH1FS240 |
Black Housing/Chrome Body | ATECH3FR250B |
Country Of Origin:
USA
Storage Case:
PBATECH240M | ATECH1FS240 |
PBATECH250B | ATECH3FR250B |
Gear Teeth
72 | ATECH1FS240 |
80 | ATECH3FR250B |
Battery, Type (qty)
Lithium Metal (1) | ATECH1FS240 |
AA Alkaline (3) | ATECH3FR250B |
Head Depth, inches
7/16 | ATECH1FS240 |
3/4 | ATECH3FR250B |
Length, inches
11.6 | ATECH1FS240 |
26.6 | ATECH3FR250B |
Flex Joint Repair Kit
TECH1FRATA | ATECH1FS240 |
RKRSX936JT | ATECH3FR250B |
Head Width, inches
7/8 | ATECH1FS240 |
1-5/8 | ATECH3FR250B |
1.36–27.12 | ATECH1FS240 |
16.9–339 | ATECH3FR250B |
Ratchet Service Kit
RKRTR72A | ATECH1FS240 |
RKRS80A | ATECH3FR250B |
Head Type
Sealed Flex Head | ATECH1FS240
ATECH3FR250B |
Square Drive, inches
1/4 | ATECH1FS240 |
1/2 | ATECH3FR250B |
Weight (without batteries), lb (kg)
.93 (.42) | ATECH1FS240 |
3.75 (1.68) | ATECH3FR250B |
Range, ft-lb | 5–100 |
Flex-Joint Repair Kit | TECH2FRATA |
Range, in-lb | 60–1,200 |
Gear Action | 5° |
Color | Chrome |
Country Of Origin | USA |
Storage Case | PBQD2 |
Gear Teeth | 80 |
Battery, Type (qty) | Lithium Metal (1) |
Head Depth, inches | 1-1/16 |
Length, inches | 15.4 |
Head Width, inches | 1-3/16 |
Range, N•m | 7–135 |
Ratchet Service Kit | RKRFBO |
Head Type | Sealed Flex Head |
Square Drive, inches | 3/8 |
Weight (without batteries), lb (kg) | 1.6 (.73) |
Tính năng Cần Siết Lực TechAngle®Torque Wrench

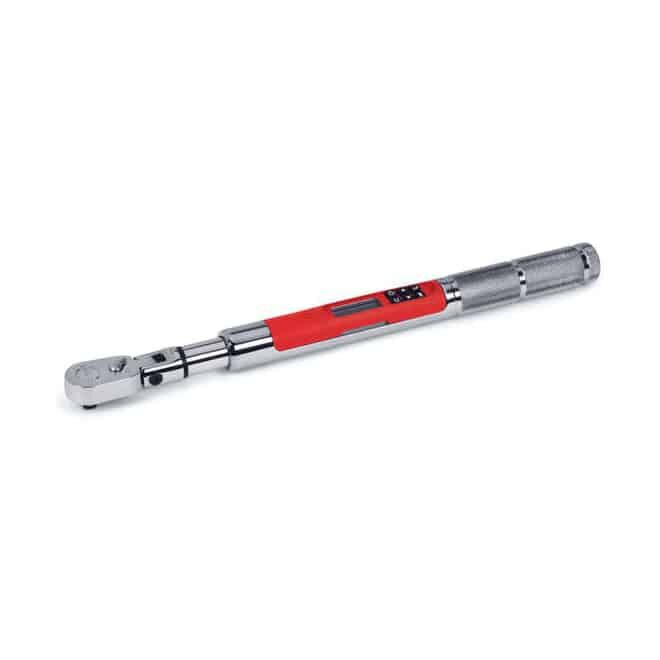

+ Model ATECH1FS240 TECHANGLE® TORQUE WRENCH
– Compact steel body electronic torque wrench based on ATECH STEEL design; 11.6″ L and .90″ Diameter
– Ability to get in tight recesses makes it an ideal torque wrench for close clearance applications (valve covers)
– Knurled handle provides a secure, non-slip gripping surface
– 72 tooth gear (1/4″ drive) and 80 tooth gear (3/8″ drive)
– (4) alert modes (LCD, LED, vibratory, audible)
– Flex yoke design (15°)
– ±2% CW and 3% CCW (20–100% FS)
– (5) scale references (ft-lb, in-lb, N•m, Kg-cm, dNm)
– Same features as existing ATECH series torque wrenches
– Uses (1) AA battery
– Only weighs .93 lb
– Patent pending
– Two year warranty
+ Model ATECH3FR250B TECHANGLE® TORQUE WRENCH
– Torque: 12.5–250 ft-lb
– Torque Accuracy: ±2% CW and ±3% CCW, 20–100% of the full scale
– Angle accuracy: ±1% of reading, ±1° at angular velocity >10°/sec <180°/sec
– Angle range: 0–360°
– Five measurement modes (ft-lb, in-lb, N•m, Kgcm, angle)
– Dual progressive LEDs allow the user to see active torque at various work positions; enables the user to anticipate torque and slow down as they get closer to desired torque level
– Torque-then-angle allows the user to torque fasteners and then switch to angle without removing the torque wrench from the fastener
– Textured grip offers a comfortable, non-slip surface
– Flared end prevents your hand from slipping off during high-leverage applications
– Ratchet mechanism features Snap-on® Dual 80® Design—only 4.5° of ratchet arc
– Cycle counter to ensure how many fasteners have been torqued
– Motorcycle-style handle with seamless textured grip offers a comfortable, non-slip surface
– Low-profile buttons protect against accidental activation
– Protected end cap design with solid brass contacts prevents accidental loosening and ensures continuity
– Highly configurable ten presets with the ability to customize numerous functions (sleep mode, LCD display, calibration, etc.) and store up to 50 records
– Torque then angle allows the user to torque fasteners and then switch to angle without removing the torque wrench from the fastener
– Large LCD screen numbers become larger and bolder during active torque making it easier to read during use
– Four alert modes (LCD, Dual LED, Audible, Vibratory)
– Features an internal translation feature that allows the user to select a language for the LCD to display (English, French, German or Spanish)
– Long battery life: 80 hours continuous use
– Uses (3) AA alkaline batteries (included)
– Two-year warranty
+ Model ATECH2FM100 TECHANGLE® TORQUE WRENCH
– With a working torque range of 5–100 ft-lb, a technician can work on a wide range of automotive applications
– Compact length (15-3/8″) and handle diameter (1″) allow access to tight engine compartments
– New, heavy-duty yoke designed to accept higher torque loads
– All metal construction including the ratchet, yoke, tube, and handle for durability
– Knurled handle for a secure grip; left-hand metal battery cap resists unintended loosening
– Snap-on® 80 tooth ratchet for the optimal blend of strength and reduced swing arc (4.5°)
– Patent-pending Snap-on® Multi-Axis Gyro Compensation provides a high level of accuracy even while in a flexed position
– Includes standard ATECH features such as dual progressive LED’s, large, backlit LCD screen, four alert modes, multiple measurement modes and presets, power interruption technology, and more
– Two-year warranty
Bảo hành
Snap-on Repair Center, 2 YEARS from Date of Purchase, Repair or Calibrate at Snap-on Repair Center.
Xem thêm Cần Siết Lực TechAngle® Models (Độ Chính Xác 2%)
ATECH2FM100 | Cần Siết Lực Electronic 3/8″ Drive Micro (5-100 ft-lb) ATECH2FM100
ATECH3FR250B | Cần Siết Lực 1/2″ Drive TechAngle® Flex-Head (12.5–250 ft-lb) – ATECH3FR250B
ATECH1FS240 | Cần Siết Lực 1/4″ Drive Flex-Head TechAngle® Micro Torque Wrench (12-240 in-lb) – ATECH1FS240
