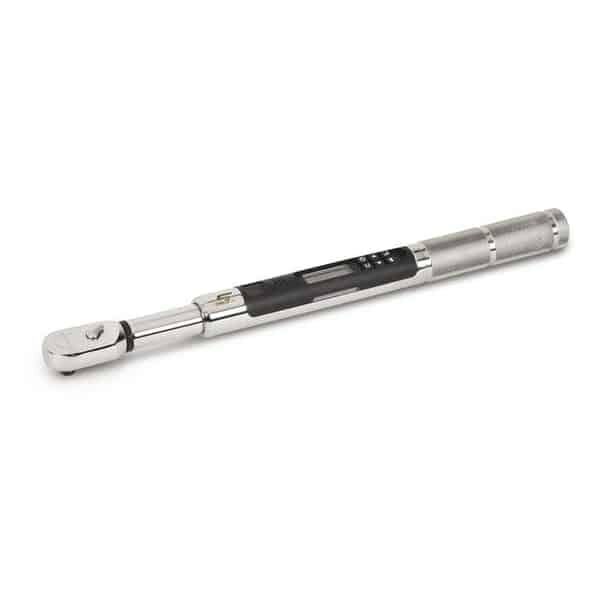

Cần Siết Lực Công Nghiệp Snap-On ControlTech® Industrial Torque Wrench

CTECH1MR240

Tính năng

• Convenient data download via USB cable

• Fully programmable with job mode and lock-out features

CTECH1MR240 | 1/4″ (12-240 in-lb) – Click để xem chi tiết sản phẩm

CTECH2MR1200 | 3/8″ (60–1,200 in-lb; 6.8–135.6 N•m) – Click để xem chi tiết sản phẩm

CTECH3FR250A | 1/2″ (12.5–250 ft-lb) – Click để xem chi tiết sản phẩm

CTECH4R600A   | 3/4″ (30–600 ft-lb) – Click để xem chi tiết sản phẩm

Thông số kỹ thuật Cần Siết Lực Công Nghiệp Snap-On ControlTech® Industrial Torque Wrench

Torque Range, ft-lb:

1–20

CTECH1MR240

5–100 CTECH2MR1200
12.5–250

CTECH3FR250A

30–600

CTECH4R600A

Torque Range, in-lb:

12–240

CTECH1MR240

60–1,200 CTECH2MR1200
150–3,000

CTECH3FR250A

360-7,200

CTECH4R600A

All Steel Body:

Yes

CTECH1MR240

Yes CTECH2MR1200

Length, inches (mm):

11.6 (295)

CTECH1MR240

15.4 (391) CTECH2MR1200
26.7 (678)

CTECH3FR250A

48.6 (1,234)

CTECH4R600A

Gear Action:

CTECH1MR240

4.5° CTECH2MR1200

CTECH3FR250A

11°

CTECH4R600A

Torque Accuracy:

±2% clockwise: ±3% counter-clockwise

Shank Diameter, inches

Storage Capacity, readings:

1,500

CTECH1MR240

CTECH2MR1200

Country Of Origin

USA

Storage Case

Included CTECH2MR1200
Yes CTECH4R600A

Gear Teeth

72

CTECH1MR240

80 CTECH2MR1200

CTECH3FR250A

32

CTECH4R600A



Number of Presets:

50

CTECH1MR240

CTECH2MR1200

Torque Range, N•m:

1.36–27.12

CTECH1MR240

6.8–135.6 CTECH2MR1200
16.9–339

CTECH3FR250A

40.7–813.5

CTECH4R600A

Batteries Included, (qty)

AA Lithium Metal (1) CTECH2MR1200

Length, inches

15.4 CTECH2MR1200

Angle Range:

0–360°

CTECH1MR240

CTECH2MR1200

Weight, lb (kg)

0.93 (0.42)

CTECH1MR240

1.6 (.73) CTECH2MR1200
4.5 (2.10)

CTECH3FR250A

10.5 (4.8)

CTECH4R600A

Ratchet Service Kit:

CTECH3FR250A
RKRQC4 CTECH4R600A

Head Type:

Fixed Head

CTECH1MR240

CTECH2MR1200

Sealed Flex Head CTECH3FR250A

CTECH4R600A

Square Drive, inches:

1/4

CTECH1MR240

3/8 CTECH2MR1200
1/2

CTECH3FR250A

3/4

CTECH4R600A

Tính năng Cần Siết Lực Công Nghiệp Snap-On ControlTech® Industrial Torque Wrench

Mỗi models Cần Siết Lực Công Nghiệp Snap-On ControlTech® Industrial Torque Wrench sẽ có các tính năng nổi bật sau:

+ Models CTECH1MR240

– Convenient data download via USB cable

– Fully programmable with job mode and lock-out features

– Time-based automatic calibration due indicator

– Steel construction for durability

– More than twice the ANSI® B107:300 battery life

– 168 x 48 LCD screen resolution displays torque and angle applied values

– Factory-provided, NIST®-tracable calibration certificate included

– Visual, tactile and audible feedback

– 2-year warranty

+ Models CTECH2MR1200

– Micro-sized to allow access to difficult-to-reach fasteners

– FOD-proof USB door

– Extreme drop protection with rugged gyro

– Easy battery replacement with new 1 pc end-cap/battery holder design

– Steel construction for durability

– High-efficiency booster circuit enables single lithium AA design allowing 40 hours of continuous use

– Improved low range accuracy

– Improved LED progression

– User settable battery type provides linear indicator performance

– Two-year warranty

+ Models CTECH3FR250A

– Torque: 12.5–250 ft-lb

-Torque Accuracy: ±2% CW and ±3% CCW, 20-100% of full scale

– Angle Accuracy: ±1% of Reading, ± 1° @ Angular Velocity >10°/Sec <180°/Sec

– Angle range: 0–360°

– Torque and angle combo modes provide the most accurate and fastest way to achieve torque plus angle in a single motion

– Built-in calibration factor for different head lengths

– Dual side LED indicator lights with configurable settings including customizable passwords

– Large LCD screen with backlight

– Four indicator modes: LCD, LED, audible and vibratory

– Rugged, all-steel body for strength

– 50 presets with lockout ability

– Sequence programming and job mode

– USB downloadable data

– Storage capacity: 1,500 readings

– Number of presets: 50

– Operating temperature: 0–130 °F (-18–54 °C)

– Storage temperature: 0–130 °F (-18–54 °C)

– Humidity: up to 90% Non-condensing

– Includes storage case

– Complies with ISO®-6789-2003 and ASME® B107.300 (B107.28) standards for electronic torque instruments

+ Models CTECH4R600A

– Torque: 30–600 ft-lb

– Torque Accuracy: ±2% CW and ±3% CCW, 20-100% of full scale

– Angle Accuracy: ±1% of Reading, ± 1° @ Angular Velocity >10°/Sec <180°/Sec

– Angle range: 0–360°

– Torque and angle combo modes provide the most accurate and fastest way to achieve torque plus angle in a single motion

– Built-in calibration factor for different head lengths

– Dual side LED indicator lights with configurable settings including customizable passwords

– Large LCD screen with backlight

– Four indicator modes: LCD, LED, audible and vibratory

– Rugged, all-steel body for strength

– 50 presets with lockout ability

– Sequence programming and job mode

– USB downloadable data

– Storage capacity: 1,500 readings

– Number of presets: 50

– Operating temperature: 0–130 °F (-18–54 °C)

– Storage temperature: 0–130 °F (-18–54 °C)

– Humidity: up to 90% Non-condensing

– Includes storage case

– Complies with ISO®-6789-2003 and ASME® B107.300 (B107.28) standards for electronic torque instruments

Cần Siết Lực Công Nghiệp Snap-On ControlTech® Industrial Torque Wrench

Bảo hành

Snap-on Repair Center, 2 YEARS from Date of Purchase, Repair or Calibrate at Snap-on Repair Center.

Xem thêm Cần Siết Lực Công Nghiệp Snap-On ControlTech® Industrial Torque Wrench

CTECH1MR240 | 1/4″ (12-240 in-lb)

CTECH2MR1200 | 3/8″ (60–1,200 in-lb; 6.8–135.6 N•m)

CTECH3FR250A | 1/2″ (12.5–250 ft-lb)

CTECH4R600A   | 3/4″ (30–600 ft-lb)
