SPECIFICATIONS DC POWER MODULE – KEYSIGHT N6753A
General technical data |
|
| Output Ratings | Voltage: 0 – 20 V
Current: 0 – 50 A Power: 300 W |
Accuracy (at 23°C ±5°C) |
Voltage programming accuracy: 0.06% + 10 mV
Current measurement (readback) accuracy: 0.1% + 30 mA |
| Output Ripple & Noise | Constant voltage Peak-to-Peak: 5 mV
Constant voltage RMS: 1 mV Constant current RMS: 10 mA |
| Load Regulation | Voltage: 2 mV
Current: 12 mA |
| Source Regulation | Voltage: 0.5 mV
Current: 5 mA |
| Programming Accuracy | Voltage: ±(0.06% + 10 mV)
Current: ±(0.1% + 30 mA) |
| Measurement Accuracy | Voltage: ±(0.05% + 10 mV)
Current: ±(0.1% + 30 mA) |
| Transient Response | Settling Band: ±30 mV
Recovery Time: <100 µs for 50% to 100% and 100% to 50% load changes. |
| Operating Temperature | 0°C to 40°C |
| Compatibility | Integrates with Keysight N6700 Modular Power System Family and N6705C Power Analyzer |

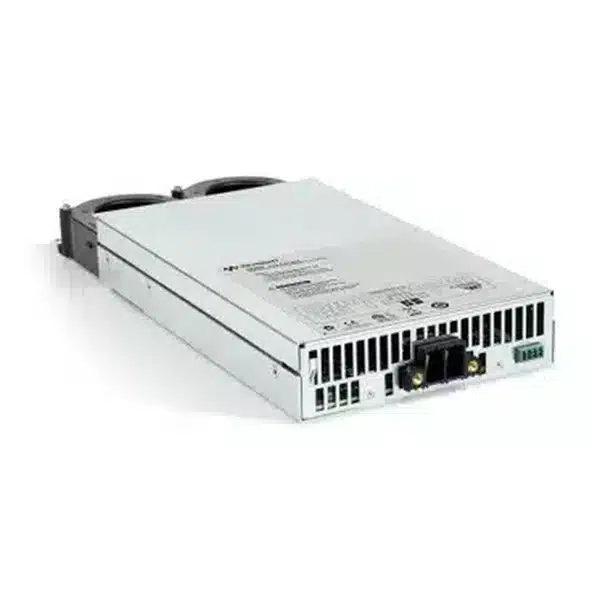

N6753A High-Performance Autoranging DC Power Module, 20V, 50A, 300W
The Keysight N6753A High-Performance Autoranging DC Power Module is designed for advanced applications requiring precision, speed, and flexibility in power testing. Offering an output range of 0–20 V and up to 50 A, with a maximum power capacity of 300 W, it features autoranging capabilities that adapt to a variety of voltage and current combinations. This makes it ideal for testing a wide range of devices without needing multiple power supplies.
The N6753A delivers excellent performance with low output ripple and noise (5 mV peak-to-peak, 1 mV RMS) and fast transient response times under 100 µs, ensuring stability even during dynamic load changes. Its high accuracy, with programming and measurement precision as tight as ±0.05% for voltage, ensures reliable results for sensitive applications. Integrated into the N6700 modular system, it enables seamless compatibility with Keysight’s advanced power analysis tools, such as waveform generation and data logging, making it a powerful solution for R&D, validation, and automated test setups.
What is the Keysight N6753A used for?
Stable test power supply
Load simulation and testing
Power consumption and efficiency measurement
Keysight N6753A — frequently asked questions
Where can I buy a genuine Keysight N6753A in Vietnam?
How much does the Keysight N6753A cost?
Is the Keysight N6753A covered by warranty and calibration?
Request a quote for the DC power module – Keysight N6753A
Techmaster engineers advise on the configuration and quote the same day.
