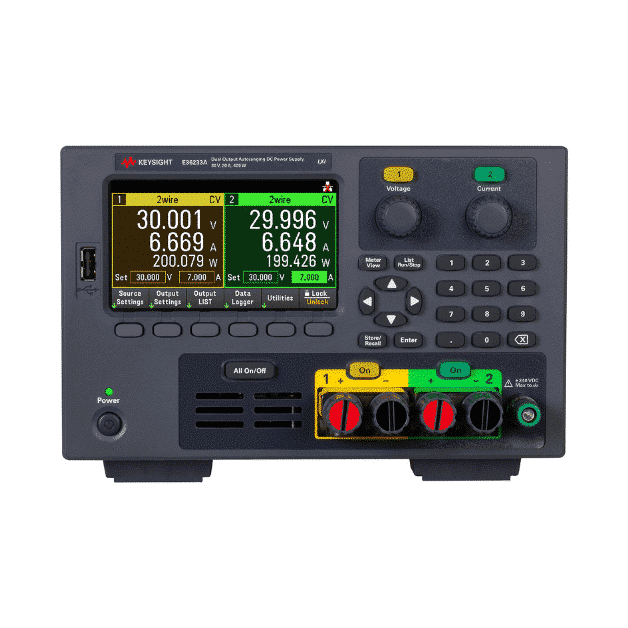

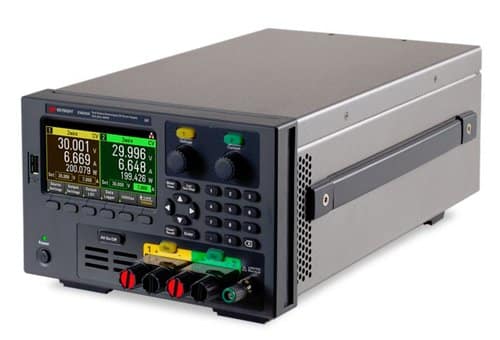

DC Power Supply – Keysight E36233A

SPECIFICATIONS DC POWER SUPPLY – KEYSIGHT E36233A

E36233A 400W Autoranging Dual Output Power Supply, 30V, 20A

The Keysight E36233A Autoranging Dual Output DC Power Supply is a powerful, flexible tool for engineers working on devices that demand reliable and precise power. The E36233A provides two independent outputs, each capable of delivering up to 30 V and 20 A, with a combined total power output of 400 W. With autoranging technology, the E36233A adapts seamlessly to varying voltage and current requirements, offering unmatched flexibility for diverse applications.

The E36233A ensures excellent load and line regulation (<0.01%) and low ripple and noise (<4.5 mV peak-to-peak), providing clean and stable power for sensitive devices. Its high programming accuracy (±0.03% + 4 mV for voltage) allows precise output control, essential for rigorous testing. The E36233A features a 4.3-inch color LCD display for real-time data visualization and includes advanced functions such as data logging, output sequencing, and LIST mode. Additionally, the E36233A supports auto-series and auto-parallel operations, enabling outputs to combine for higher voltage or current needs. With LAN, USB, and optional GPIB interfaces, the E36233A integrates easily into automated test setups, making it a critical tool for R&D and manufacturing tasks.
