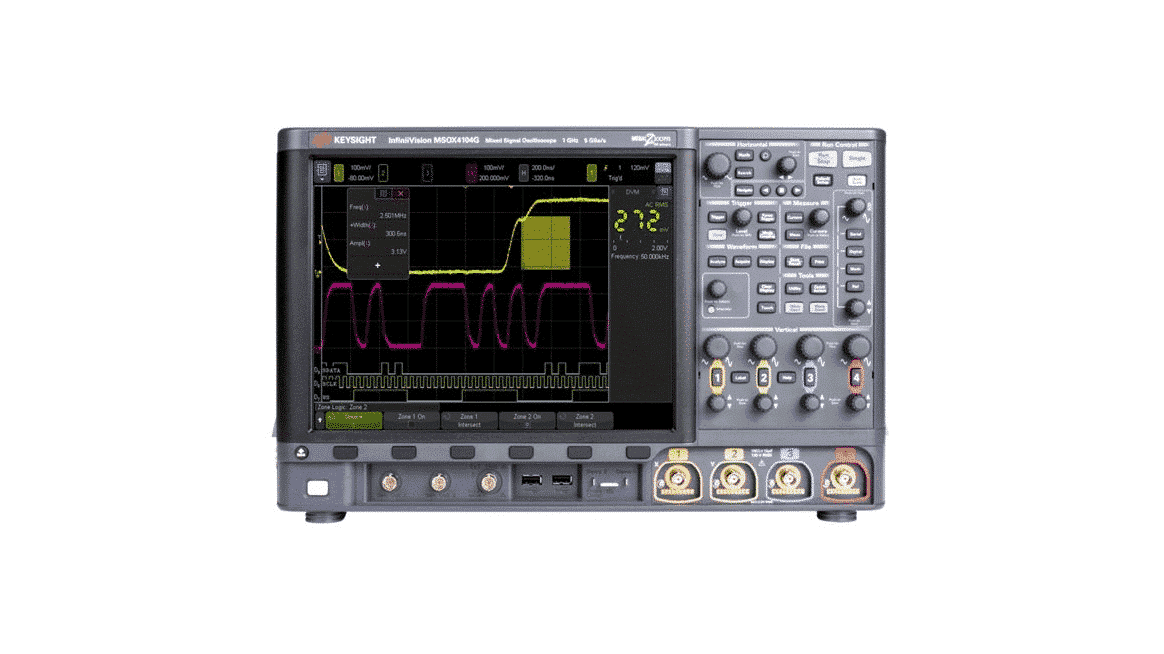

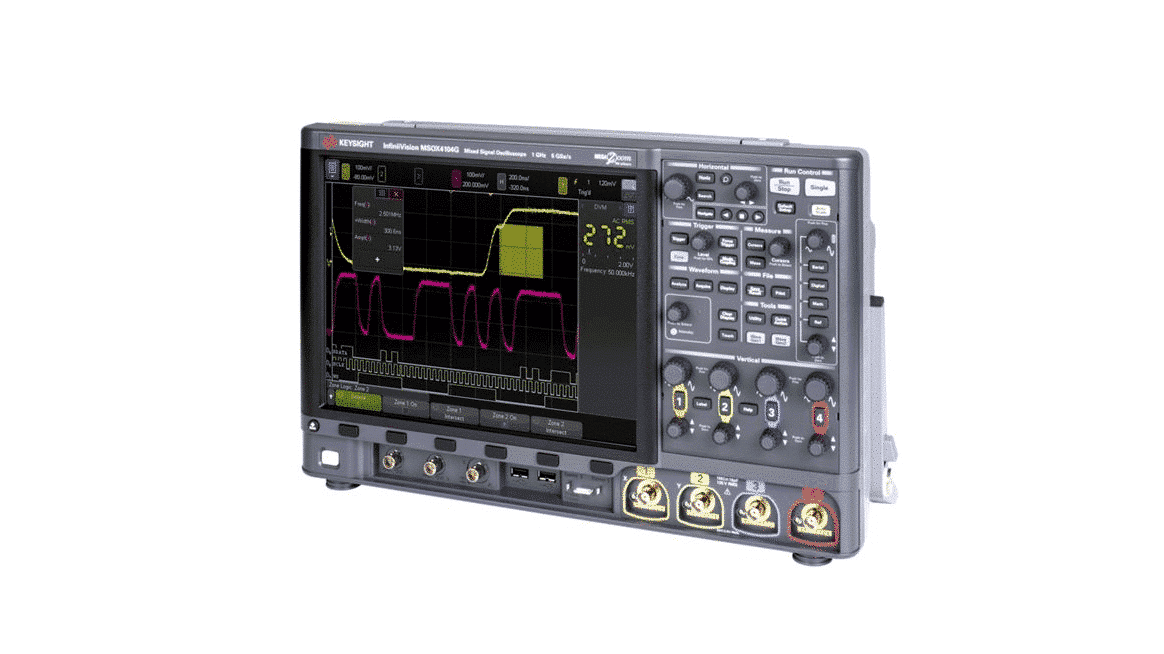

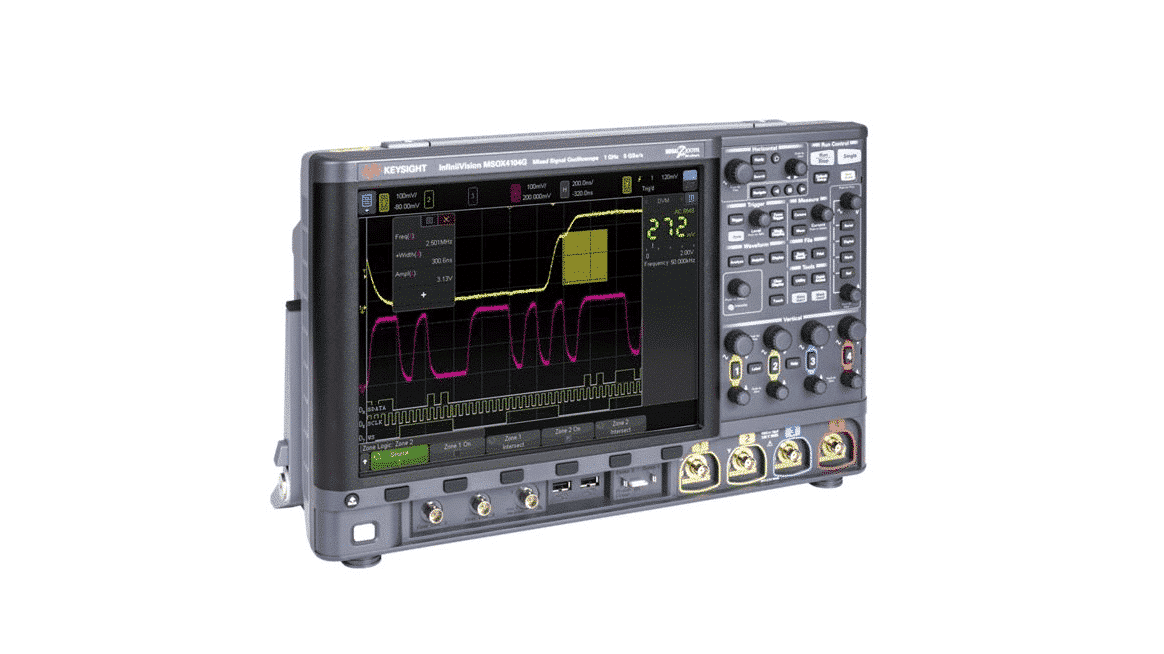

Keysight MSOX4104G Mixed Signal Oscilloscope

Keysight MSOX4104G Mixed Signal Oscilloscope – 1 GHz, 4 Analog + 16 Digital Channels

Overview

The Keysight MSOX4104G, part of the 4000 X-Series, is a high-performance mixed signal oscilloscope offering exceptional visualization, precision, and usability. With 1 GHz bandwidth, 4 analog and 16 digital channels, and advanced measurement tools, it is built for engineers who need speed, clarity, and expandability.

Applications

Perfect for embedded systems debugging, digital protocol analysis, mixed-signal testing, and R&D applications. Its intuitive 12.1-inch capacitive touchscreen and InfiniiScan Zone triggering enable rapid signal isolation and analysis.

Technical Specifications

• Bandwidth: 1 GHz

• Channels: 4 analog + 16 digital channels

• Sample Rate: Up to 5 GSa/s

• Memory Depth: 4 Mpts standard, segmented memory included

• Vertical Resolution: 8 bits

• Display: 12.1″ capacitive touchscreen, InfiniiScan Zone triggering

• Update Rate: 1,000,000 waveforms/second

• Trigger Types: Edge, Pulse Width, Runt, Timeout, Pattern, Setup/Hold, Serial protocol triggers

• Analysis Features: Waveform histograms, Measurement histograms, Serial decode, Mask testing

Integrated Features

• Multi-Instrument Capability: Oscilloscope, logic analyzer, protocol analyzer, arbitrary waveform generator (dual-channel 20 MHz), 3-digit DVM

• Frequency Response Analysis

• Upgradeable: Bandwidth, generators, analysis software can be added anytime

• Protocol Analysis: I²C, SPI, UART, CAN, LIN, and more

Hardware & Interface

• Included Accessories:

  • One N2894A 700 MHz passive probe per analog channel

  • One N2756-60001 16-channel MSO cable

  • Embedded software package (D4000GENB)

  • Documentation CD with localized guides

  • Localized power cord, front panel cover

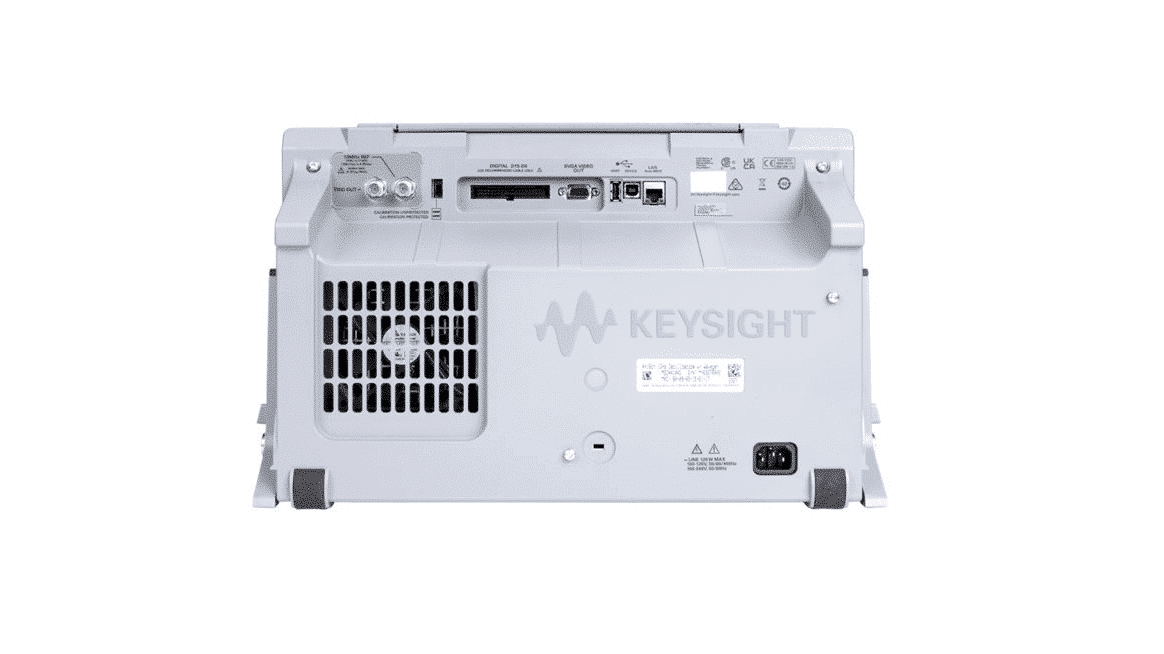

• Connectivity: USB, LAN, and probe interfaces

• OS & Control: Embedded operating system with multi-touch

Physical Specifications

• Dimensions: Compact benchtop design

• Weight: Approx. 8.5 kg

• Power Supply: 100–240 V AC, 50/60 Hz
