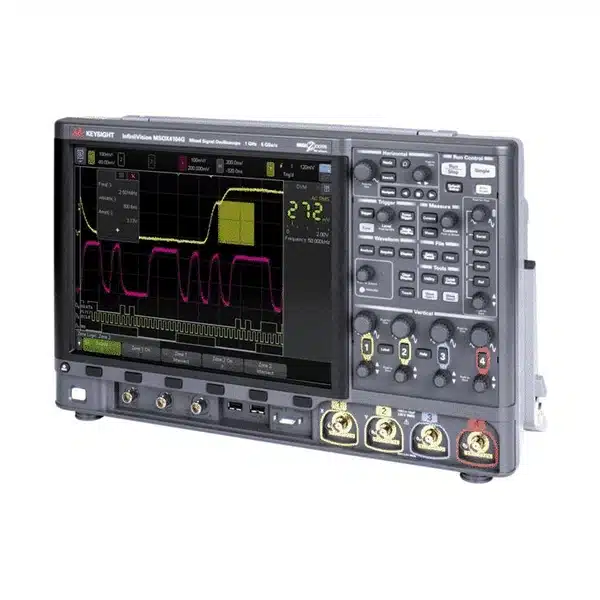

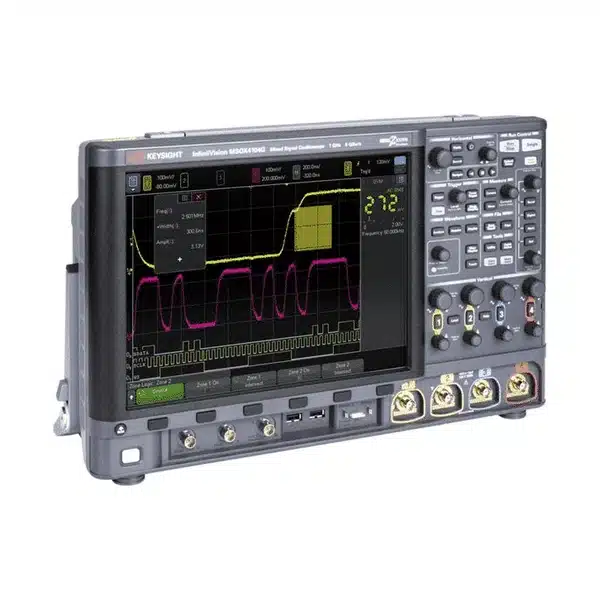

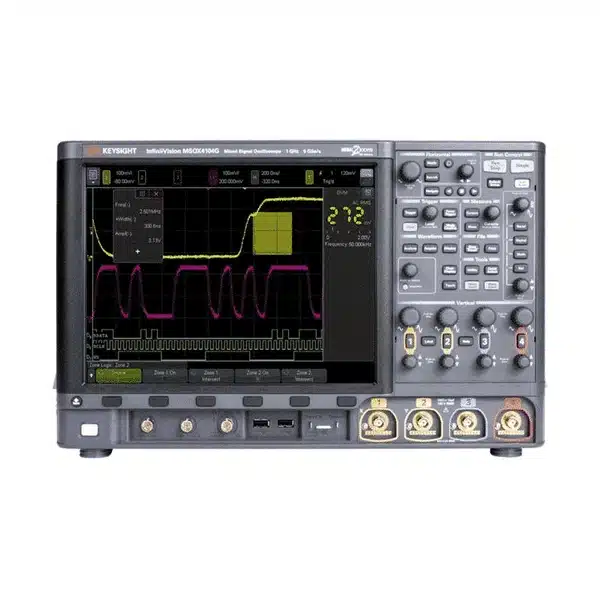

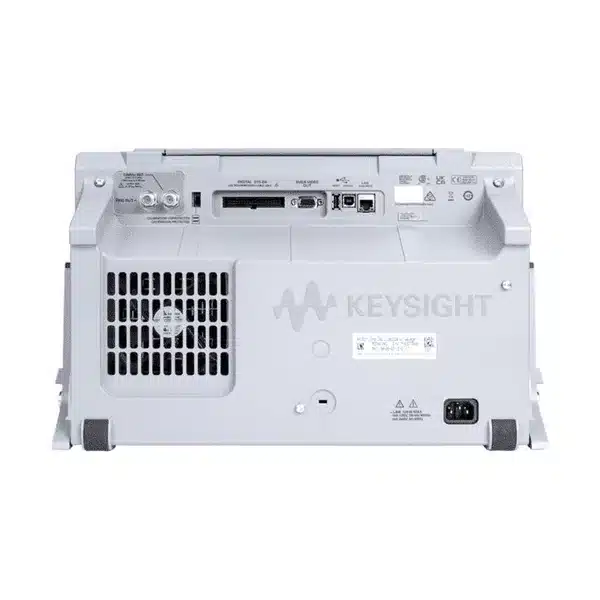

Keysight DSOX4154G High-Definition Oscilloscope

Keysight DSOX4154G – Oscilloscope, 1.5 GHz, 4 Analog Channels

Overview

The Keysight DSOX4154G is part of the 4000 X-Series oscilloscopes, providing 1.5 GHz bandwidth and 4 analog channels. Equipped with a 12.1-inch capacitive touch screen, InfiniiScan Zone touch triggering, and a fast 1,000,000 wfms/s update rate, it enables engineers to view, isolate, and analyze signals with exceptional clarity. With MegaZoom IV smart memory technology and segmented memory, it offers both deep signal visibility and efficient data capture.

Applications

Ideal for embedded system validation, power electronics design, and general-purpose signal debugging in high-speed environments.

Detailed Specifications

• Bandwidth: 1.5 GHz

• Channels: 4 analog

• Display: 12.1-inch capacitive touch screen

• Triggering: Exclusive InfiniiScan Zone touch triggering

• Memory: 4 Mpts standard memory with segmented memory

• Waveform Update Rate: 1,000,000 wfms/s

• Expandability: Upgradeable with digital channels (MSO), 20 MHz dual-channel arbitrary WaveGen, 3-digit DVM, serial trigger & analysis, and mask testing

What’s Included

• Embedded Software Package (D4000GENB)

• Waveform and measurement histograms

• Dual arbitrary waveform generators

• Frequency response analysis

• KeysightCare technical support

• 3-year warranty (90 days for unserialized accessories)

• Certificate of Calibration (2-year calibration interval)

• One N2894A 700 MHz passive probe (per channel)

• Localized interface, front panel overlay, and built-in help system (multi-language)

• Localized power cord

• Front panel cover

• Documentation CD (user’s guide, service guide, programmer’s manual)
