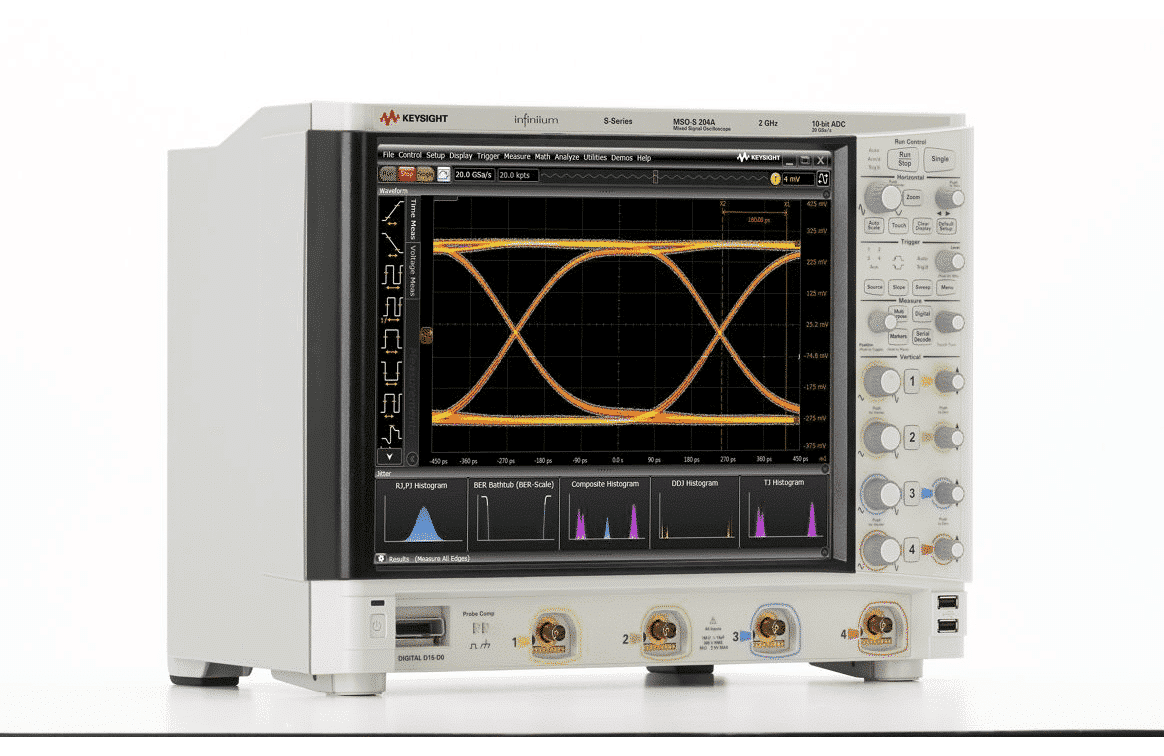

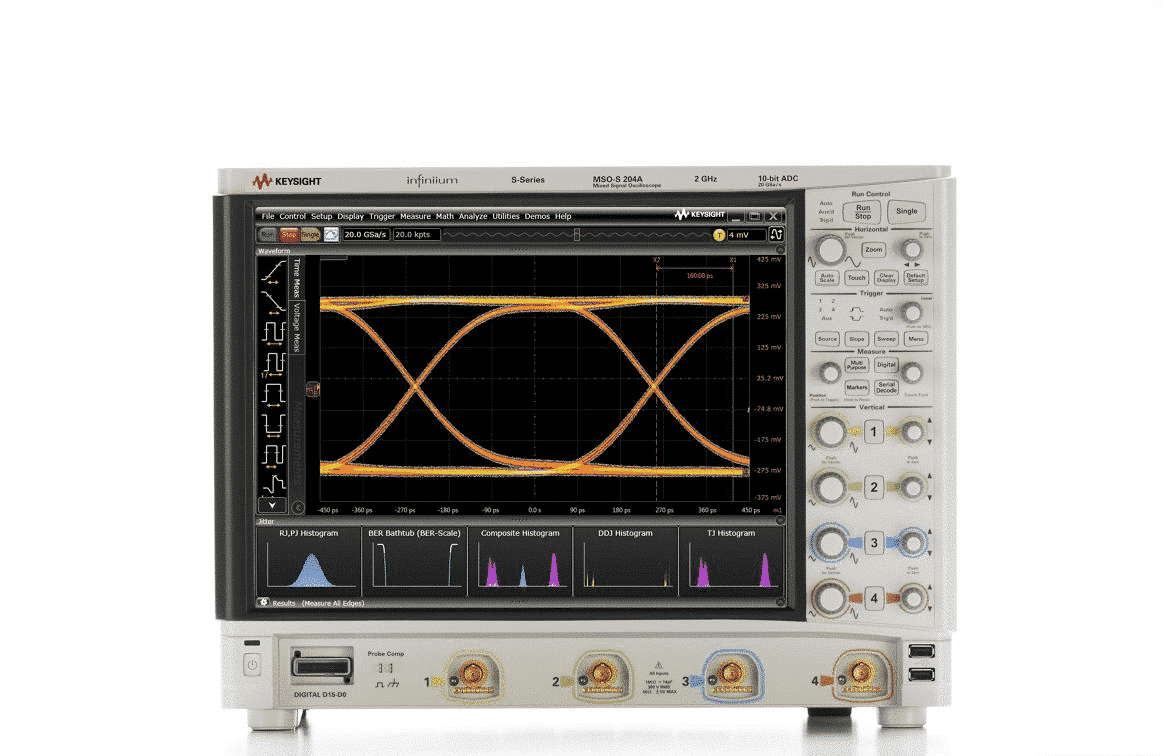

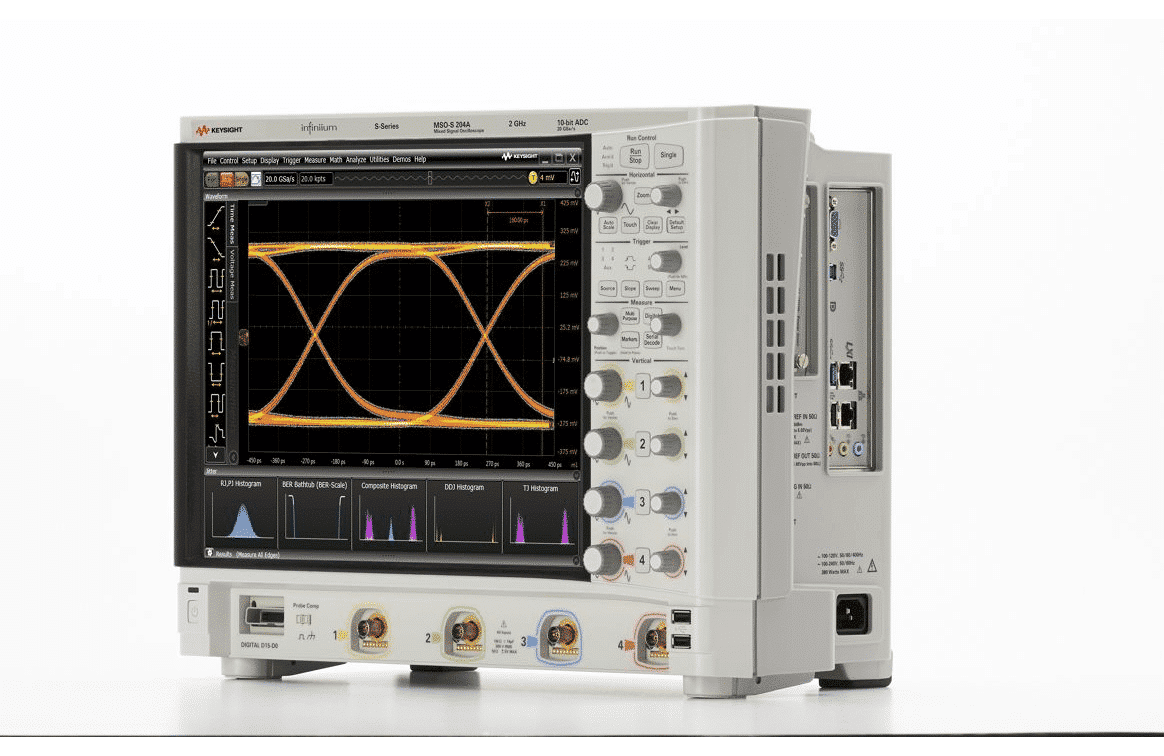

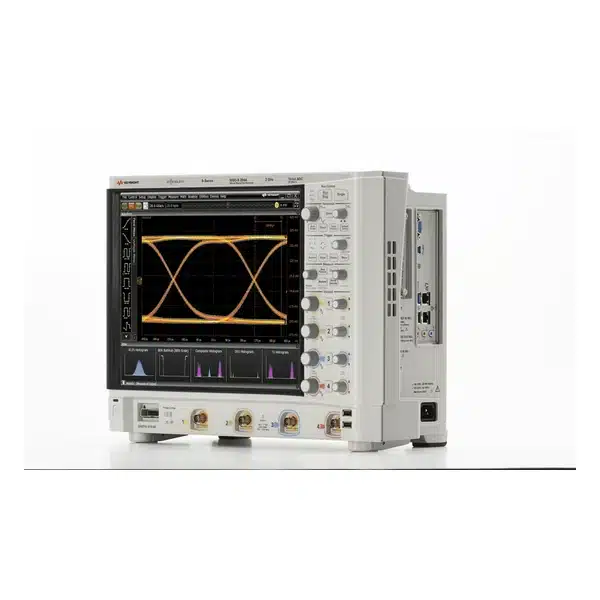

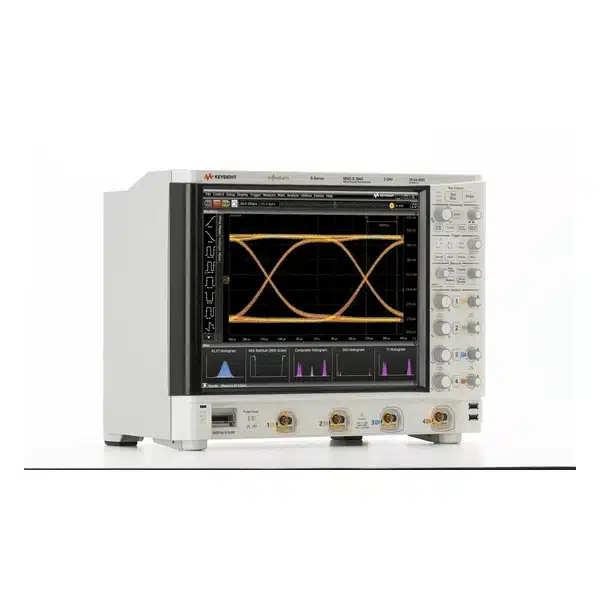

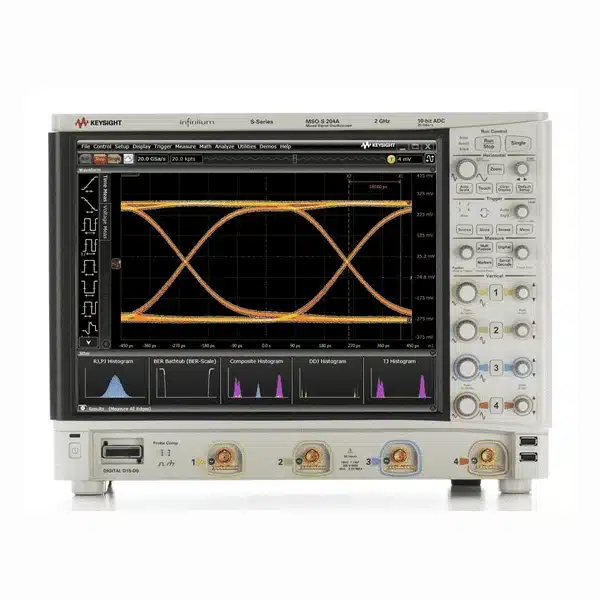

Keysight MSOS204A High-Definition Oscilloscope

Keysight MSOS204A High-Definition Oscilloscope – 2 GHz, 4 Analog + 16 Digital Channels

The Keysight MSOS204A is part of the high-performance S-Series oscilloscopes, offering 2 GHz bandwidth, 4 analog + 16 digital channels, and a 10-bit ADC for precise waveform capture and analysis. With a large 15-inch capacitive touchscreen, fast 20 GSa/s sampling, and advanced architecture supporting up to 16-bit vertical resolution, this scope is ideal for debugging embedded systems and high-speed designs.

Key Features:

• 2 GHz bandwidth (upgradeable based on future needs)

• 4 analog + 16 digital MSO channels

• Achieve up to 16-bit vertical resolution with advanced acquisition architecture

• 20 GSa/s sample rate, 100 Mpts/channel standard memory

• Outstanding signal fidelity with 8.1-bit average ENOB at full bandwidth

• 15-inch capacitive touchscreen with multi-touch gesture support and fast SSD boot

• Compatible with a wide range of protocol decode, compliance testing, and analysis software

What’s Included:

• 4 × N2873A 500 MHz passive probes

• Probe accessory pouch

• Keysight I/O Libraries Suite

• Localized power cord and front panel cover

• 8 GHz BNC calibration cable

• Keyboard and mouse

• User guide and programmer’s guide (on oscilloscope drive)

• 16-channel flying lead logic probe, MSO cable, and MSO calibration fixture
