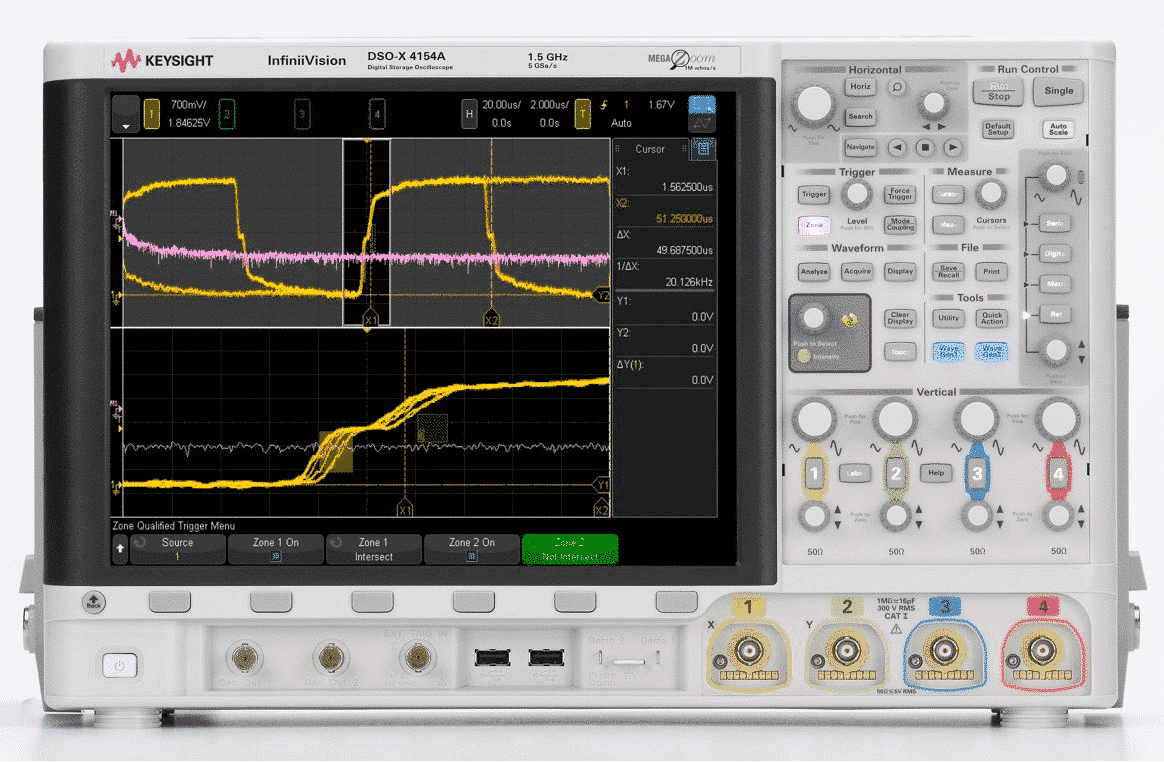

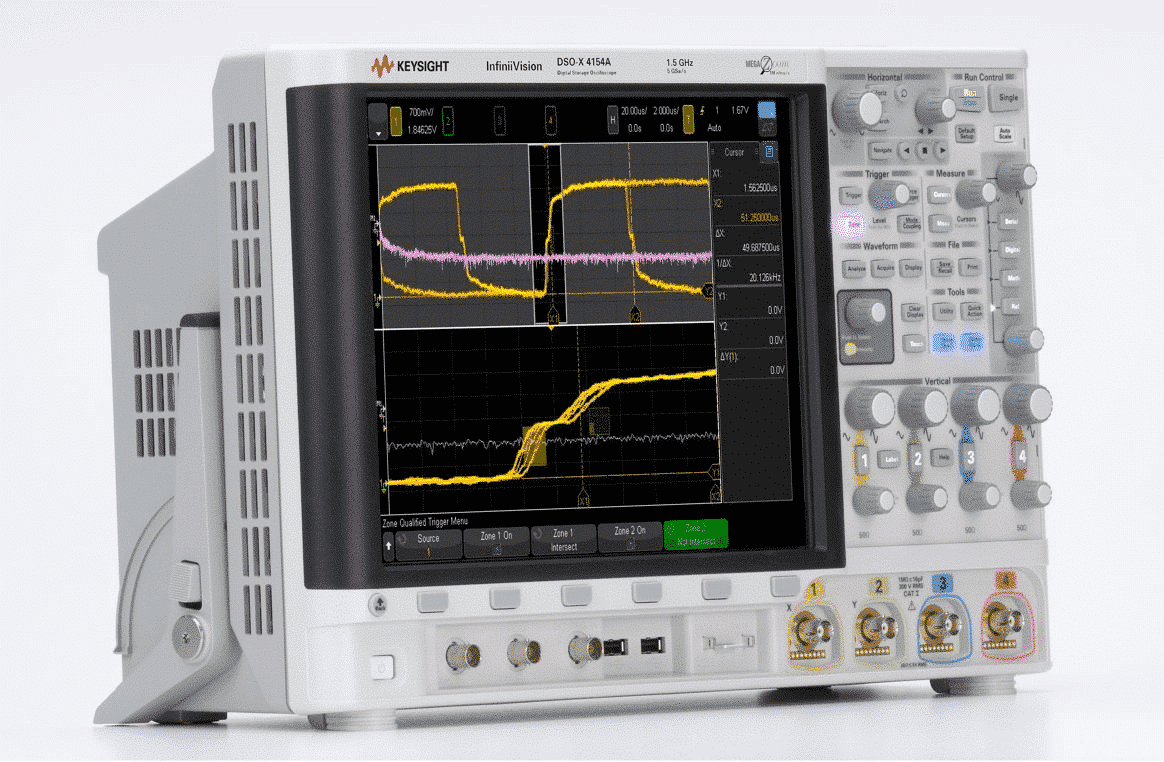

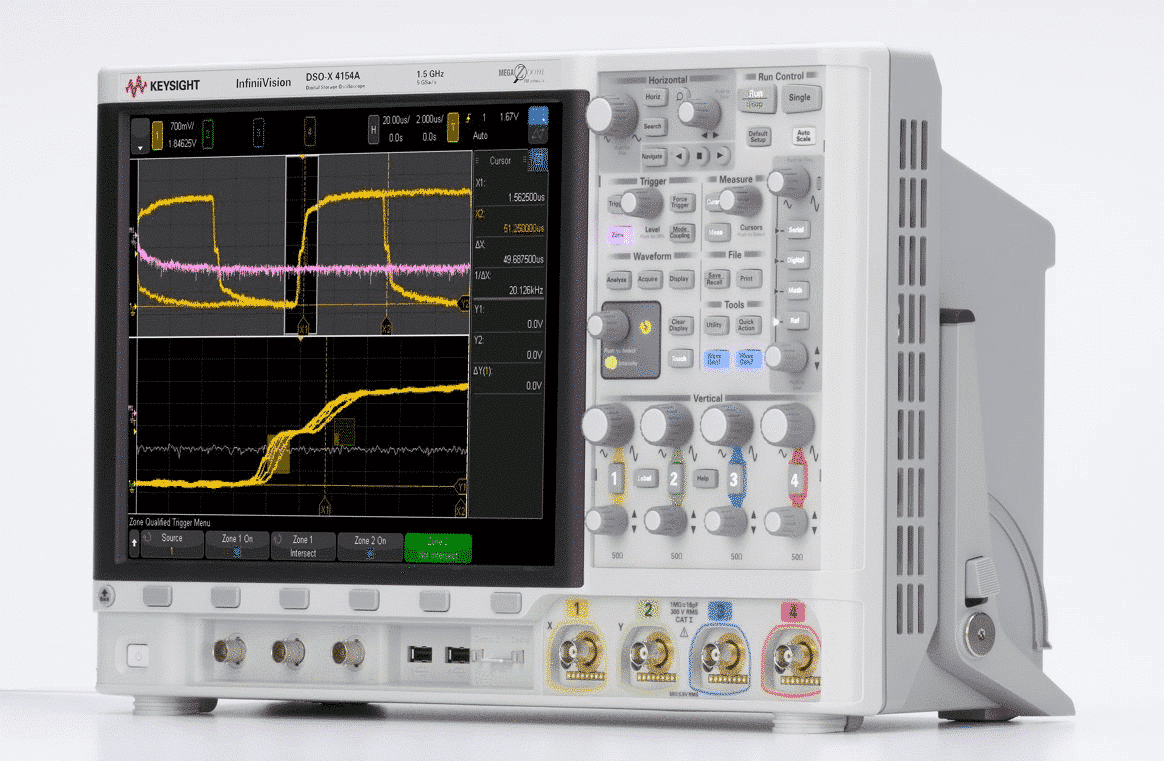

Keysight DSOX4154A High-Definition Oscilloscope

Keysight DSOX4154A – Oscilloscope, 1.5 GHz, 4 Analog Channels

Overview

The Keysight DSOX4154A oscilloscope, part of the 4000 X-Series, delivers 1.5 GHz bandwidth with 4 analog channels. Featuring a 12.1-inch capacitive touch display, InfiniiScan Zone touch triggering, and a fast 1,000,000 wfms/s waveform update rate, this oscilloscope is designed to help engineers capture and analyze signals quickly and accurately. With MegaZoom IV smart memory technology and segmented memory, it provides both depth and efficiency in measurement.

Applications

Well-suited for high-speed digital validation, embedded system debugging, and general-purpose electronic design and troubleshooting.

Detailed Specifications

• Bandwidth: 1.5 GHz

• Channels: 4 analog

• Display: 12.1-inch capacitive touch screen

• Triggering: Exclusive InfiniiScan Zone touch triggering

• Memory: 4 Mpts standard, segmented memory supported

• Waveform Update Rate: 1,000,000 wfms/s

• Expandability: Fully upgradeable to add digital channels (MSO), 20 MHz dual-channel arbitrary waveform generator, 3-digit DVM, serial trigger & analysis, and mask testing

What’s Included

• 3-year warranty (90 days for unserialized accessories such as passive probes)

• Certificate of Calibration (2-year calibration interval)

• One N2894A 700 MHz passive probe (10:1 attenuation) per channel

• Localized interface, front panel overlay, and built-in help system (multi-language)

• Localized power cord

• Front panel cover

• Documentation CD (user’s guide, service guide, programmer’s manual)
