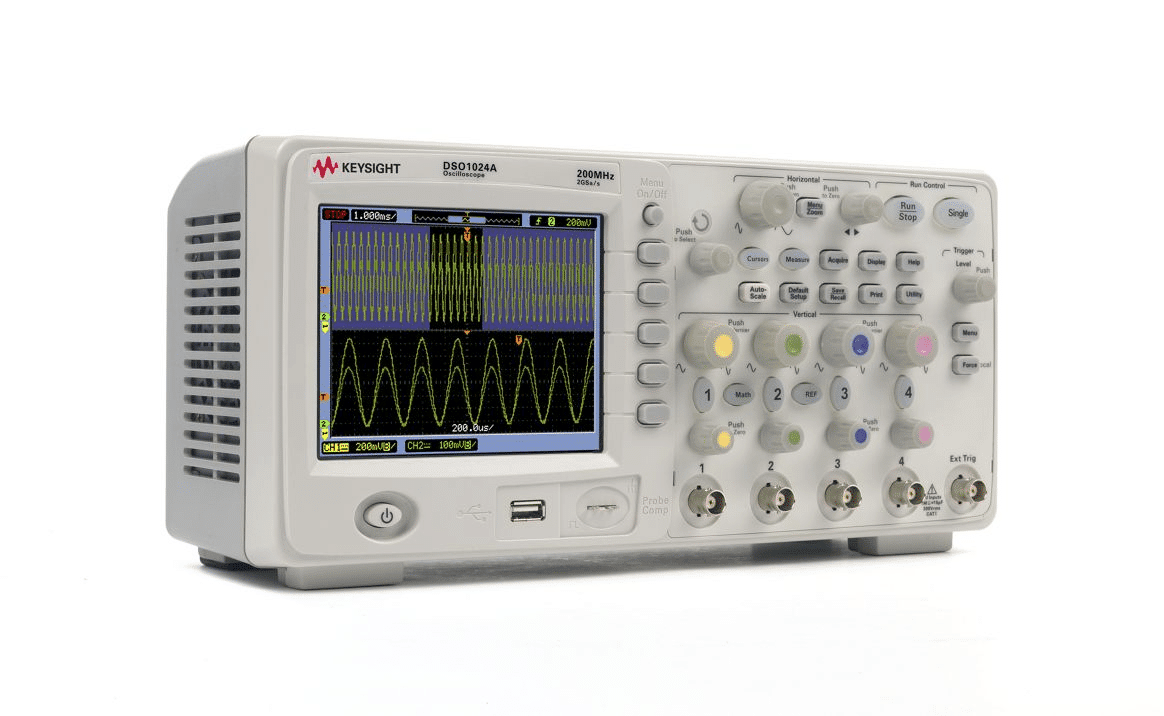

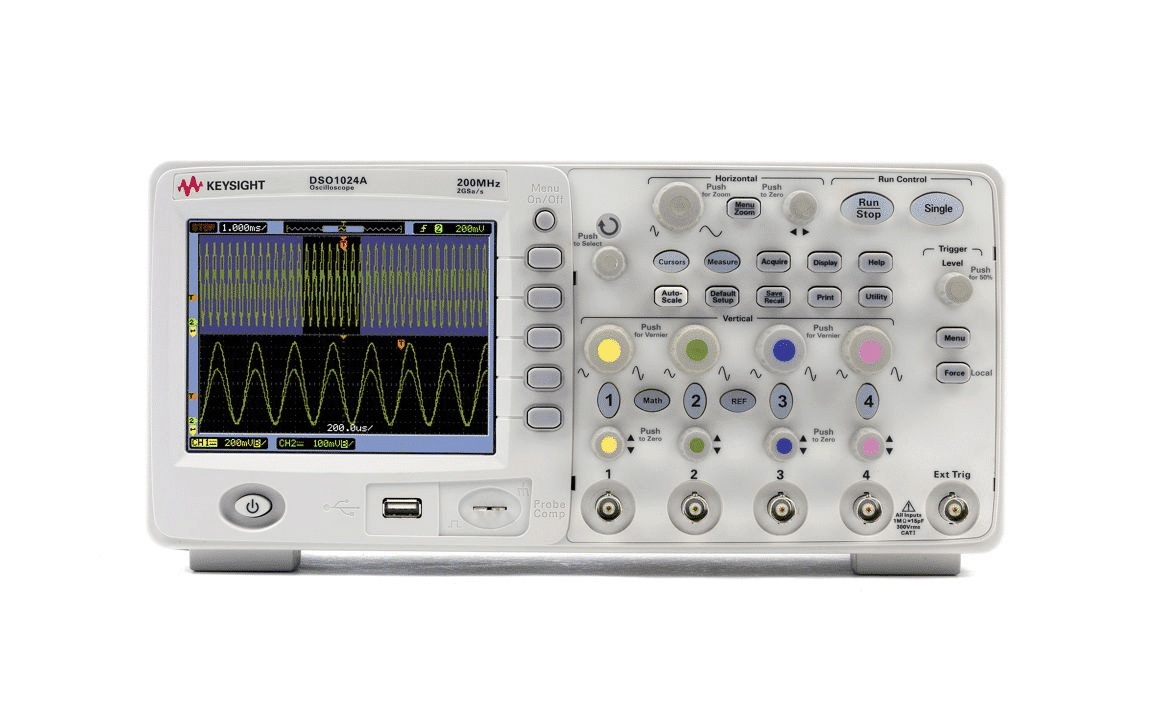

Keysight DSO1024A Oscilloscope – 200 MHz, 4 Analog Channels
Overview
The Keysight DSO1024A Oscilloscope is a versatile and reliable solution for engineers, researchers, and educators seeking accurate signal visualization and analysis. With a 200 MHz bandwidth and four analog channels, it delivers precise waveform capture and real-time signal diagnostics. The 20 kpts memory depth allows for detailed long-duration signal observation, while the 5.7-inch color LCD provides sharp, clear visualization of every detail.
Designed to enhance productivity, the DSO1024A offers 23 automatic measurements, advanced waveform math functions including FFT, and Go/No-Go mask testing for fast and efficient validation. The sequence mode supports up to 1000 trigger events, and built-in digital filters enable refined signal analysis. The oscilloscope also supports USB connectivity, remote programming, and includes a built-in help system in 11 languages — making it ideal for both industrial and educational environments.
Every DSO1024A unit includes the IntuiLink Toolbar software, documentation CD, localized front panel overlay (if applicable), power cord, and 300 MHz 10:1 passive probes for each input channel. Backed by a 3-year Keysight warranty, it ensures performance, durability, and dependable operation.
Key Specifications
- Bandwidth: 200 MHz
- Channels: 4 analog inputs
- Memory Depth: 20 kpts
- Display: 5.7-inch color LCD
- Auto Measurements: 23 types with FFT
- Sequence Mode: Up to 1000 triggers
- Connectivity: USB and remote control support
Key Features
- Sharp signal visualization on a bright color LCD
- Simplified testing with Go/No-Go mask and math analysis
- Fast data export via USB and IntuiLink software
- Multilingual interface and on-screen help
- Compact, durable design for lab and field use
Note: This product has been discontinued and will be replaced by Keysight DSOX1204A
Migrating from the DSO1024A to a current configuration
Keysight has discontinued the DSO1024A. Techmaster keeps this page as a specification reference and to support installed units — ISO/IEC 17025 calibration, repair and accessories remain fully available.
According to Keysight’s official product page, the recommended replacement for DSO1024A is:
DSOX1204A Keysight Oscilloscope
available from Techmaster.
Source: Keysight official product page — DSO1024A (“Replacement Product” section). Contact a Techmaster engineer on 0908 173 345 for migration advice.
Keysight DSO1024A key features
- 200 MHz
- 4 analog channels
- Capture long time periods with high resolution and 20 kpts memory
- See signals more clearly with a 5.7-inch color LCD display
- Speed analysis with 23 auto measurements and waveform math, including FFT
- Simplify testing with go/no go mask testing, sequence mode (1000 trigger events), and digital filters
- Increase productivity with built-in help in 11 languages, USB connectivity, and free student lab guide
- Get flexibility with remote programming
Source: official Keysight product page (https://www.keysight.com/us/en/product/DSO1024A/oscilloscope-200-mhz-4-analog-channels.html)
