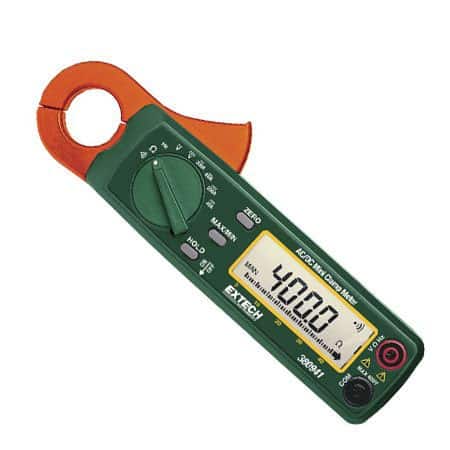

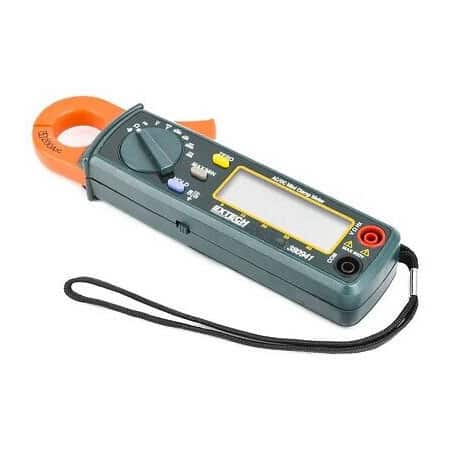

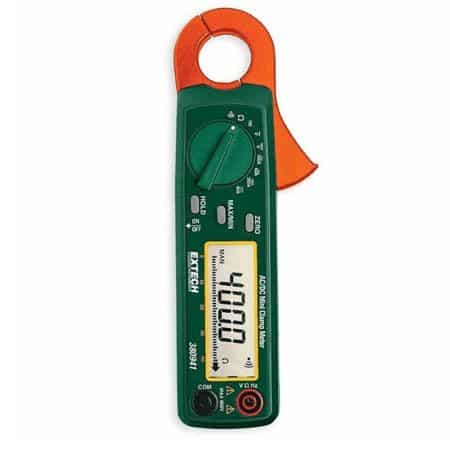

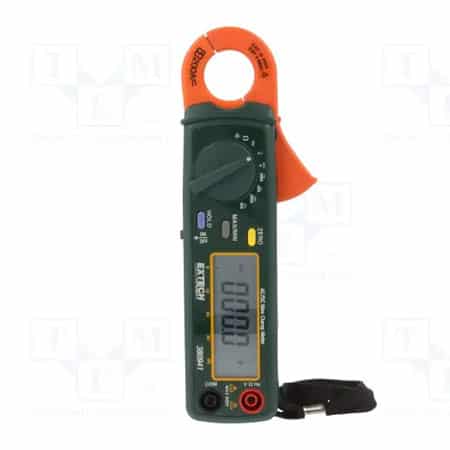

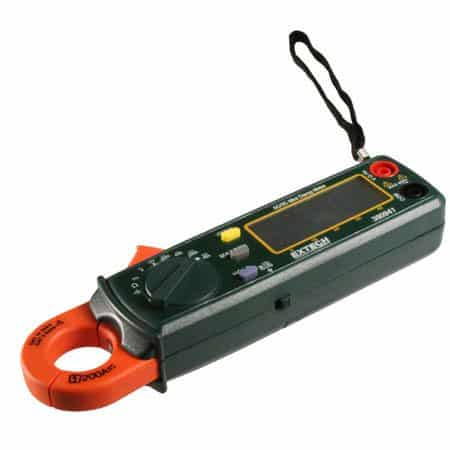

EXTECH 380941 200A AC/DC MINI CLAMP METER



Features

  • 0.9″ (23mm) jaw opening
  • High resolution to 10mA AC/DC
  • Voltage, Resistance, and Frequency
  • Fast 40 segment bargraph
  • One touch Auto Zero for DC Current measurements
  • Min/Max, Data hold and Auto power off

SPECIFICATIONS EXTECH 380941 200A AC/DC MINI CLAMP METER

Display counts: 4000 count LCD

Jaw size/Cable size: 0.9″ (23mm); 4/0 AWG

AC Current: 40A, 200A

DC Current: 40A, 200A

Max Resolution: 0.01A AC/DC

Basic ACA Accuracy (% rdg): ±1.0%

AC Voltage (Max Res.): 400V (0.1V)

DC Voltage (Max Res.): 400V (0.1V)

Resistance (Max Res.): 400Ω (0.1Ω)

Frequency (Max Res.): 100kHz (0.001Hz)

Diode/Continuity: Continuity

Data Hold: Yes

Min/Max: Yes

Dimensions/Weight: 7×1.75×1.25″ (178x45x32mm)/ 8oz (225g)

Introduction Extech 380941

High resolution mini clamp with Voltage, Frequency, and Resistance

The compact Extech 380941 is a 200 Amp mini AC/DC clamp meter with a small diameter jaw designed to reach in small areas while providing 10mA resolution (DC) and very low-current sensitivity. This mini AC/DC clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. The 380941 has a CAT III 300-Volt safety rating and a one year warranty. Comes with batteries and manual.

Ampe kìm Extech 380941 (9)

Features Extech 380941

– 0.9″ (23mm) jaw opening
– High resolution to 10mA AC/DC
– Voltage, Resistance, and Frequency
– Fast 40 segment bargraph
– One touch Auto Zero for DC Current measurements
– Min/Max, Data hold and Auto power off

Extech Brand

Extech Instruments was established in 1971, it has focused on Test and Measurement tools built for the professionals, tradesperson and DIY’ers. When it comes to tools that help prevent, identify and troubleshoot problems in a plethora of applications; whether it’s electrical, mechanical, maintenance, safety or environmental applications, Extech products are trusted by the professionals and are put to the test every day. With over 45 years, Extech is renowned as one of the largest manufacturers and suppliers of innovative, quality handheld test, measurement and inspection tools in the world. Sold in over 100 countries around the world, Extech’s success is supported by a far-reaching network of dedicated and knowledgeable distributors who introduce new users to Extech every day.
