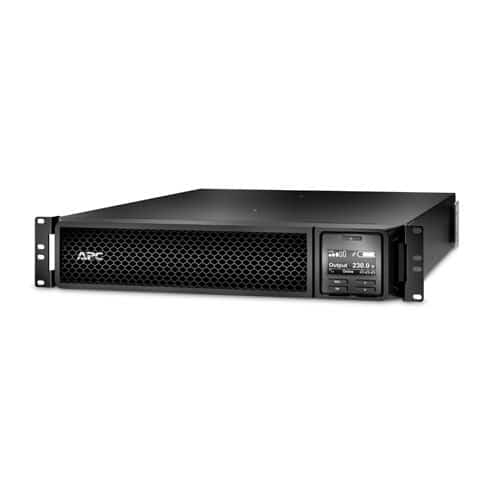

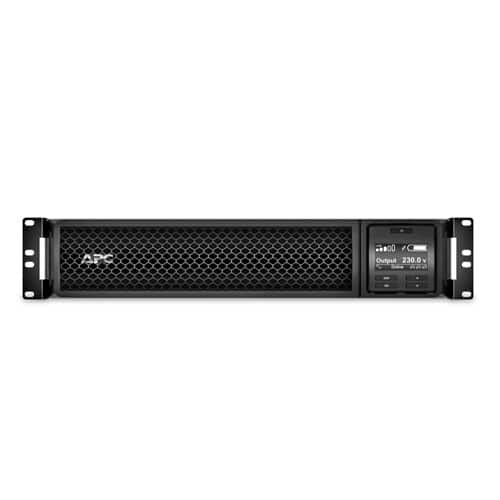

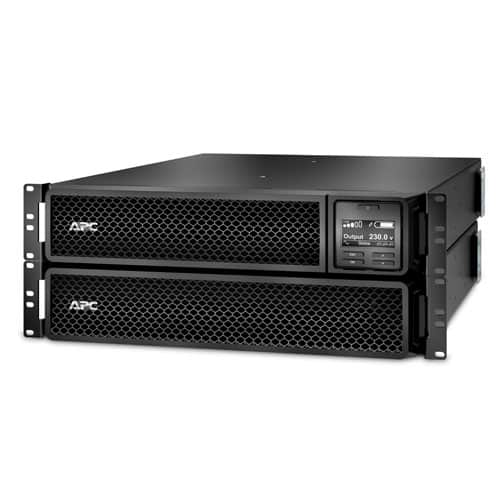

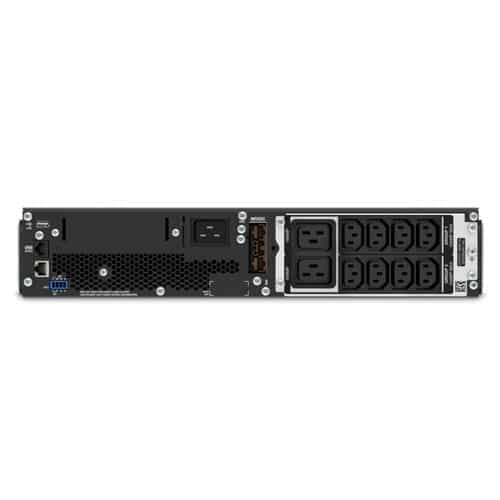

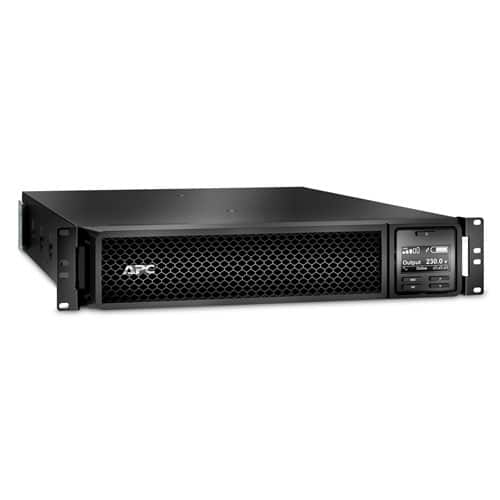

APC SRT3000RMXLI Smart-UPS On-Line (3kVA, 230V)

Introduce APC Smart-UPS On-Line SRT3000RMXLI

SPECIFICATIONS APC Smart-UPS On-Line SRT3000RMXLI

Overview

Presentation:  High density, double-conversion on-line power protection with scalable runtime.

Lead time:  Usually in Stock

Main

Main Input Voltage: 230 V

Other Input Voltage:

220 V

240 V

Main Output Voltage: 230 V

Other Output Voltage:

220 V

240 V

Rated power in W: 2700 W

Rated power in VA: 3000 VA

Input Connection Type:

BS1363A British

IEC 60320 C20

Schuko CEE 7 / EU1-16P

Output connection type:

8 IEC 60320 C13

2 IEC Jumpers

2 IEC 60320 C19

Number of rack unit: 2U

Cable length: 2.44 m

Number of cables: 1

Battery type: Lead-acid battery

Provided equipment:

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Rack mounting support rails

USB cable

Warranty card

General of APC Smart-UPS On-Line SRT3000RMXLI

Product web sub-family: High density

Number of power module free slots: 0

Number of power module filled slots: 0

Redundant: No

Physical.

Colour: Black

Height: 8.5 cm

Width: 43.2 cm

Depth: 63.5 cm

Net weight: 31.3 kg

Mounting location: Front

Mounting preference: Lower

Mounting mode: Rack-mounted

Two post mountable: 0

USB compatible: Yes

Mounting position: Horizontal

Input

Network frequency: 40…70 Hz auto-sensing

Input voltage limits: 100…275 V adjustable (half load)

Output of APC Smart-UPS On-Line SRT3000RMXLI

Maximum configurable power in W: 2700 W

Harmonic distortion: Less than 2 %

Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Crest factor: 3 : 1

UPS type: Double conversion online

Wave type: Sine wave

Bypass type: Internal bypass (automatic and manual)

Maximum configurable power in VA: 3000 VA

Conformance of APC Smart-UPS On-Line SRT3000RMXLI

Product certifications:

CE
EAC
RCM
VDE

Marking: CE Mark

Standards:

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation: 0…40 °C

Relative humidity: 0…95 % non-condensing

Operating altitude: 0…10000 ft

Ambient air temperature for storage: -15…45 °C

Storage Relative Humidity: 0…95 % non-condensing

Storage altitude: 0.00…15240.00 m

Acoustic level: 55 dBA

Heat dissipation: 703 Btu/h

IP degree of protection: IP20

Batteries & Runtime

Number of battery filled slots: 1

Battery recharge time: 3 h

Number of battery replacement quantity: 1

Additional information: Configurable for 220 : 230 or 240 nominal output voltage

Battery voltage: 96 V

Battery charger power: 168 W rated

Battery power in VAH: 505 VAh runtime

Battery life: 3…5 year(s)

Replacement battery: APCRBC152

Battery option:

SRT96RMBP 1 1515 VAh
SRT96RMBP 2 2525 VAh
SRT96RMBP 3 3535 VAh
SRT96RMBP 4 4545 VAh
SRT96RMBP 5 5555 VAh
SRT96RMBP 6 6565 VAh
SRT96RMBP 8 8585 VAh
SRT96RMBP 10 10605 VAh

Extended runtime: 1

Communications & Management of APC Smart-UPS On-Line SRT3000RMXLI

Free slots: 1

Alarm: Audible and visible alarms: prioritized by severity

Emergency power off: Yes

Surge Protection and Filtering

Surge energy rate: 340 J

Packing Units

Unit Type of Package 1: PCE

Number of Units in Package 1: 1

Package 1 Height: 24.6 cm

Package 1 Width: 59.9 cm

Package 1 Length: 87.1 cm

Package 1 Weight: 39.92 kg

Offer Sustainability

Sustainable offer status: Green Premium product

REACh Regulation: REACh Declaration

EU RoHS Directive:

Compliant
EU RoHS Declaration

Mercury free: Yes

RoHS exemption information: Yes

Environmental Disclosure: Product Environmental Profile

Circularity Profile: End of Life Information

WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Optimized Energy Efficiency: Energy efficient product

Take-back: Take-back program available

Introduce APC Smart-UPS On-Line SRT3000RMXLI

APC Smart-UPS On-Line SRT3000RMXLI provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. It is a versatile system that can support loads ranging from 1 kVA to 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. For situations where critical systems require runtime in hours rather than minutes, the Smart-UPS On-Line can be configured with multiple battery packs to meet demanding runtime requirements. To ensure smooth and controlled shutdown of network operating systems, the Smart-UPS On-Line includes PowerChuteTM Network Shutdown management software.

Features APC Smart-UPS On-Line SRT3000RMXLI

Best-in-class power density

More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA, Unity on 1-1.5 kVA unites and 6 kVA – 10 kVA units.

High-efficiency “green mode”

Achieves 98 percent efficiency, which saves utility and cooling costs without compromising performance or reliability

Graphical LCD display with multicolor backlight

Intuitive interface provides detailed and accurate information with ability to configure locally.

Intelligent battery management

Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.

Built-in energy meter

Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.

Operate without battery

Ability to immediately protect equipment when power returns after a complete discharge of the battery.

Embedded network management card with environmental monitoring (5 kVA – 10 kVA models)

Remote monitoring and control of the UPS and the environment via Ethernet connection while freeing up the SmartSlotTM so customers can add accessories for additional  communication options.

Switched outlet group(s)

Ability to control a group of output load receptacles independent from the main UPS. Enables:

• Rebooting hung device without cyclingthe entire UPS

• Sequenced turn ON/OFF

• Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload)

• Scheduled time OFF to conserve energy

Emergency power off

Remote UPS shutoff in the event of a fire or other emergency. The UPS can accept normally open (NO) or normally closed (NC) contacts.

Communication ports

Serial, USB, Ethernet, and SmartSlot for network accessory cards.

Communication protocols

Modbus serial, USB PowerSummary, HTTP, SNMP, and Telnet.

1:1, 3:1 input hard-wire options

Product can be wired for 3-PH or 1-PH input (230 V, 8 kVA, and 10 kVA models only).

Dual input

Enables second input source to be connected to UPS bypass (230 V, 8 kVA, and 10 kVA models only).
