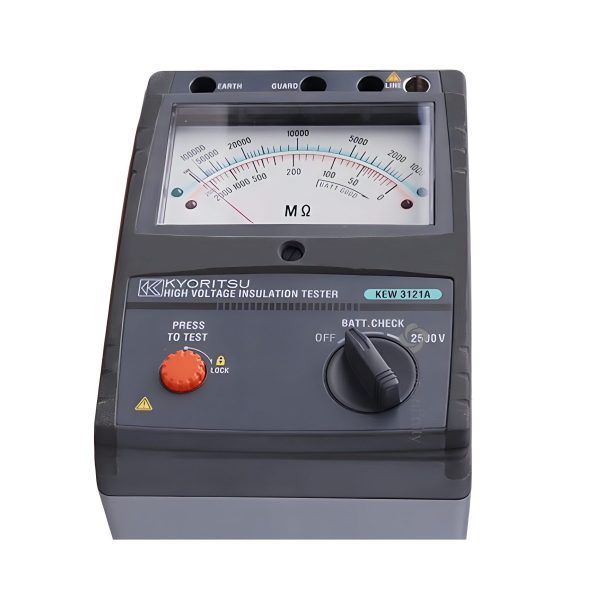

HIGH VOLTAGE INSULATION TESTER KYORITSU 3121A
Insulation Resistance HIGH VOLTAGE INSULATION TESTER KYORITSU 3121A
| DC Test Voltage | 2500V |
|---|---|
| Measuring ranges<br>(automatic change) | 2GΩ/100GΩ (Auto-ranging) |
| First effective measuring range | 0.1 – 50GΩ |
| Accuracy | ± 5% rdg |
| Other ranges accuracy | ±10% rdg or 0.5% of scale length |
General
| Power source | R6 (AA) (1.5V) × 8 |
|---|---|
| Dimensions | 200 (L) × 140 (W) × 80 (D) mm |
| Weight | approx. 1kg |
| Included Accessories | 7165A (Line probe) (3m) 7224A (Earth cord) (1.5m) 7225A (Guard code) (1.5m) 9158 (Hard case) R6 (AA) × 8 Instruction manual |
| Optional Accessories | 7168A (Line probe with aligator clip) 8019 (Hook type prod) 8324 (Adaptor for recorder) 7253 (Longer Line probe with alligator clip) (15m) |
