Keysight P9382B Streamline USB Vector Network Analyzer

Keysight P9382B – Streamline Vector Network Analyzer, 9 kHz to 9 GHz, 4-port

Overview

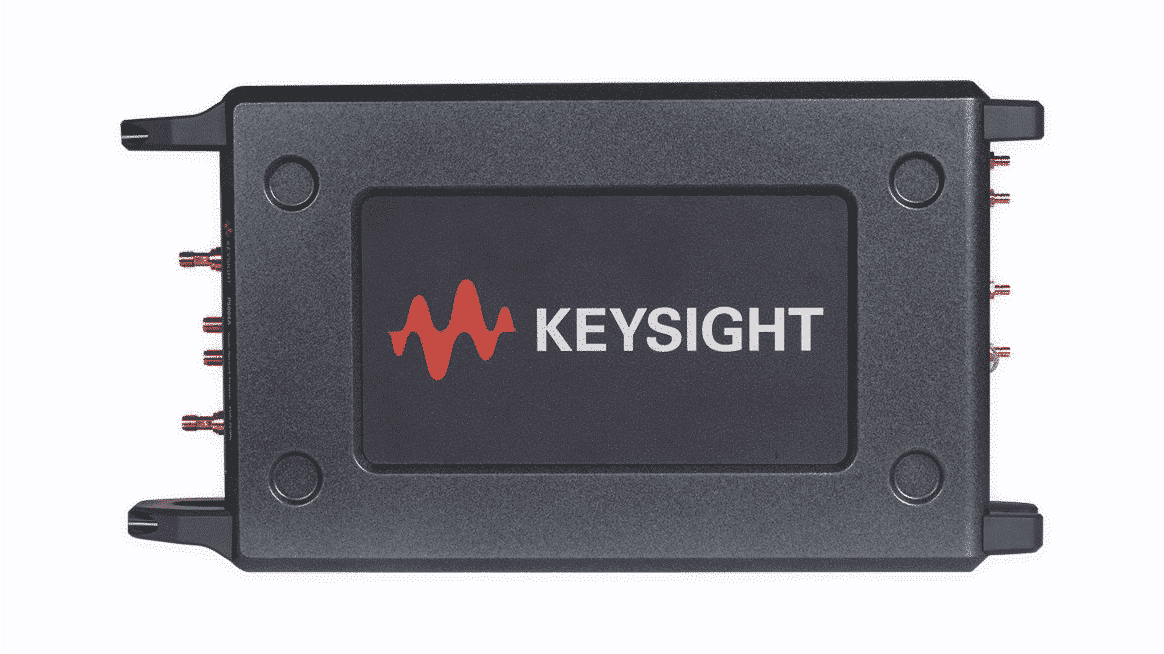

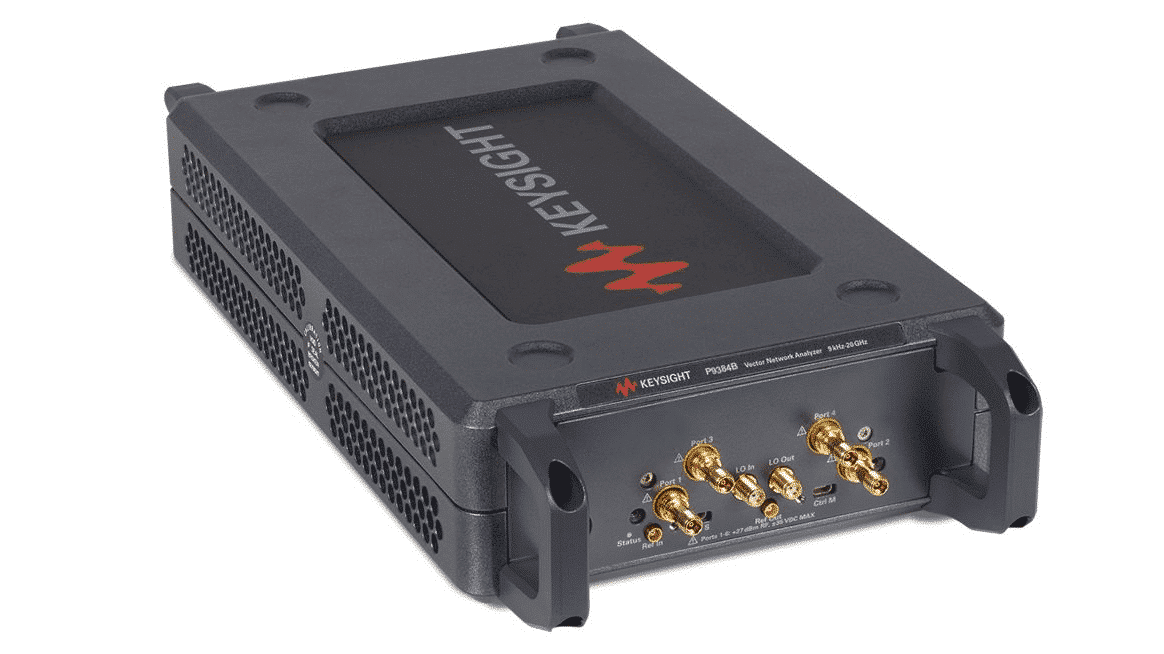

The Keysight P9382B is a compact, faceless USB-based vector network analyzer (VNA), designed to deliver full 4-port network analysis in a portable form factor. It supports frequencies from 9 kHz to 9 GHz, and connects via Thunderbolt 3 for high throughput and speed. This streamlined design dramatically reduces bench space without sacrificing performance, while offering the familiar GUI, SCPI commands, and measurement science shared with Keysight’s high-end VNAs.

Applications

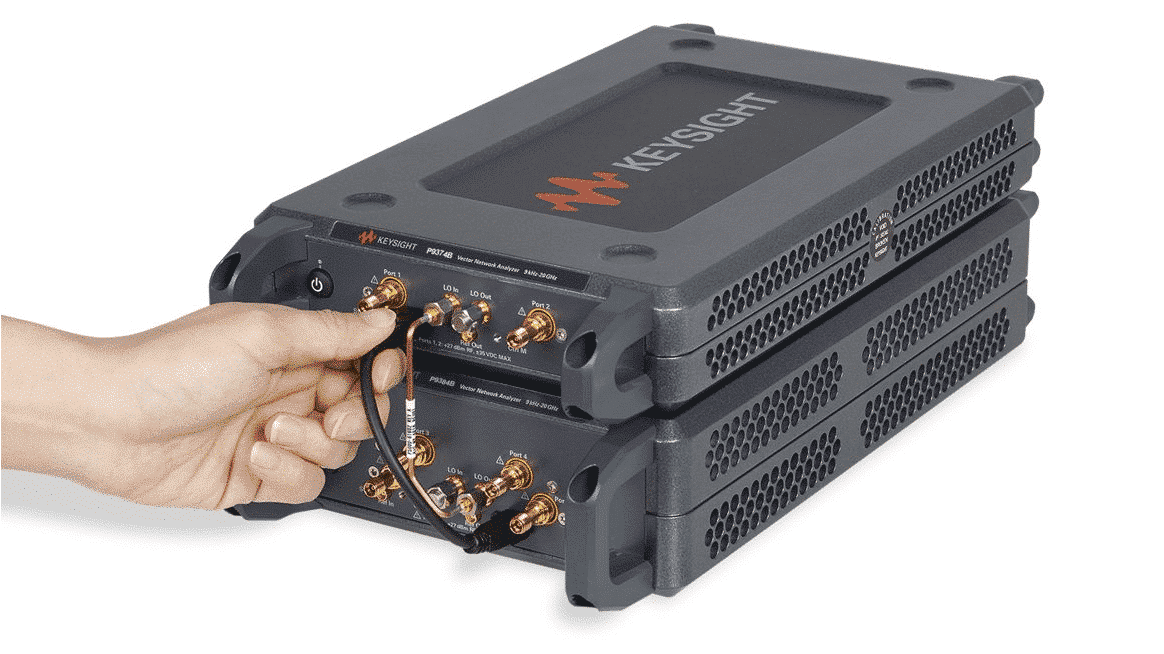

Ideal for R&D labs and manufacturing environments needing full 4-port measurements in a compact device. Supports cascading of multiple VNAs to expand test capabilities. Fast calibration using Keysight Electronic Calibration (ECal) modules ensures accuracy and efficiency.

Detailed Specifications

• Frequency Range: 9 kHz to 9 GHz (4-port)

• Port Count: 4-port configuration for full S-parameter analysis

• Interface: Thunderbolt 3 for fast data transfer and high throughput

• Measurement Performance: Equivalent measurement science and GUI as Keysight’s premium VNAs

• Calibration: Supports Electronic Calibration (ECal) modules for fast and accurate calibration

Integrated Features

• Provides full vector network analysis in a compact form

• Compatible with Keysight’s Streamline software platform and SCPI command set

Hardware & Interface

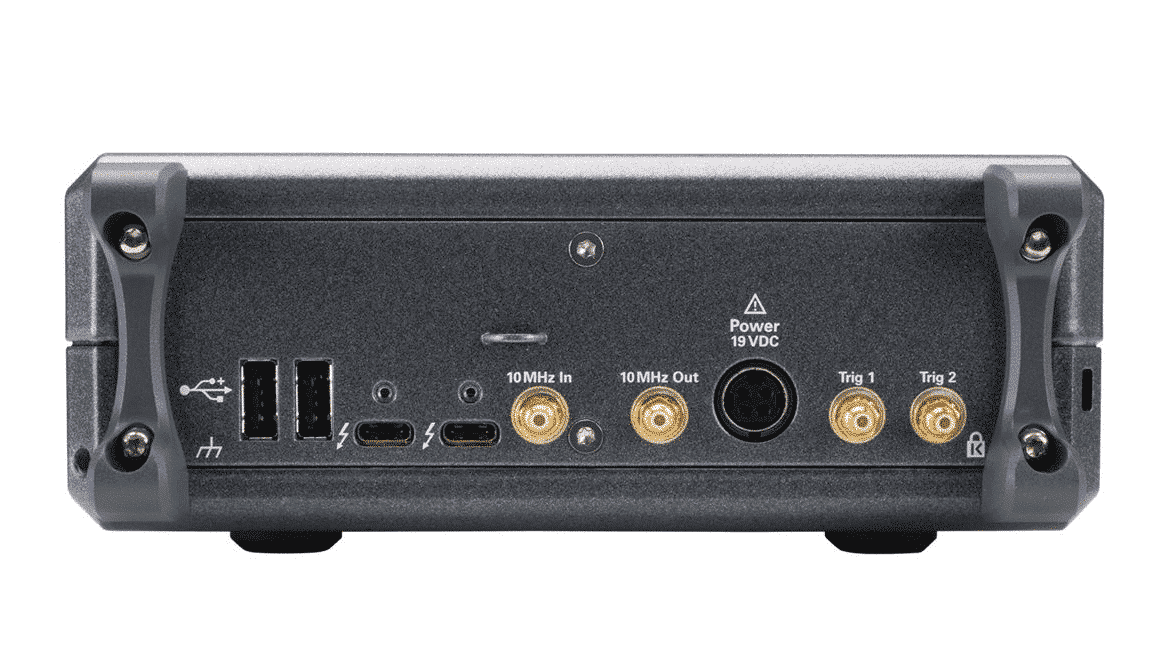

• Connection: Via Thunderbolt 3 to host PC — leverages PC’s CPU and GUI for control

Physical & Power Specs

• Compact size — greatly reduced footprint compared to bench VNAs

• Ideal for portable or shared environments
