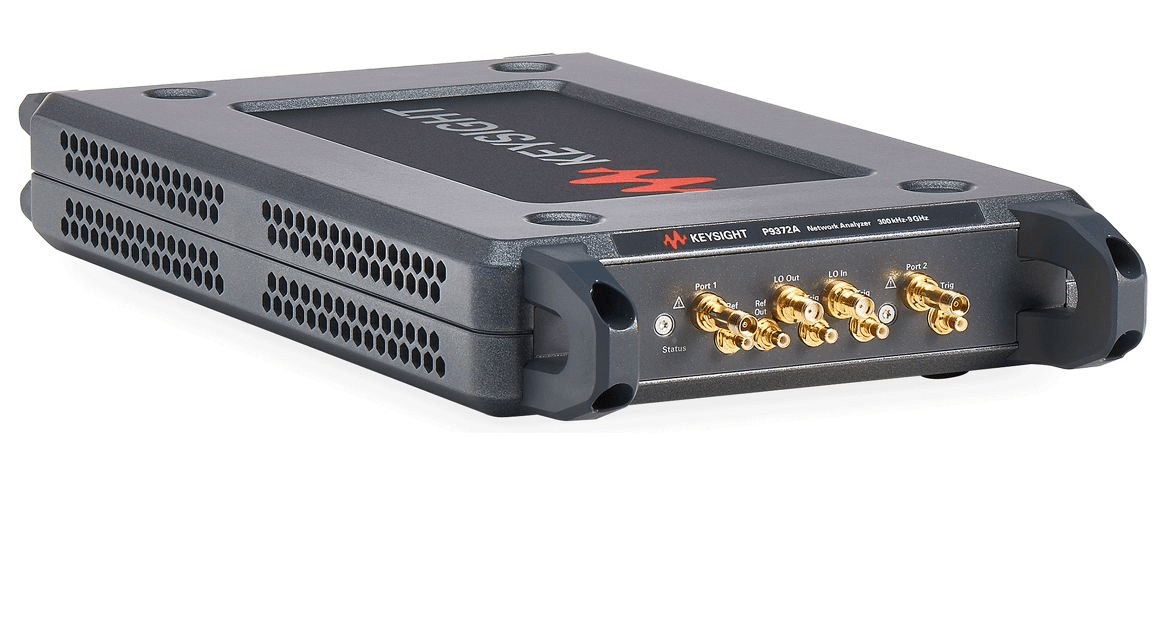

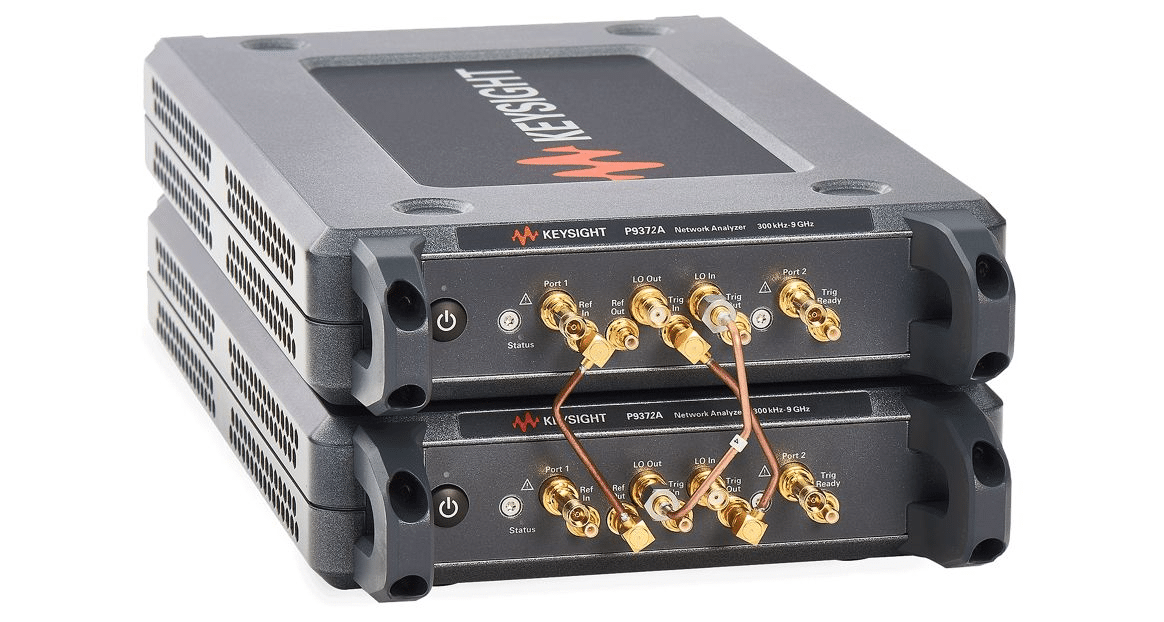

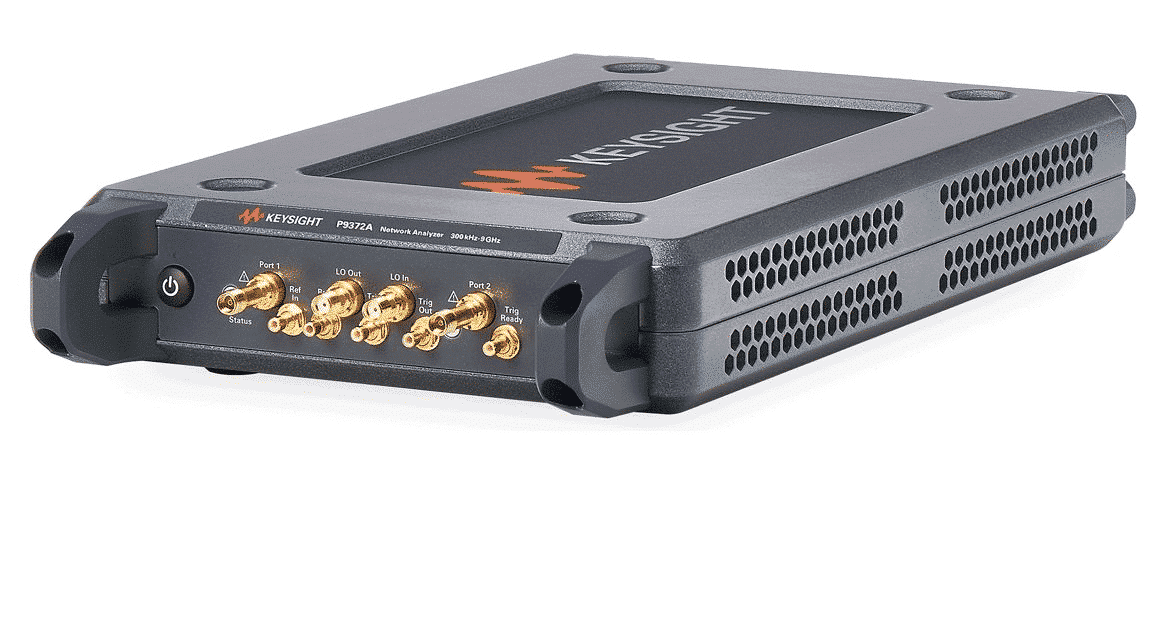

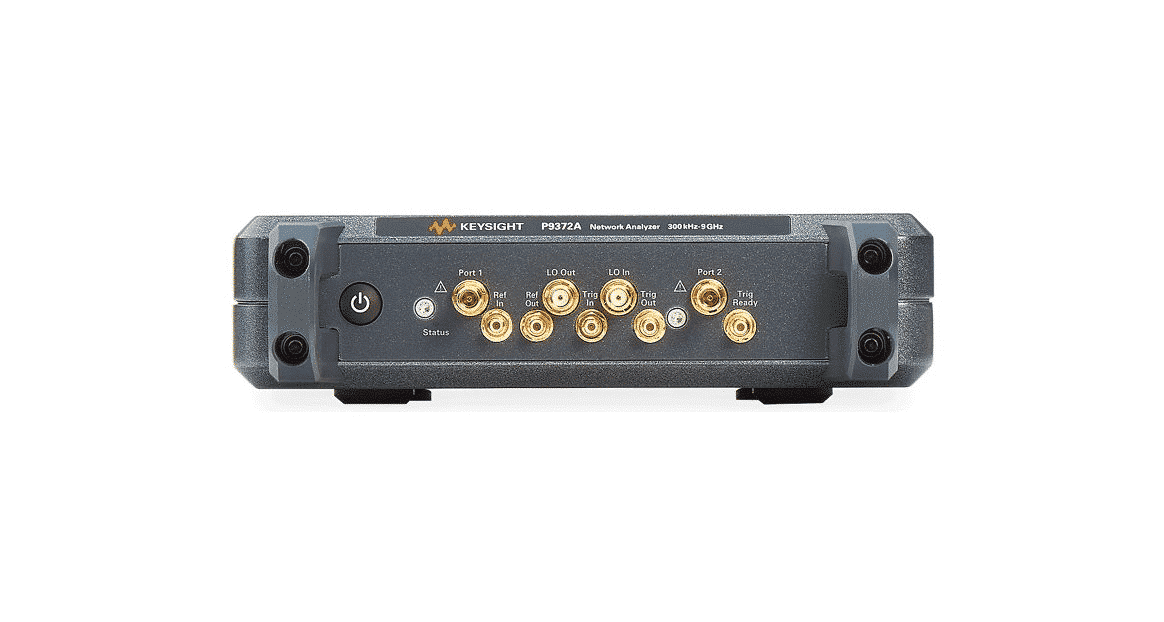

Keysight P9372A Streamline USB Vector Network Analyzer

Keysight P9372A Streamline USB Vector Network Analyzer, 9 GHz

Overview

The Keysight P9372A is a compact and affordable USB Vector Network Analyzer (VNA) designed for accurate RF testing up to 9 GHz. With its lightweight, faceless design and simple connectivity, it reduces test system size while delivering the same trusted measurement science as Keysight’s high-performance VNAs.

Applications & Product Line

• General RF and microwave component characterization

• Antenna design and verification

• Cable and connector testing

• Research, education, and production environments

• Ideal for engineers seeking portable, cost-effective VNA solutions

Technical Specifications

• Frequency Range: 300 kHz to 9 GHz

• Ports: 2-port standard, expandable up to 4 ports

• Dynamic Range: Comparable to high-performance Keysight VNAs

• Calibration: Supports all Electronic Calibration (ECal) modules

• Measurement Science: Same GUI, SCPI commands, and analysis features as advanced Keysight VNAs

Integrated Features

• Portable, USB-based design for flexible test setups

• Compatible with electronic calibration for quick setup

• Seamless integration into automated test systems

• Compact size to save bench and rack space

Hardware & Interfaces

• Connectivity: USB 3.0 interface for fast data transfer

• Included Accessories: Quick-start guide, USB 3.0 cable, external AC/DC adapter, power cord, calibration certificate

Physical & Power Specs

• Form Factor: Faceless, compact USB instrument

• Power: External AC/DC power adapter

• Design: Lightweight and portable for lab and field use
