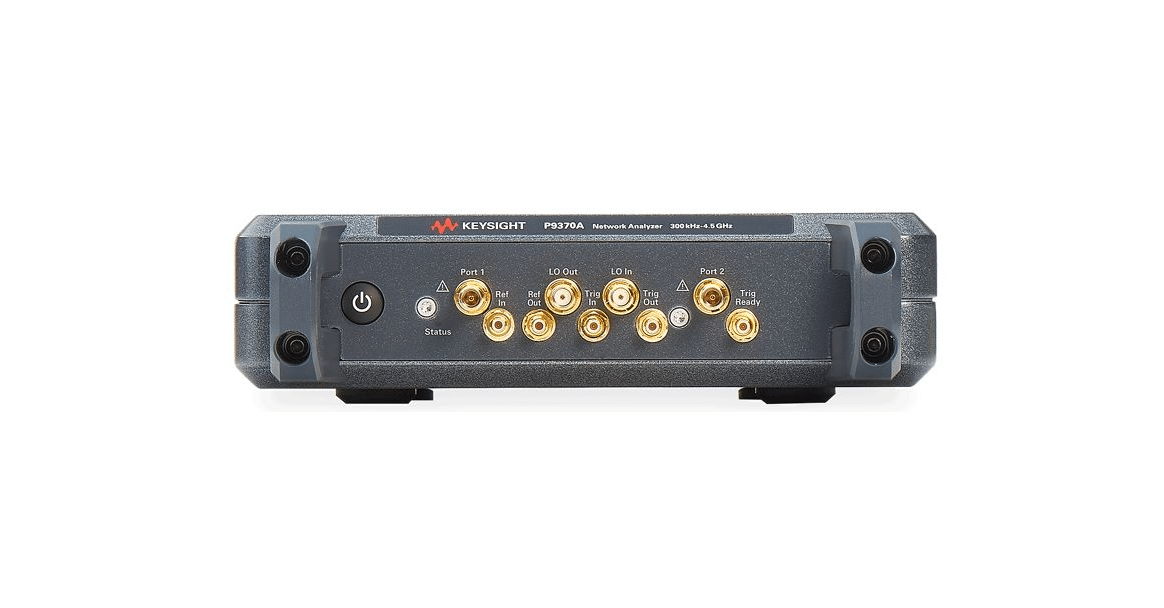

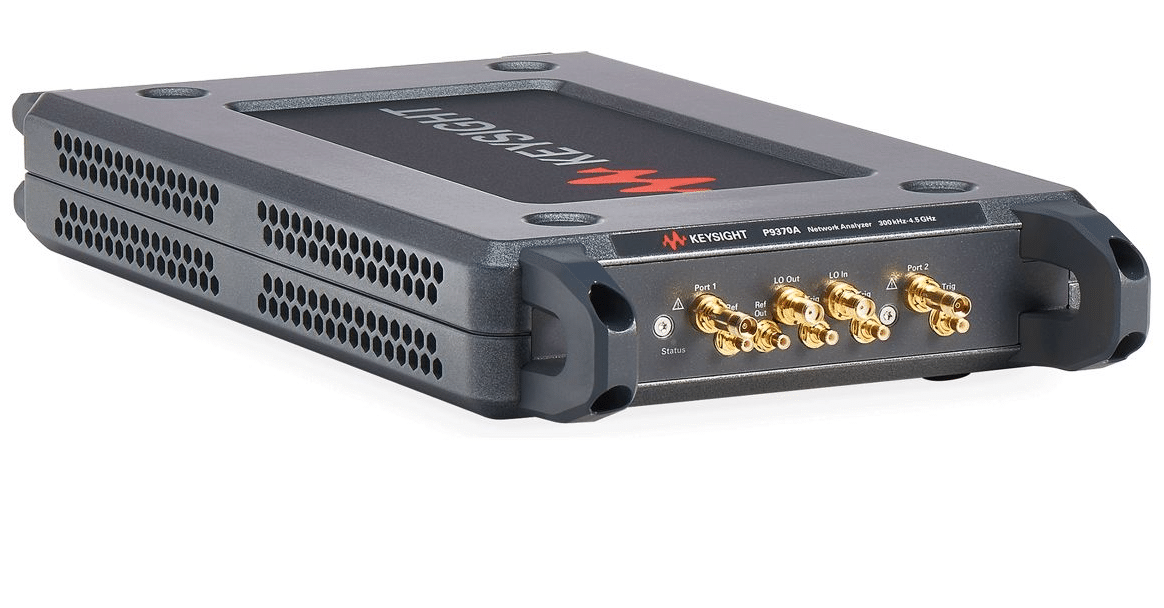

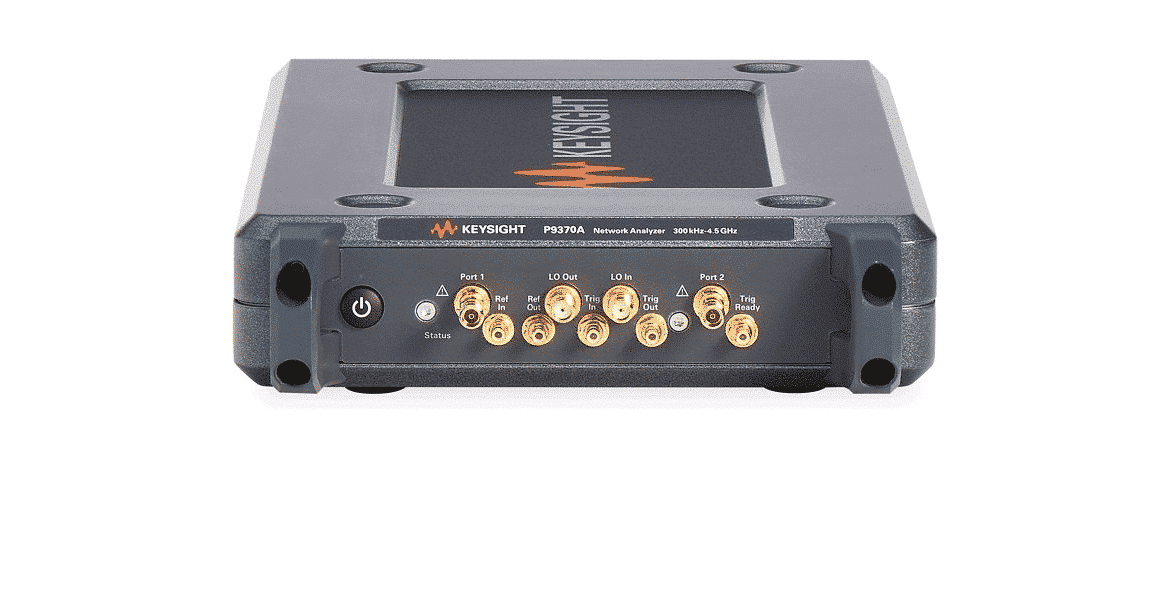

Keysight P9370A Streamline USB Vector Network Analyzer

Keysight P9370A – Streamline USB Vector Network Analyzer, 4.5 GHz

Overview

The Keysight P9370A is a compact and affordable 2-port USB Vector Network Analyzer (VNA) that delivers reliable performance up to 4.5 GHz. Designed for engineers and researchers, it provides efficient measurement capabilities in a portable, space-saving form factor.

Applications

Ideal for RF and microwave component testing, antenna characterization, education labs, and production environments requiring accurate S-parameter analysis.

Technical Specifications

• Frequency range: 300 kHz to 4.5 GHz

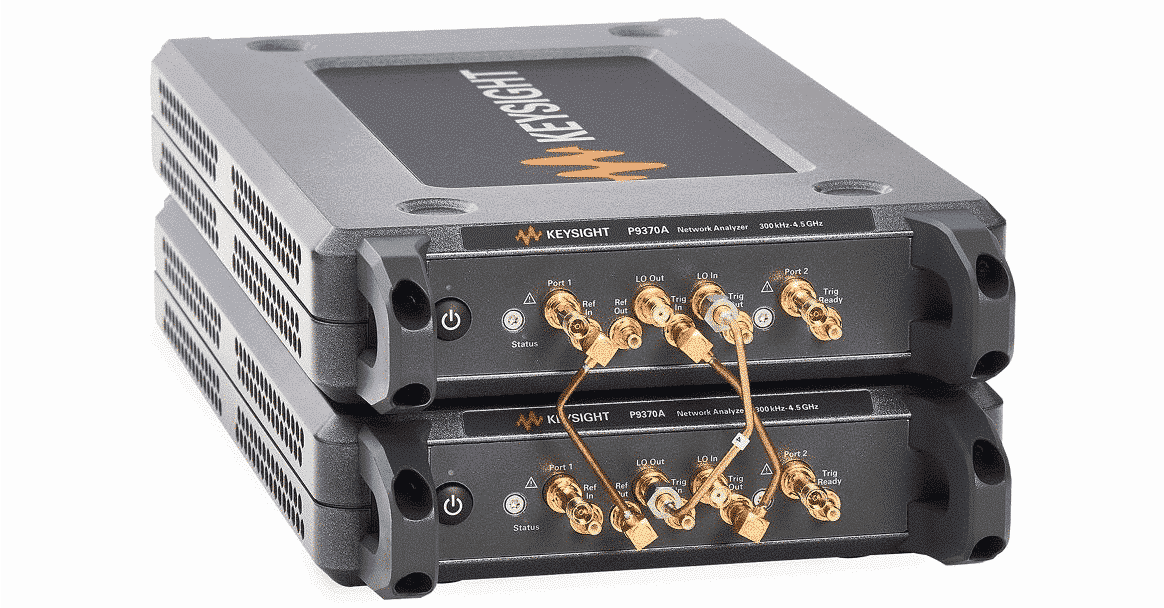

• Ports: 2 (expandable up to 4 ports via cascading)

• Form factor: Compact USB-based, faceless design

• Performance: Full two-port VNA capability

• Measurement consistency: Same GUI, SCPI commands, and measurement science as Keysight’s high-performance VNAs

• Calibration: Supports all electronic calibration (ECal) modules

Integrated Features

• Fast setup with USB 3.0 connectivity

• Compatible with advanced calibration kits

• Portable and easy-to-deploy design

Hardware & Interfaces

• USB 3.0 interface for high-speed connectivity

• External AC-DC power supply

• Supports seamless integration with Keysight PathWave software tools

Physical Specifications

• Lightweight and portable design

• Power options: External AC-DC adapter

• Included accessories: Quick-start guide, USB 3.0 cable, power supply, power cord, calibration certificate
