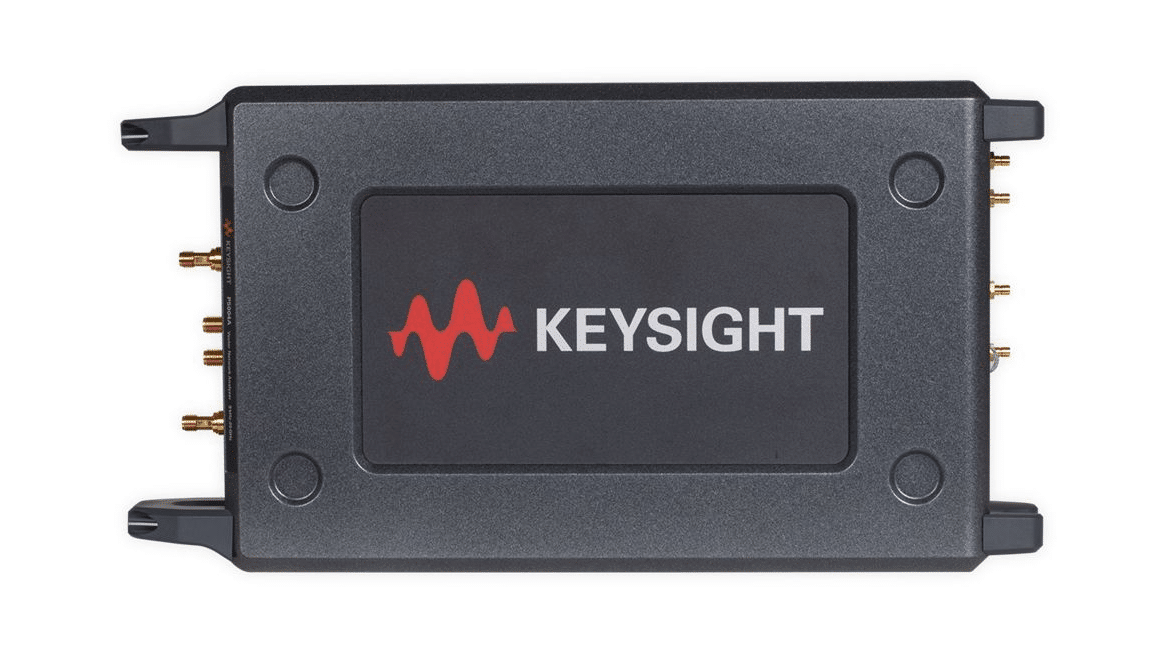

Keysight P9370B Streamline USB Vector Network Analyzer

Keysight P9370B – Streamline Vector Network Analyzer (VNA), 9 kHz to 4.5 GHz, 2-Port

Overview

The Keysight P9370B is a compact, Thunderbolt 3-compatible Vector Network Analyzer designed for full two-port measurements up to 4.5 GHz. It delivers premium Keysight measurement science in a portable, space-saving format.

Applications

Ideal for RF component testing—such as filters, amplifiers, cables, and antennas—this VNA suits applications in R&D, education, production testing, and portable field operations.

Technical Specifications

• Frequency range: 9 kHz to 4.5 GHz

• Ports: 2 (expandable with cascaded units)

• Interface: High-speed Thunderbolt 3 data connection

• Calibration: Supports Keysight’s Electronic Calibration (ECal) modules

• Provides the same GUI, SCPI commands, and measurement capabilities as high-performance Keysight VNAs

Integrated Features

• High data throughput via Thunderbolt 3

• Cascadable design for expanded port count

• Quick calibration support through ECal modules

Hardware & Interfaces

• Thunderbolt 3 connectivity

• External AC/DC power supply

• Comes with quick-start guide, power cable, and calibration certificate

Physical & Power Specs

• Slim, faceless form factor for minimal bench footprint

• Lightweight and portable for lab and field environments
