Keysight P9372B Streamline USB Vector Network Analyzer

Keysight P9372B – Streamline Vector Network Analyzer, 9 kHz to 9 GHz, 2-Port

Overview
The Keysight P9372B is a compact, Thunderbolt 3-based Vector Network Analyzer (VNA) offering full two-port measurements up to 9 GHz. It combines trusted Keysight measurement science with a portable form factor to minimize test system footprint.

Applications
Designed for RF/microwave component testing, antenna and cable verification, R&D laboratories, production lines, and field use.

Technical Specifications

• Frequency range: 9 kHz to 9 GHz

• Ports: 2 (expandable when cascading multiple VNAs)

• Interface: Thunderbolt 3 for high-speed data transfer

• Calibration: Compatible with Keysight Electronic Calibration (ECal) modules

• Same GUI and measurement consistency as Keysight high-performance VNAs

Integrated Features

• High throughput with Thunderbolt 3 connectivity

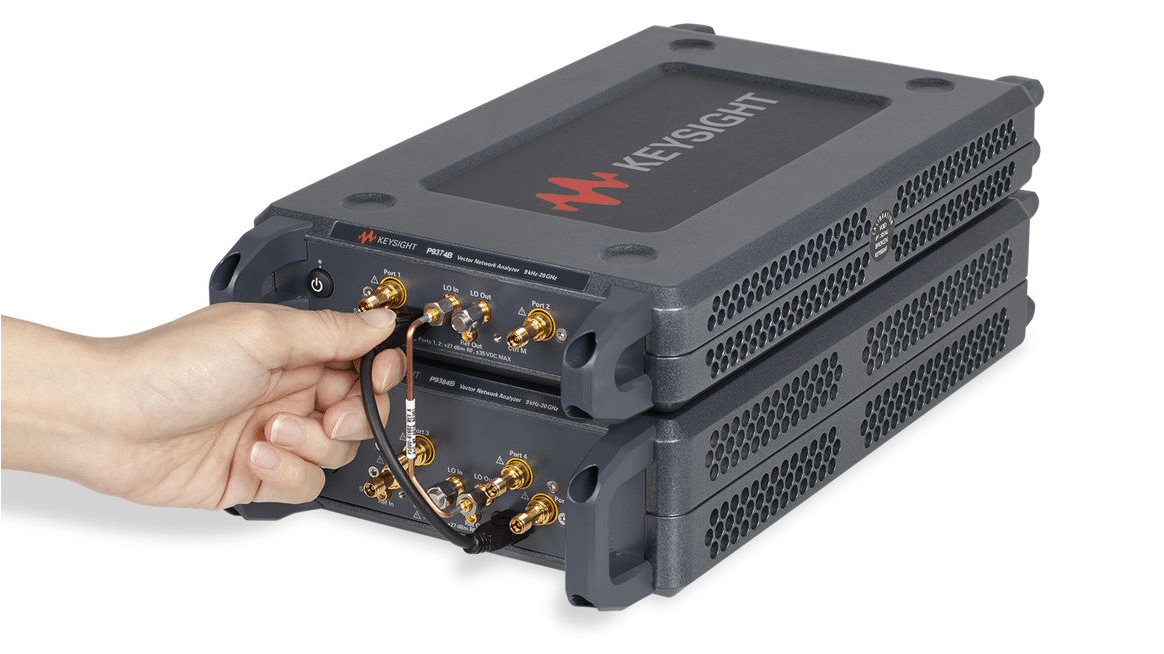

• Easy cascading for multi-port test setups

• Portable design for flexible sharing across teams

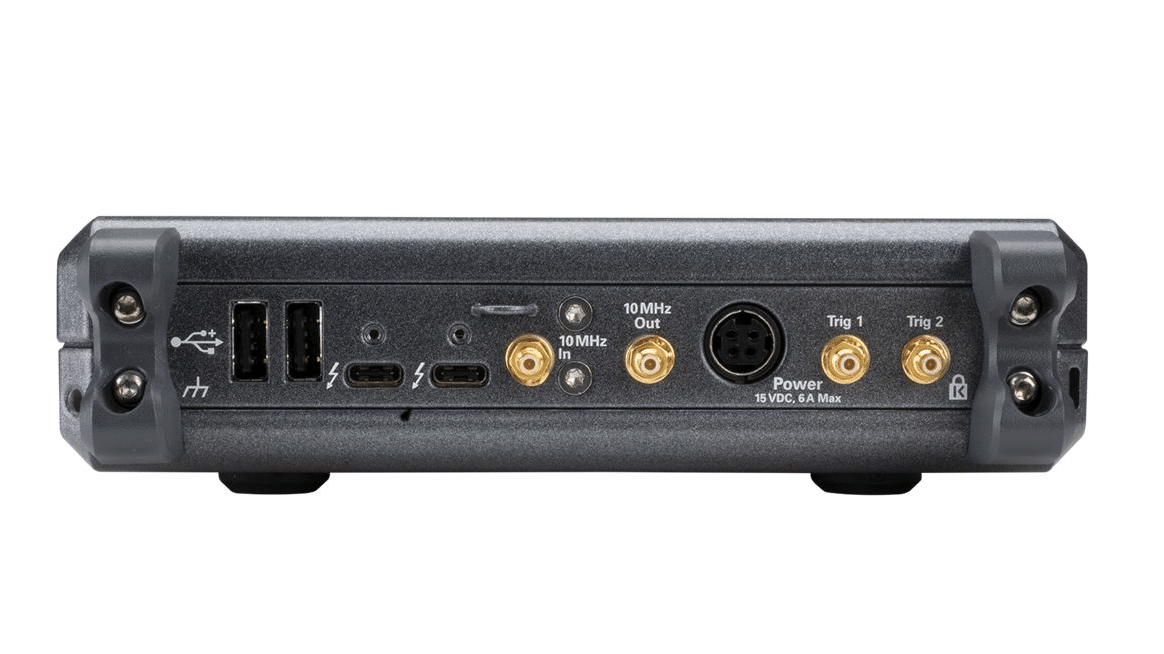

Hardware & Interfaces

• Thunderbolt 3 connection

• External AC/DC power supply

• Includes quick-start guide, power cords, and calibration certificate

Physical & Power Specs

• Compact, faceless design for space efficiency

• Lightweight and portable for lab or field testing
