specifications Kanomax 6715G: Tabmaster Airflow Capture Hood Model
Range: 23 to 2530 cfm (40 to 4300 m3/h)
Accuracy: ±3% of readings ± 8 m3/h
Resolution: 1 m3/h
— Air velocity
Range: 0.15 to 40 m/s (with pitot tube); 0.15 to 15 m/s (with Velocity Matrix)
Accuracy: +/- 3% of reading +/- 0.05m/s
Resolution: 0.01 m/s (<9.99m/s), 0.12 m/s (>10.0m/s)
— Temperature
Range: -32 to 122°F (0 to 50°C)
Accuracy: +/- 1.0°F (0.5°C)
Resolution: 0.1°C
— Humidity
Range: 0 to 100 %RH
Accuracy: +/- 3.0%RH
Resolution: 0.1%RH
Interface: USB, Bluetooth®
Datalogging: Up to 8,000 records
Power Supply: AA batteries or AC Adapter
Hood: 2 x 2 ft (610 x 610 mm), 1 x 4 ft (305 x 1220 mm)
Dimensions: 2 x 4 ft (610 x 1220 mm), 3 x 2 ft (915 x 610 mm), 3 x 3 ft (915 x 915 mm), 500 x 500 mm
Weight: 7.9 lbs (3.6 kg)
Dimensions: Meter unit: 3.4 x 7.4 x 1.6 inches (88 x 188 x 41 mm)
Warranty: 1 year

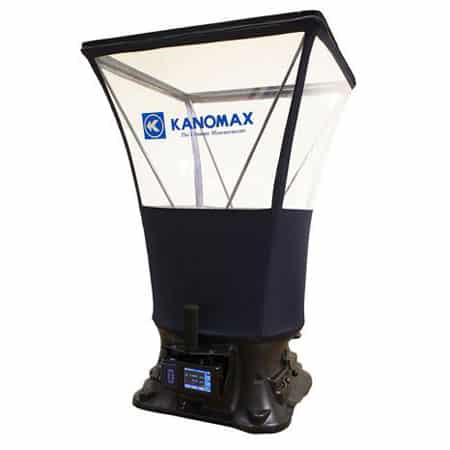

Introduction Kanomax 6715G
Kanomax TABmasterTM is the perfect tool for accurate supply and returns airflow measurements. Interchangeable hoods make it a snap to sample the air for any duct size. The unit is lightweight and easy to handle. The full-color screen can be tilted so it’s at the optimal viewing angle at any height.

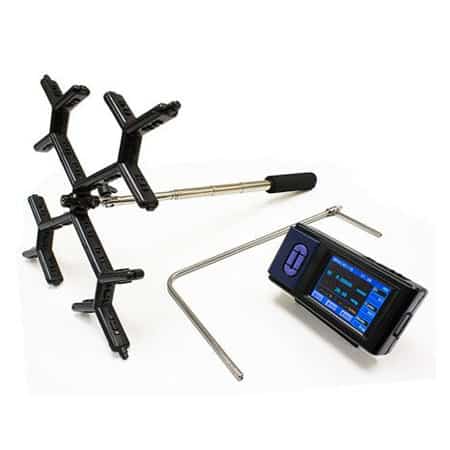

Model 6715 equips a removable handheld micromanometer with Bluetooth® wireless capability.
Features
– 23 to 2530 cfm (40 to 4300 m3/h) measuring range
– Simultaneously measures and displays airflow, temperature, and humidity
– Displays the direction of the airflow as well as the velocity
– Removable handheld micromanometer with Bluetooth® wireless capability (Model 6715)
– Advanced storage feature allows you to store multiple measurements under a single ID#
– Lightweight design makes a one-person setup and uses easy
– Six hood sizes make it easy to pick one that fits your duct size
– Built-in back pressure compensation ensures accuracy for large volumetric flow measurements
– Temperature compensation sensor increases accuracy for all airflow measurements
– Competitive, economic price with professional-grade features
– Full-color display will tilt feature is visible at any angle
– Includes: Standard hood, carrying case, AA batteries, user manual, communication cable for PC, PC software, and calibration certificate
